H5350
Condential 2-4
2-5 Disassemble Top
Shielding

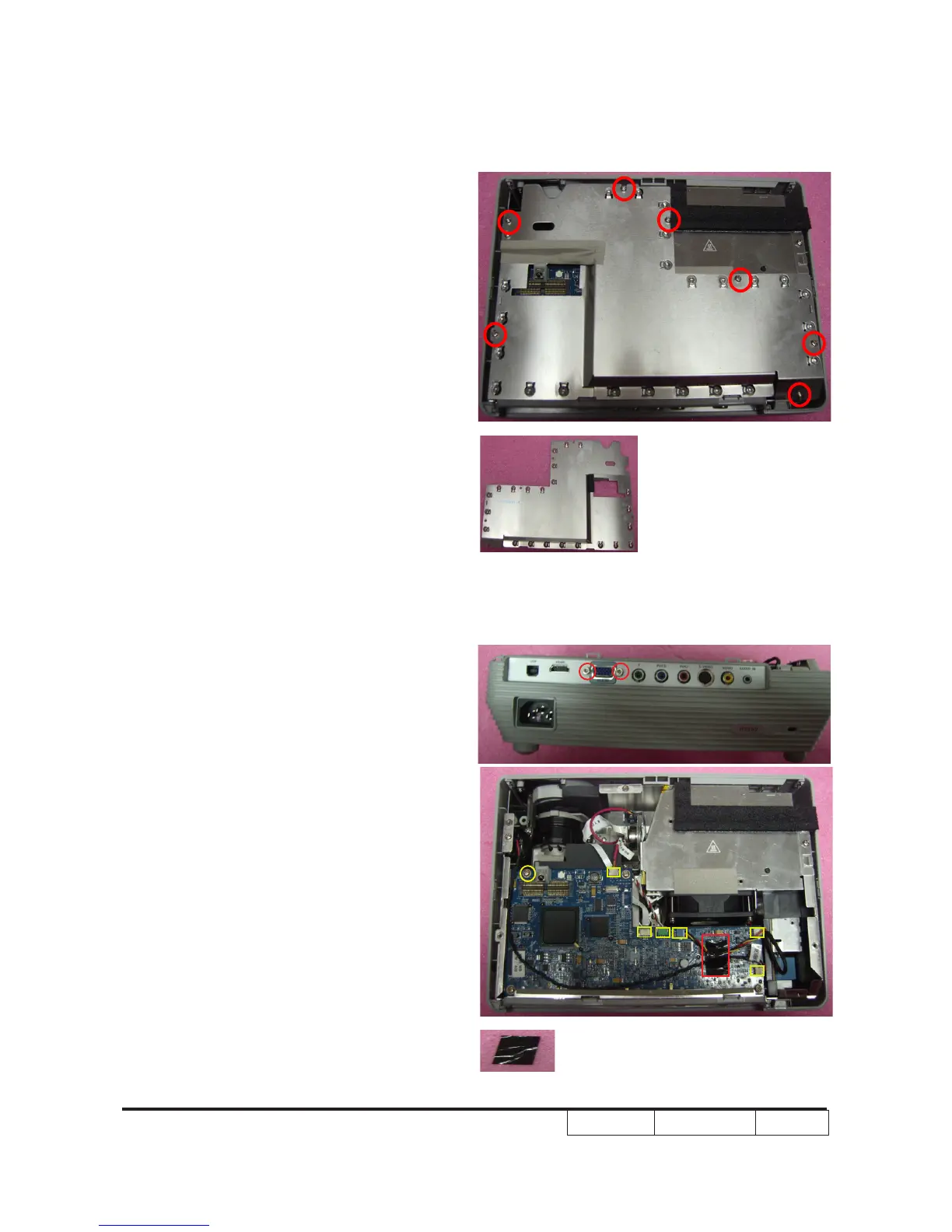

1. Unscrew 7 screws on Top Shielding
2. Disassemble Top Shielding
2-6 Disassemble Main Board
Module & I/O Cover
Module
1. Unscrew 2 hex screws
2. Tear a tape
3. Unscrew 1 screw and 6 connectors on
Main Board Module
Top Shielding
