H5350
Condential 2-6

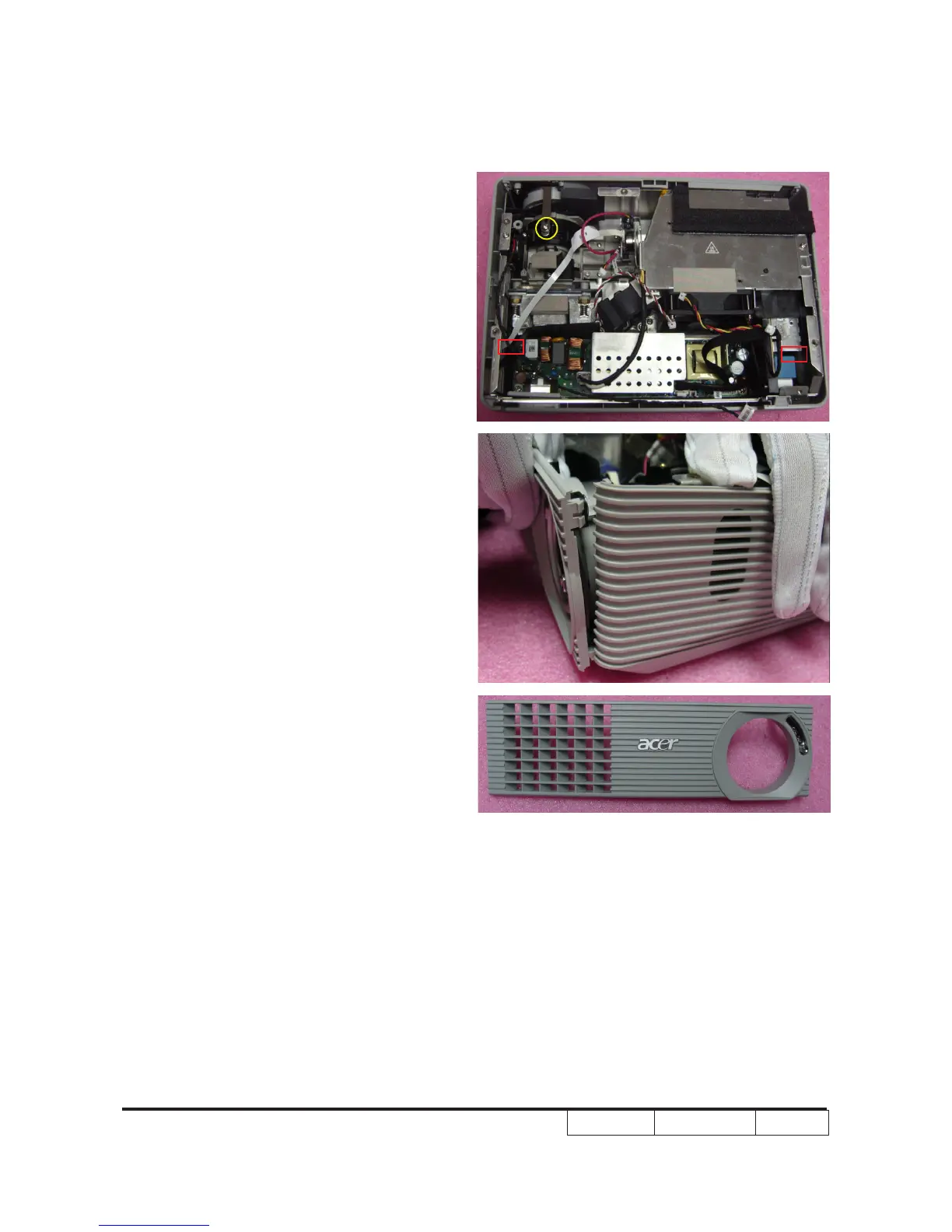

2-7 Disassemble Front Cover
Module
1. Unscrew 1 screw(As yellow circle)
2. Press 1 tenon on each side and then pull
up the Front Cover Module
3. Disassemble Front Cover Module
Front Cover Module
