1.5 CPU Installtion1.5 CPU Installtion
1.5 CPU Installtion1.5 CPU Installtion
1.5 CPU Installtion
USB1
COM1
6A815EP1
not onboard
VGA
AGP1
Speaker out
Line in
MIC in
Printer
IR
FAN1
JP6
FAN3
GAME1
Intel
Intel
PCI SLOT2
PCI SLOT1
PCI SLOT3
PCI SLOT4
PCI SLOT5
CNR SLOT
J7
1
FAN2
JP4
BIOS
I/O CHIP
LAN CHIP
JP7
LED1
VGA
Optional

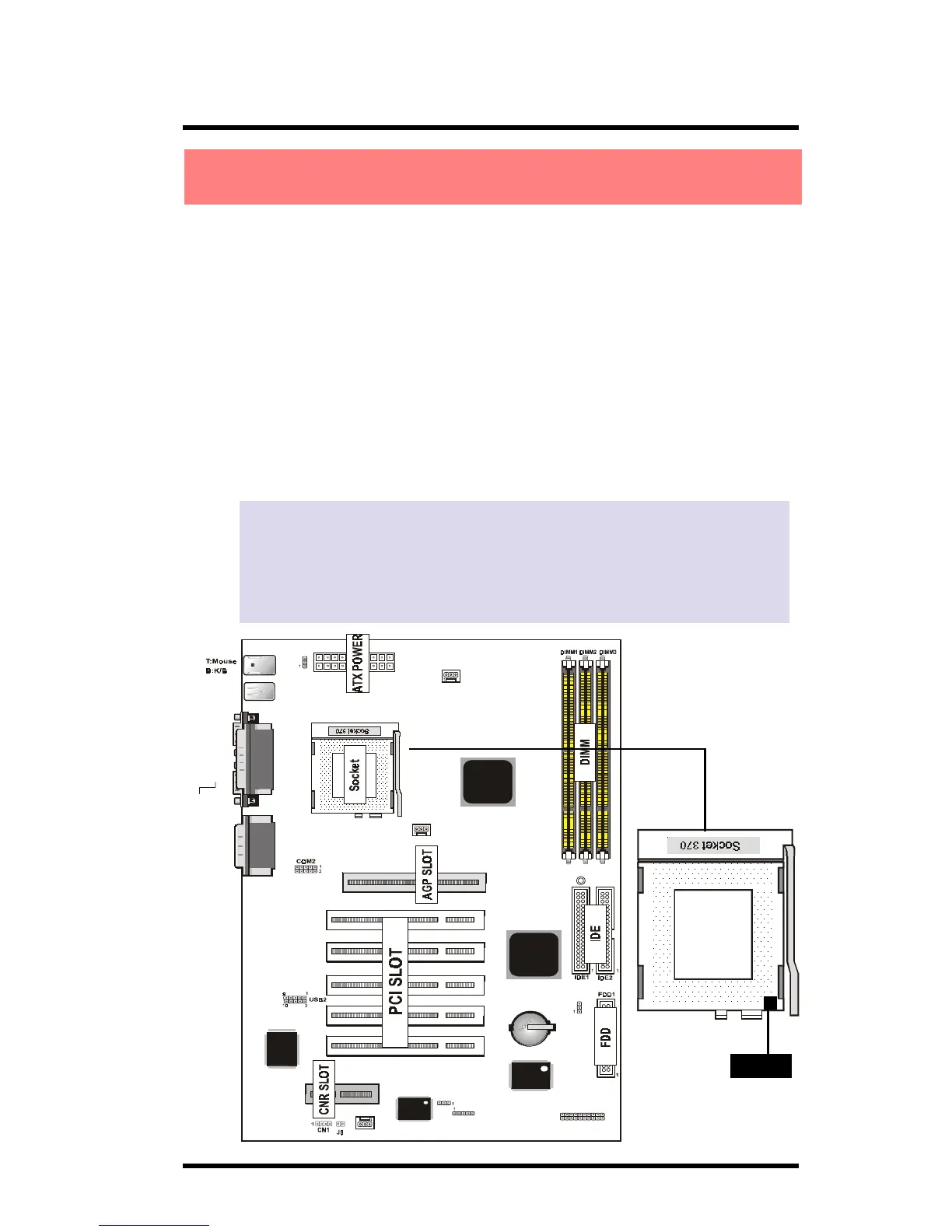

The motherboard operates with Socket 370 for Intel PIII
TM
processor. The CPU should always has a Heat Sink and cooling fan
attached to prevent overheating.
CPU Installation Procedure: Socket 370
1. Pull the lever sideways away from the socket then raise
the lever to a 90-degree angle.
2. Locate Pin 1 in the socket and look for the white dot or
cut edge in the CPU. Match Pin 1 with the white dot or
cut edge then insert the CPU.
3. Press the lever down to complete installation.
4. Make sure the spec of the heatsink is good enough.
5. Please lock the fan on CPU very carefully, or you
will damage the resistor array even circuit line
on the mainboard.
Notch
