Acorp 6A815E1 - 1.7.7 Front Panel Connector

1-141-14
1-141-14
1-14
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn
USB1
COM1
6A815EP1
not onboard
VGA
AGP1
Speaker out
Line in
MIC in
Printer
IR
FAN1
JP6
FAN3
GAME1
Intel
Intel
PCI SLOT2
PCI SLOT1
PCI SLOT3
PCI SLOT4
PCI SLOT5
CNR SLOT
J7
1
FAN2
JP4
BIOS
I/O CHIP
LAN CHIP
JP7
LED1
VGA
Optional

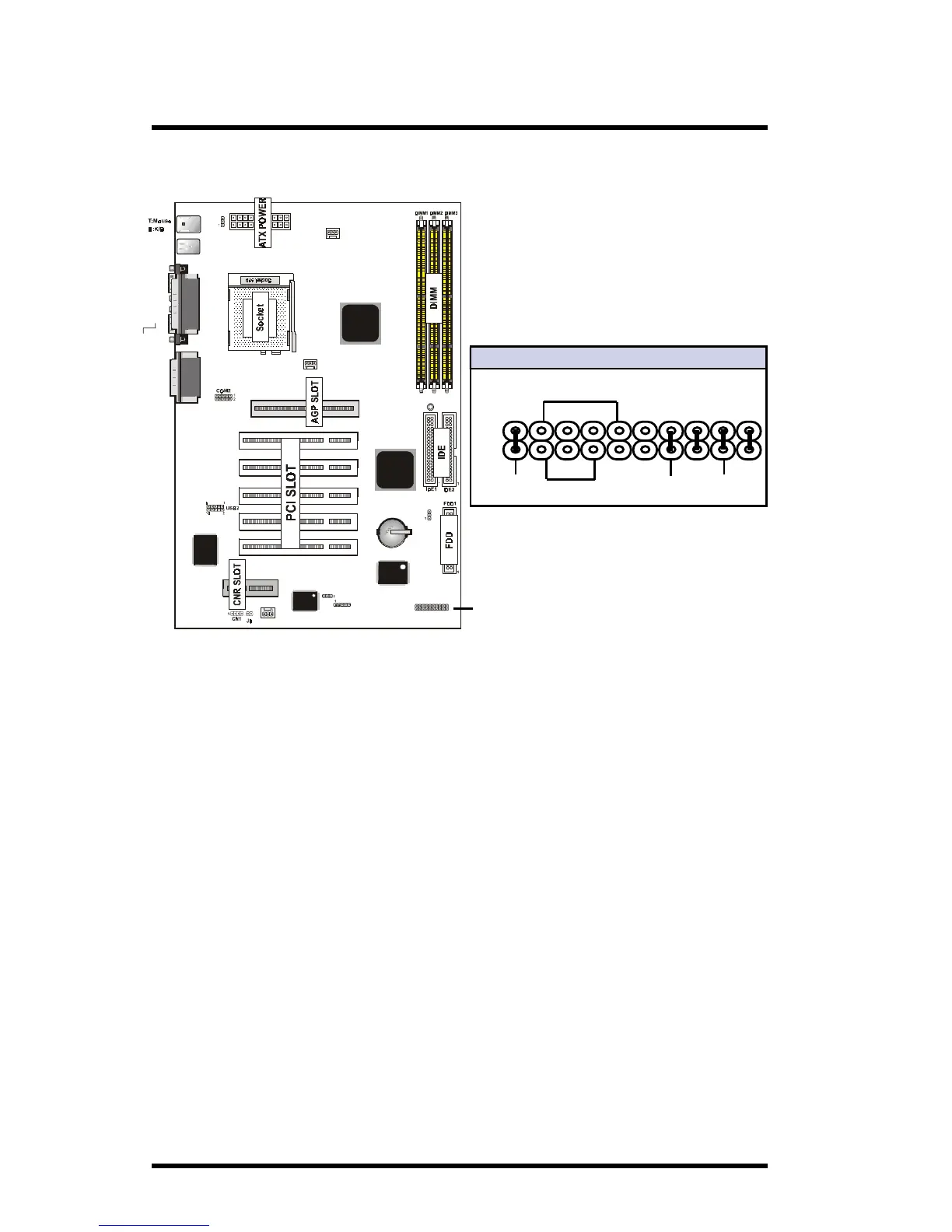

1.7.7 Front Panel Connector: J7
J7
SPEAK
PW_BN
RST
HD_LED
PW_LED
+
+
+
1
2
PANEL Connector
ATX Power Switch (PWBN)
The system power is controlled by a momentary switch
connected to this lead. Pushing the button once will switch
the system ON. The system power LED lights when the
system's power is on .
Speaker Connector (SPEAK)
An offboard speaker can be installed onto the motherboard as a
manufacturing option.An offboard speaker can be connected to
the motherboard at the front pannel connector. The speaker
(onboard or offboard) provides error beep code information
during the Power Self-Test when the computer cannot use the
video interface. The speaker is not connected to the audio
subsystem and does not receive output from the audio subsystem.
Power LED Lead (PWLED)
The system Power LED lights when the system power is on.
