1.7 Connectors & Jumpers Setting1.7 Connectors & Jumpers Setting
1.7 Connectors & Jumpers Setting1.7 Connectors & Jumpers Setting
1.7 Connectors & Jumpers Setting

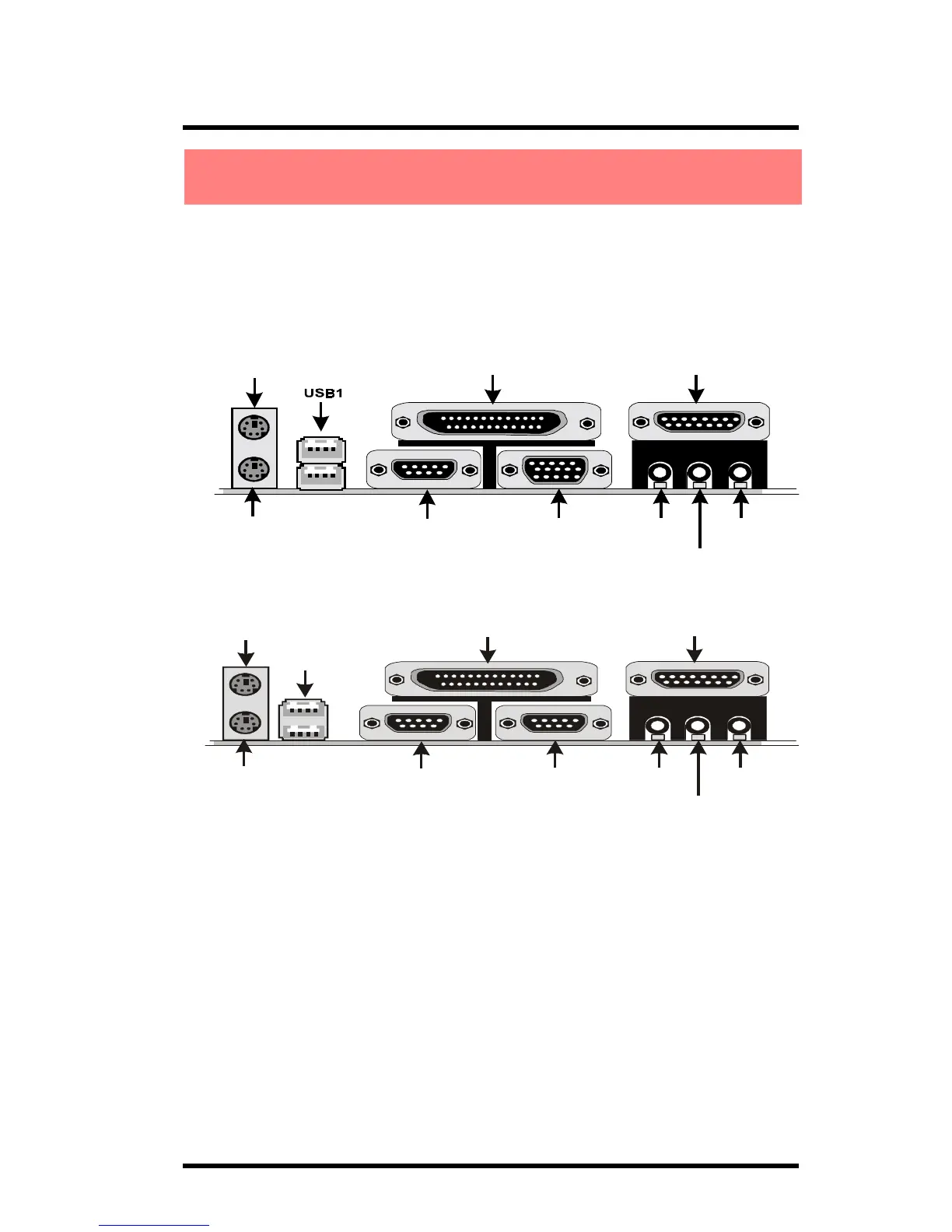

1.7.1 Back Panel I/O Connectors
The motherboard provides the following back panel
connectors:
PS/2 Keyboard
(6-pin Female)
Serial Port
(
9-pin Male
)
COM1
VGA
SPEAKER
MIC
LINE IN
PS/2 Mouse
Parallel
(
Printer
)
Port
(25-pin Female)
MIDI/
(
GAME
)
Port
(15-pin Female)
PS/2 Keyboard
(6-pin Female)
Serial
Port(9-pin
Male)
COM1
COM2
SPEAKER
MIC
LINE
IN
PS/2 Mouse
USB1
Parallel
(Printer)
Port
(25-pin Female)
MIDI/(GAME)
Port
(15-pin Female)
(Only support by 6A815EP1 motherboard)
(Only support by 6A815E1 motherboard)
1.7.1.1 PS/2 Mouse / Keyboard CONN.
The motherboard provides a standard PS/2 mouse / Keyboard
mini DIN connector for attaching a PS/2 mouse. You can
plug a PS/2 mouse / Keyboard directly into this connector.
