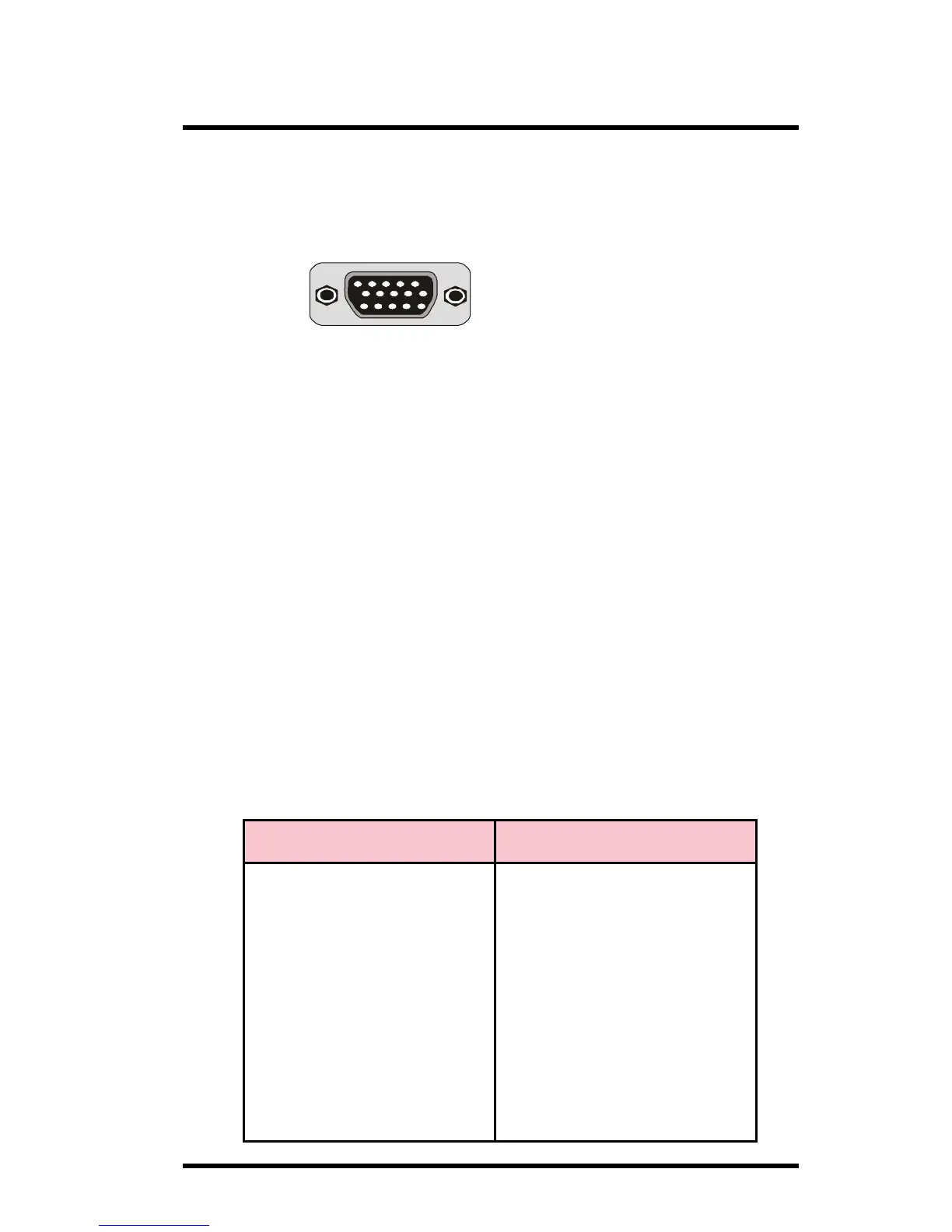

1.7.1.5 VGA Interface Connector: VGA (15 Pin)

(Only support by 6A815E1 motherboard)

This connector is for output to VGA-compatible devices.

1.7.1.6 Joystick / Midi Connector

You can connect a joystick or game pad to this connector.

1.7.1.7 Audio Port Connectors

Speaker out is a connector for Speakers or Headphones. Line

in is used for external CD player, Tape player, or other audio

devices. Mic is a connector for the microphones.

1.7.2 ATX Power Connector: ATX

This connector supports the power button on-board. Using

the ATX power supply, functions such as Modem Ring Wake-

Up and Soft Power Off are supported on this motherboard .

This power connector supports instant power-on

functionality, which means that the system will boot up

instantly when the power connector is inserted on the board.

VGA

Pin ATX Signal Pin ATX Signal

1 3.3V 11 3.3V

2 3.3V 12 -12V

3 GND 13 GND

4 5V 14 PS-ON

5 GND 15 GND

6 5V 16 GND

7 GND 17 GND

8 PW-OK 18 -5V

9 5V_SB 19 5V

10 12V 20 5V
