7 Medical device description
7.1 Screen of the medical device

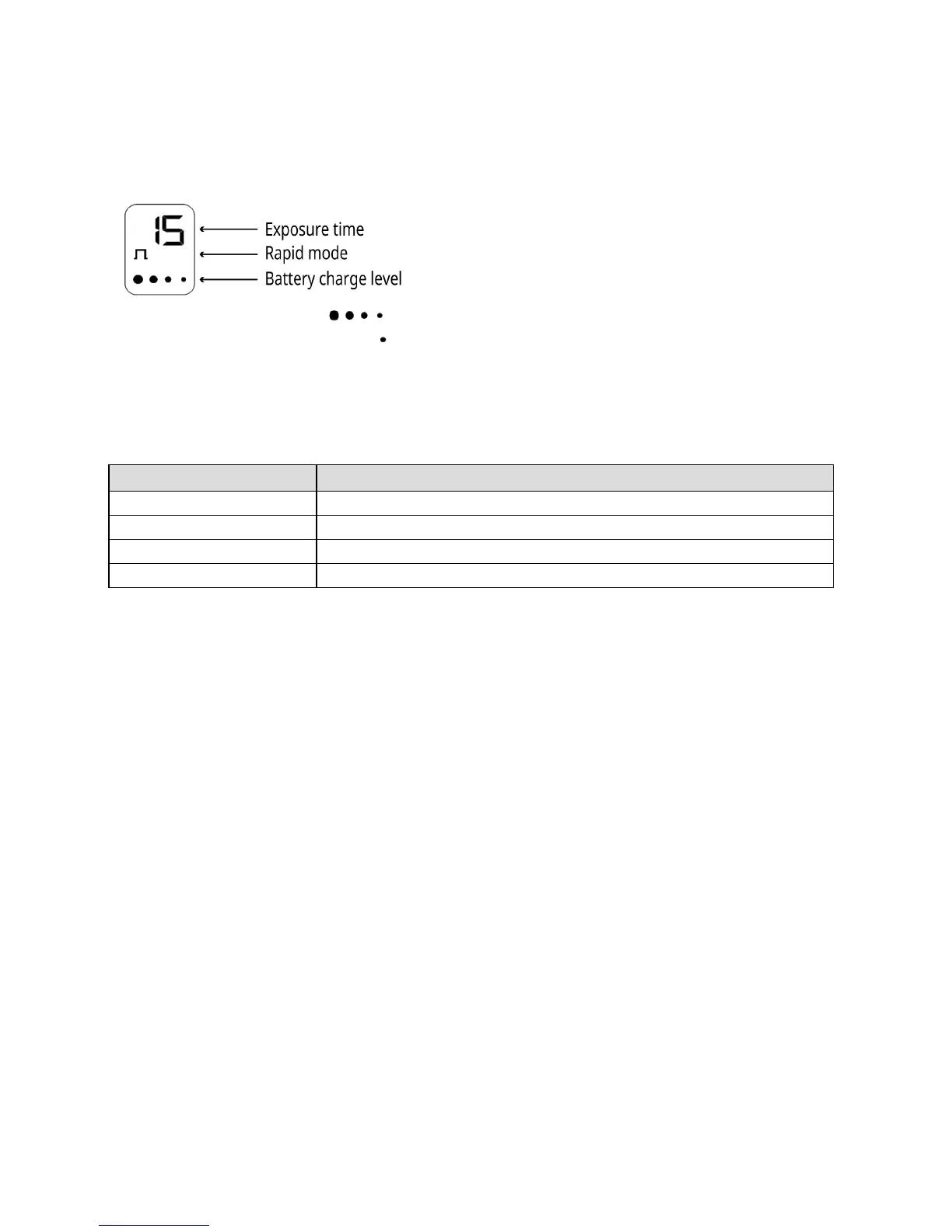

The MINILED SUPERCHARGED has a backlit LCD screen which displays information about the device condition for the
user:
Four battery charge level indicators are shown to signal that the battery is fully charged.
When the last battery charge level indicator is shown and two beeps sound, charge the battery. About 500 seconds
of polymerisation remaining.
When the battery is completely flat, the LCD screen displays the message “Lb” (Low battery) and no longer displays any
round pictograms, the handpiece beeps four times and the light indicator turns red.
7.2 Light indicator
Colour Meaning
Flashing blue The battery is charging
Fixed blue Charge fully completed
Red Power measured is insufficient for required operation
Green Power measured is sufficient
Charging base light indicator
7.3 MINILED SUPERCHARGED
The MINILED can only be used with the following accessories:
l Opalescent optical guide, 45° curve, 7.5 mm
l Opalescent optical guide, 45° curve, 5.5 mm
l Protection plug
l Rigid protection shield
l Charging base and mains adapter
The protection plug is designed to prevent any products from infiltrating the handpiece that may damage its
electronics, the connector or the LEDs. The protection plug must be installed when the handpiece is being cleaned. An
insulating ring protects the battery connectors.
7.4 Base
The MINILED charging base comprises a power tester. This is used to test correct operation of the MINILED.
The charging base comprises a handpiece holder on which the handpiece can be placed before and after use.
7.5 Operating mode
Rapid mode activates maximum power of the MINILED for the selected exposure time.
The first pulsed mode (05 is displayed) activates maximum power of the MINILED in five successive bursts lasting 1
second at 250ms intervals.
The second pulsed mode (10 is displayed) activates maximum power of the MINILED in ten successive bursts lasting 1
second at 250ms intervals.
The first progressive mode (09 is displayed) initiates a gradual rise in power lasting 6 seconds followed by 3 seconds at
full power.
The second progressive mode (15 is displayed) initiates a gradual rise in power lasting 10 seconds followed by 5
seconds at full power.
