Step 2: Prepare the Conduit Gland and Flex Conduit

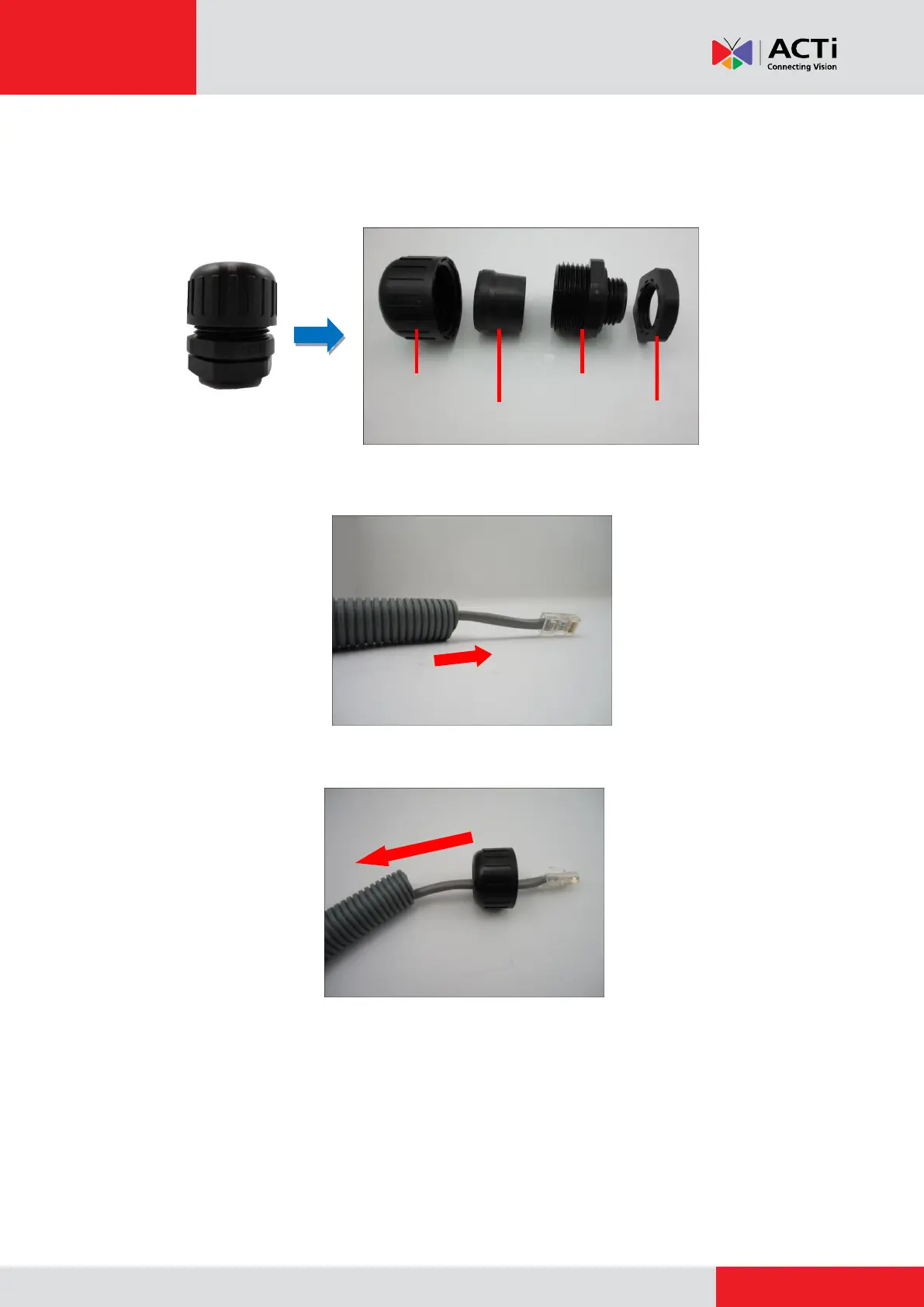

1. Disassemble the bundled conduit gland as shown below.
2. Pull the Ethernet cable through the flex conduit.
3. Insert the clamping nut through the flex conduit.
Clamping Nut
Sealing Insert
Lock Nut
