APPLIANCE DESCRIPTION

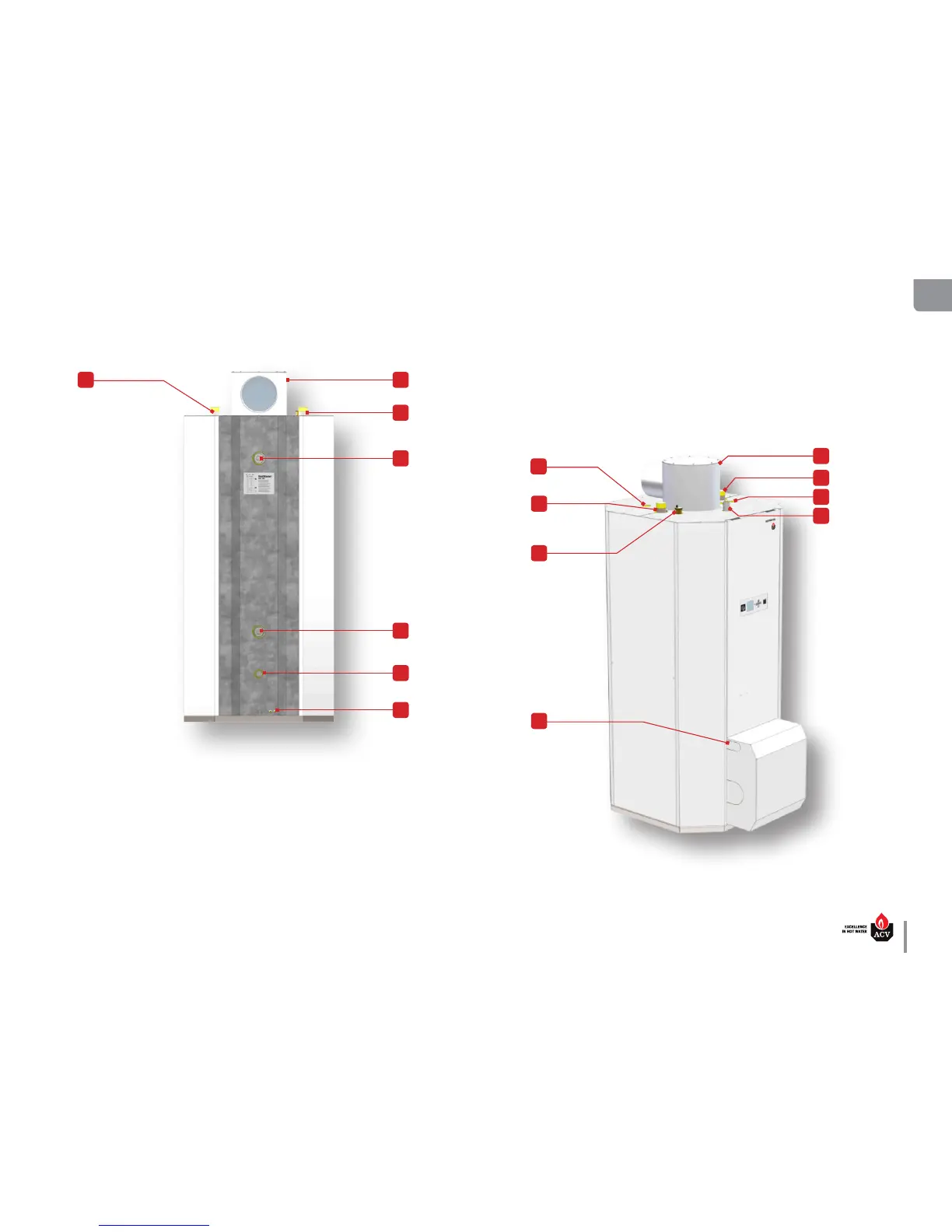

CONNECTIONS  AT THE BACK AND ON THE TOP
1. Chimney reduction with horizontal outlet
Ø 250mm
2. Cold Water inlet [M]
3. Domestic Hot Water outlet [M]
4. Heating supply connection [F]
5. Heating return connection [F]
6. Drain valve
7. Grommets for electrical connection (to
be installed)
8. NTC primary supply sensor
9. Connection for recirculation (DHW) (op-
tional)
10. Pre-cut panel for gas connection (left
and right sides)
11. Auto air vent
12. Filling loop connection
