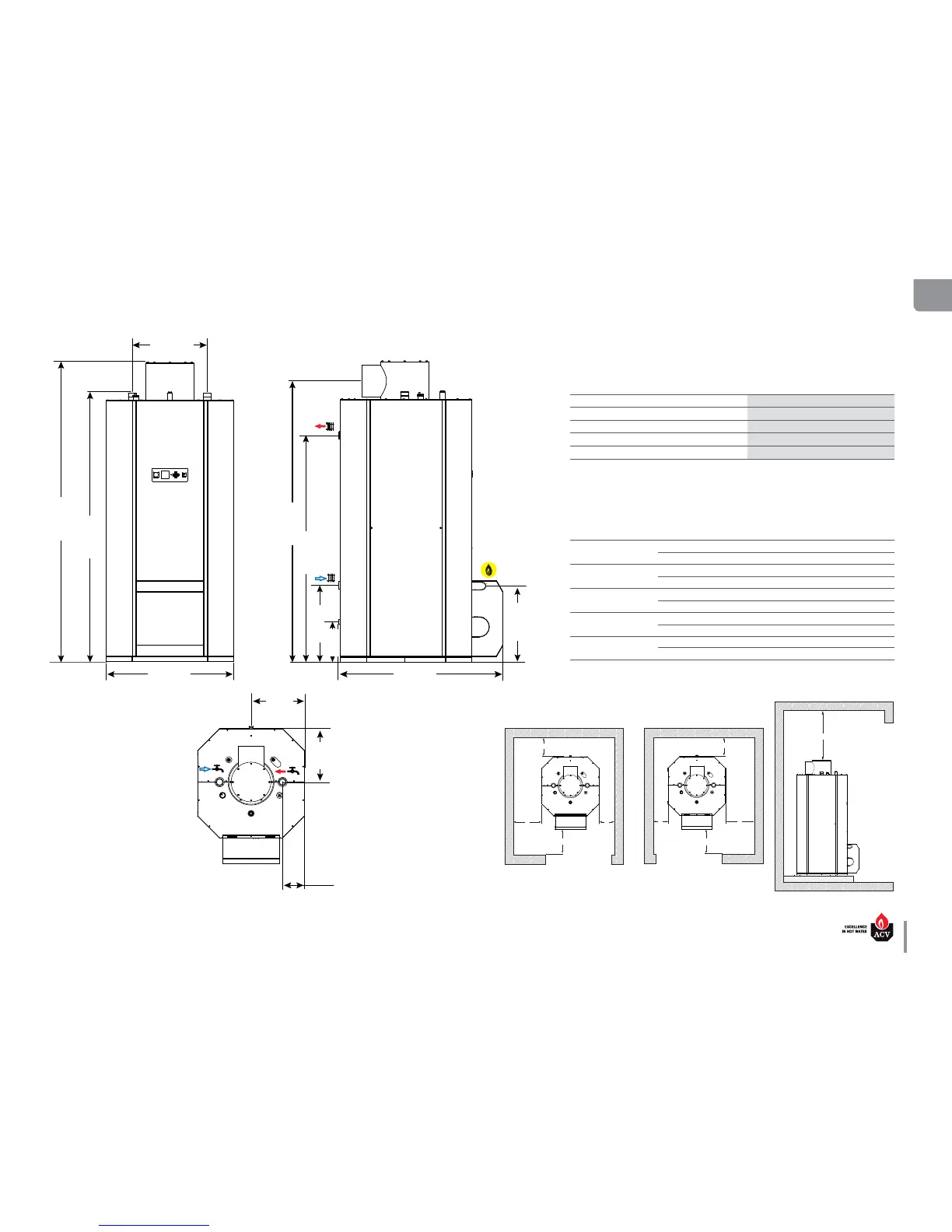

ACV HeatMaster 201 - Technical Characteristics; Clearance

2145 mm
1018 mm
1395 mm
2390 mm
2230 mm
1795 mm
615 mm
605 mm
330 mm
510 mm
510 mm
600 mm
210 mm
C
A
B D
E
C
A
BD
HeatMaster 201: A1004320 - 664Y7500 • A
EN
FR
NL
ES
IT
DE
PL
RU
en
17
TECHNICAL CHARACTERISTICS
Appliance Dimensions HM 201
Heating Connection [F] “ 2
DHW Connection [M] “ 2
Gas connection [M] “ 1 1/4
min. ∅ of ue pipe mm 150
Drained weight Kg 635
CLEARANCE
DIMENSIONS
Appliance Clearance HM 201
A (mm)
Recommended 1000
Minimum 800
B (mm)
Recommended 800
Minimum 700
C (mm)
Recommended 1000
Minimum 800
D (mm)
Recommended 300
Minimum 250
E (mm)
Recommended 1300
Minimum 1100
