INSTALLATION

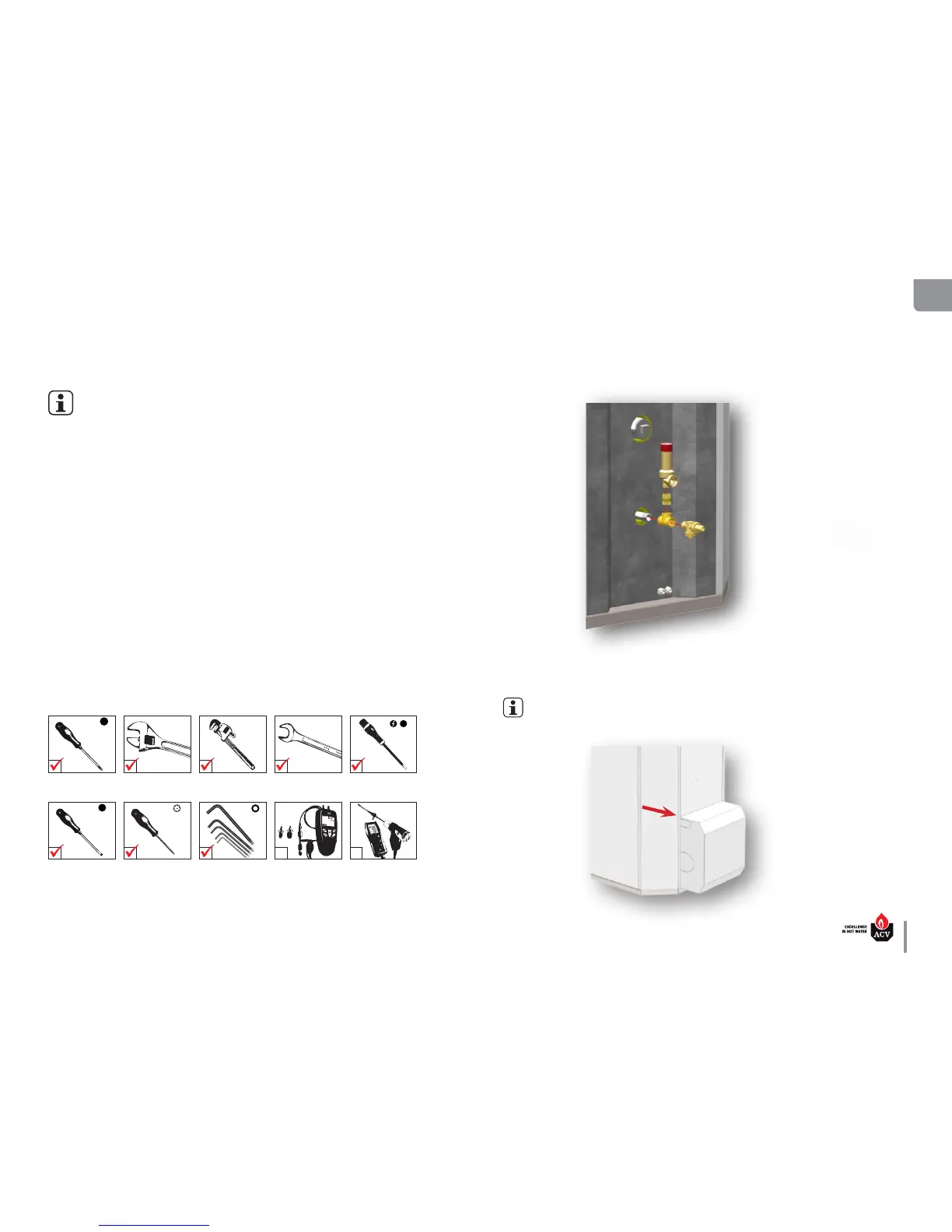

PACKAGE CONTENTS
The HeatMaster® 201 boilers are delivered tested and in several packages (Burner, casing, safety valve
kit and chimney connection to be installed).
At product reception and after removal of packaging, check the package contents and that
they are free of damages.
CONTENTS
APPLIANCE PREPARATION
Place the appliance in its nal position and install:
1. The casing and chimney connection. Refer to the Casing Installation Manual provided with the casing.
2. The safety valve kit at the back
3. The burner. Refer to the Burner Installation Manual provided with the burner.
4. The burner cover, refer to the Casing Installation Manual provided with the casing or “Removal and
Installation of the Front Panel and the burner cover” on page 29 :
For gas connection, remove the pre-cut section from the burner cover, according to the side
from which gas pipe arrives to the appliance
TOOLS REQUIRED FOR THE INSTALLATION
Package 1
• Boiler
• Installation, Operation and Maintenance
Instructions
• 2 grommets for electrical cables (to be
installed)
• A safety valve kit (to be installed), comprised
of:
- A primary safety valve Ø 3/4” F
- A brass T union - Ø 3/4” F
- 1x brass nipple - Ø 3/4” M
- A draining valve Ø 3/4” M
- Silicone hose Ø 12x16 mm of 2,7 meters
Package 2
• A BG 2000-M air/gas premix burner (to be
installed) and hardware
• A burner installation manual
Package 3
• Casing (to be assembled)
• Hardware
• Casing and chimney connection assembly
manual
Package 4
• Chimney connection (to be installed)
• Hardware
