The SSD-66 (5.1) has several new features including a built-in audio-video selector. The rear
panel of the SSD-66 (5.1) includes:
A Four Stereo Analog Audio Inputs (RCA type jacks) - 47KΩ Input (2V Max.)
B Four Composite Video Inputs (RCA type jack) - 75Ω/1V
C Two Digital Coax Inputs - AC-3 or Digital Audio (RCA type jack) - 75Ω
D One Optical Digital Audio Input - TOS-Link
E One Composite Video Output (RCA type jack) - 75Ω
F One DSP Loop-Through (RCA type jacks) - 75Ω
G Multi-Pin Input for connection to the DTS-1 (6 Channel Digital Input)
H Six Analog Audio Outputs (RCA type jacks) - FR, C, FL, SR, SL, & Sub - 51Ω
I One 12VDC Output (2 pin removable screw terminal connector) - 100mA
J One ADA Bus™ I/O Port (4 pin removable screw terminal connector) - BiDirectional
K One AC Line Cord Connection (EIC type connector) - 50W
SSD-66 (5.1)
DOLBY DIGITAL AC-3 PREAMPLIFIER
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
1 2 3 41 2
DSP
LOOP
SUB LS RS R C L
12
4
LRLRLRL
3
R
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT DIGITAL
INPUT 2
DIGITAL
INPUT 1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
OUTPUTS DIGITAL I/O
MANUFACTURED UNDER LICENSE FROM
DOLBY LABORATORIES LICENSING CORP.
ADDITIONALLY LICENSED CANADIAN
PATENT NUMBER 1,037,877. "DOLBY",
"AC-3", "PROLOGIC" AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
VIDEO IN 1 VIDEO OUTVIDEO IN 2 VIDEO IN 4VIDEO IN 3 DIGITAL
OPTO INPUT
DIGITAL OUT
DIGITAL IN
G
N
T
X
R
X
15
V
G
N
12
V
AUX DC ADA BUS™
MULTI-PIN INPUT (For DTS-1)
VIDEO I/O
115 V
ABECDF
HIJK
G
Introduction & Features
The SSD-66 (5.1) is a complete Dolby Digital Surround AC-3/DTS Preamplifier which will
decode six channel discrete digital sound from a laser disc, DVD, satellite receiver, or TV
cable box equipped with a digital AC-3 output jack. To process the digital data stream from a
laser disc, you will also require the RFD-1 AC-3 RF Demodulator. This device will take the RF
output from the AC-3 laser disc component and demodulate it to a digital signal so that the
SSD-66 (5.1) can decode the digital AC-3 signal. Other devices which have an AC-3 output,
such as a DVD player, can connect directly to the SSD-66 (5.1). To decode DTS laser discs
or CDs you will need to use the DTS-1 DTS Decoder. The DTS-1 connects to a CD player or
laser disc players digital output (coax or optical). Since system configurations will vary, follow
these instructions to optimize the use of the SSD-66 (5.1) in your system.

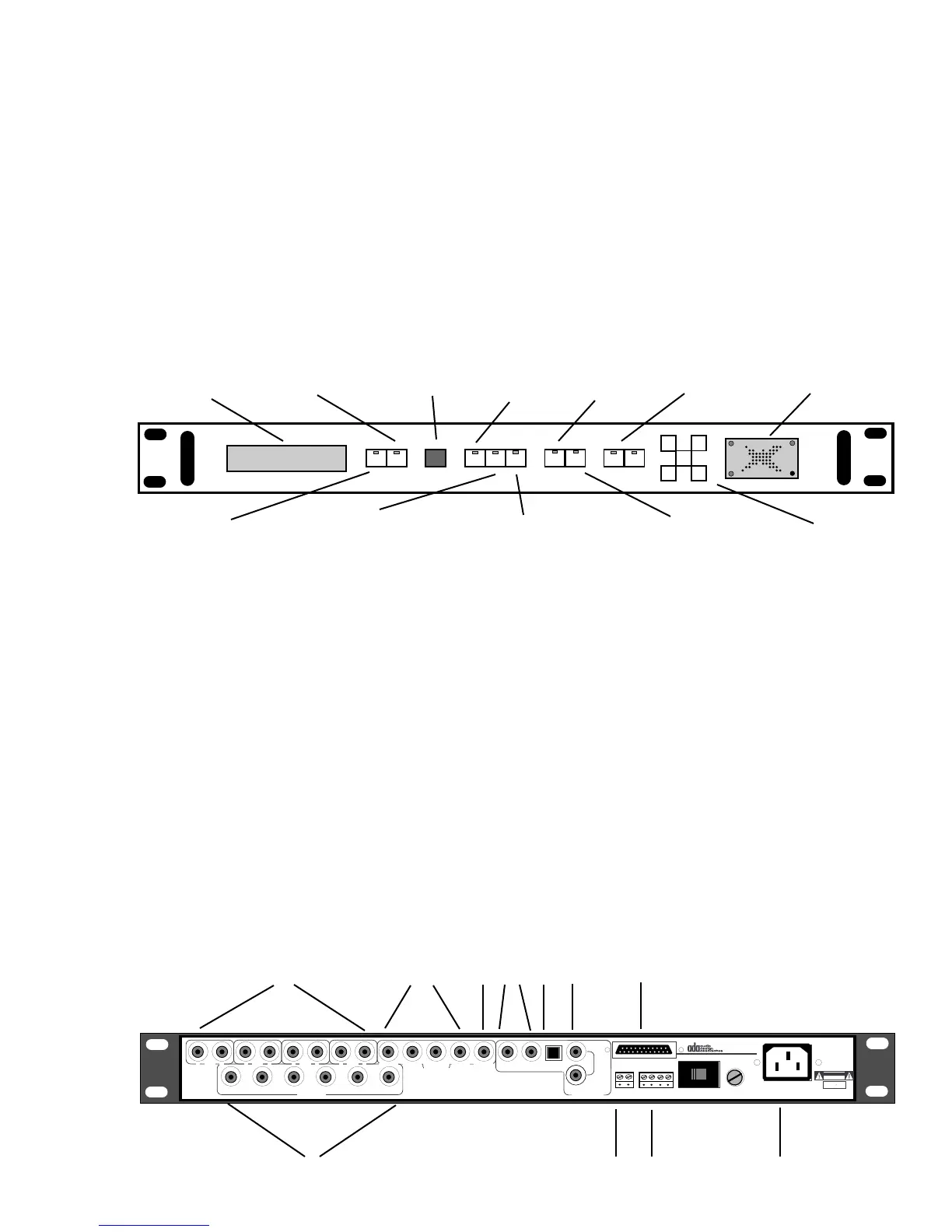

LEFT
