AC Connection
The SSD-66 (5.1) uses an EIC type AC cord which
is a universal standard for most electrical compo-
nents permitting use of various AC line cords con-
sistent with local electrical standards. The SSD-66
(5.1) comes with an AC line cord for AC outlets in
the United States. As you un-box the SSD-66 (5.1)
and prepare to plug it into an AC outlet,
make cer-
tain that the "Voltage Selector" switch is set to the
appropriate voltage position.
In the United States, the switch needs to be set to the left in the 115V position with a Safety
Fuse valued at 1/2 A S.B. In some countries, it will be necessary to set this switch to the right
in the 230V position with a Safety Fuse valued at 3/8A S.B. If you are not certain as to which
position the "Voltage Selector" switch needs to be set to, consult with your local ADA Dealer.
12 Volt DC Output
The SSD-66 (5.1) has a 12VDC output which is engaged whenever the SSD-66 (5.1) is on.
This low voltage signal can be used to trigger ADA's ACC-3 Switched AC Outlet to automati-
cally turn on the RFD-1 RF Demodulator and PTM-6150 Home Theater Power Amplifier.
115 V
SSD-66 •AC-3•
DOLBY DIGITAL AC-3 PREAMPLIFIER
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
Ris
k
Wit
h
Connections (continued)
+-
OUTPUT 4-16 Ω
INPUT
47K
Ω
CH 1
+-
OUTPUT 4-16 Ω
INPUT
47K
Ω
CH 2
+-
OUTPUT 4-16 Ω
INPUT
47K
Ω
CH 3
-+
OUTPUT 4-16 Ω
CH 4
INPUT
47K
Ω
-+
OUTPUT 4-16 Ω
CH 5
INPUT
47K
Ω
-+
OUTPUT 4-16 Ω
CH 6
INPUT
47K
Ω
POWER
115 V - 230 V
50 Hz - 60 Hz
REPLACE
WITH SAME
VALUE FUSE
10A S.B.
VOLTAGE
SWITCH
115 V - 230 V
PTM-6150 P OWER A MP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
WARNING!
RISK OF HAZARDOUS
ENERGY!
MAKE PROPER SPEAKER
CONNECTIONS.
AVERTISSEMENT! ENERGIE
ELECTRIQUE DANGEREUSE! FAIRE
DES CONNEXIONS PROPRES POUR
L'HAUTPARLEUR. VOIR LA NOTICE
DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD
BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT
LE DEPANNAGE.
Manufactured under license
from Lucasfilm Ltd.
Lucasfilm and THX are registered
trademarks of Lucasfilm Ltd.
CAUTION! DO NOT SHORT OUTPUTS!
115 V
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
G
N
D
T
X
R
X
+
15
V
1 2 3 41 2
G
N
D
+
12
V
AUX DC
OUTPUT
ADA BUS™
DATA PORT
DIGITAL OUT
DIGITAL IN
DSP
LOOP
SUB LS RS R C L
12
4
LRLRLRL
3
R
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT DIGITAL
INPUT 2
DIGITAL
INPUT 1
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
OUTPUTS DIGITAL I/O
MANUFACTURED UNDER LICENSE FROM
DOLBY LABORATORIES LICENSING CORP.
ADDITIONALLY LICENSED CANADIAN
PATENT NUMBER 1,037,877. "DOLBY",
"AC-3", "PROLOGIC" AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
VIDEO IN 1 VIDEO OUTVIDEO IN 2 VIDEO IN 4VIDEO IN 3 DIGITAL
OPTO INPUT
VIDEO I/O
SSD-66 (5.1)
DOLBY SURROUND AC-3 CONTROLLER/PREAMP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
115 V
115 V
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V)
2/10A S.B.
(220V)
1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
RFD-1
DIGITAL AC-3 RF DEMODULATOR
OFF
ON
DC INPUT MUTE
"DOLBY", "AC-3", AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
DIGITAL
AC-3 OUT
OUTPUT
RF
AC-3 IN
INPUT
ACC-3
1234
-A+ -B+
TO AC
OUTLET

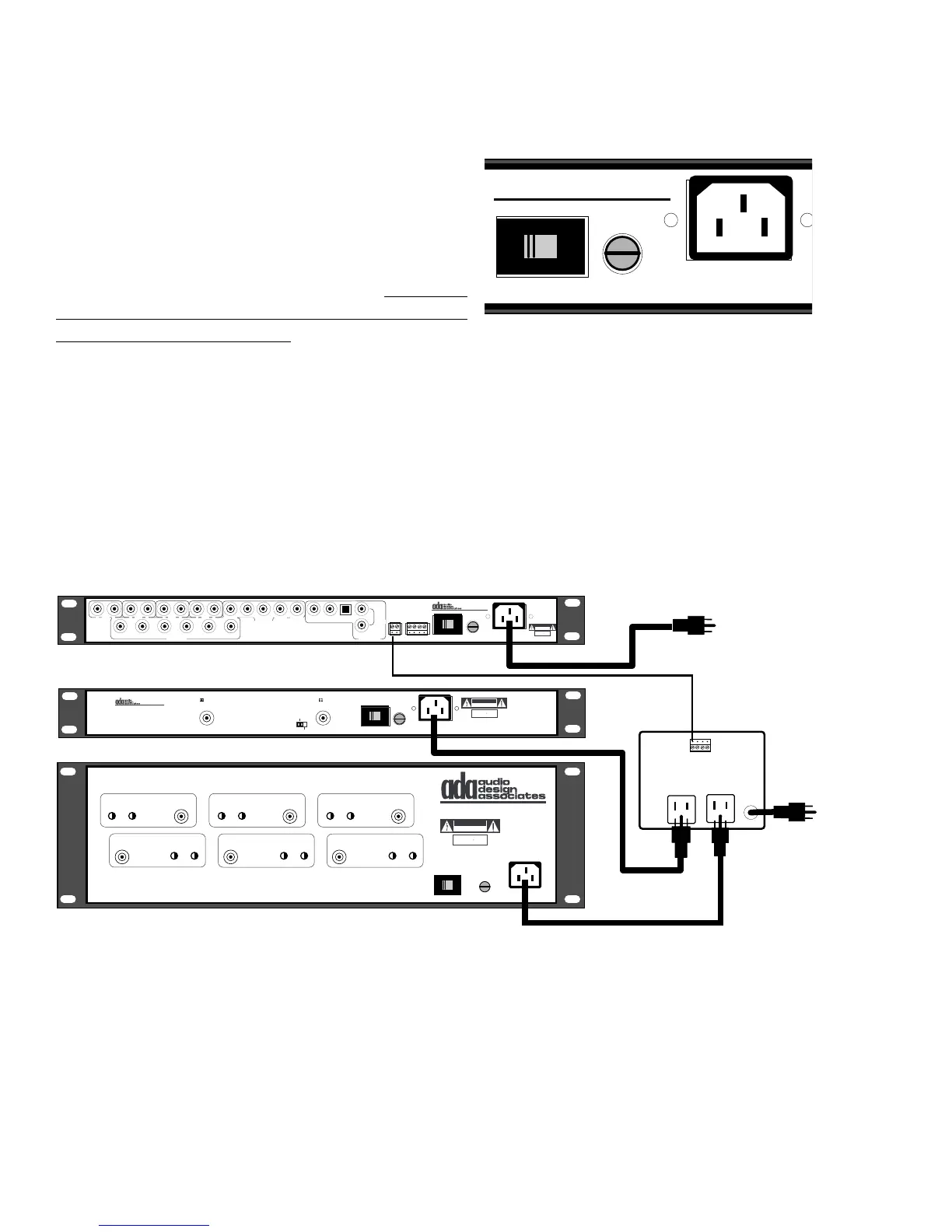

When using both the DTS-1 and RFD-1, you can plug a multi-outlet power strip into one of the
two switched AC outlets on the ACC-3. Thus, both units can be automatically switched on
whenever the SSD-66 (5.1) turns on. Furthermore, you may also automatically switch other
components such as laser disc, CD, and cassette players by simply plugging them into the
power strip. Devices such as VCRs and DSS receivers may best be plugged directly into a
non-switched AC outlet as they typically require constant voltage.
Pin 1 = Com. (-)
Pin 2 = Sw. +12V
