Ada SSD-66 - Audio Outputs

- 4 -
Connections (continued)
Audio Outputs

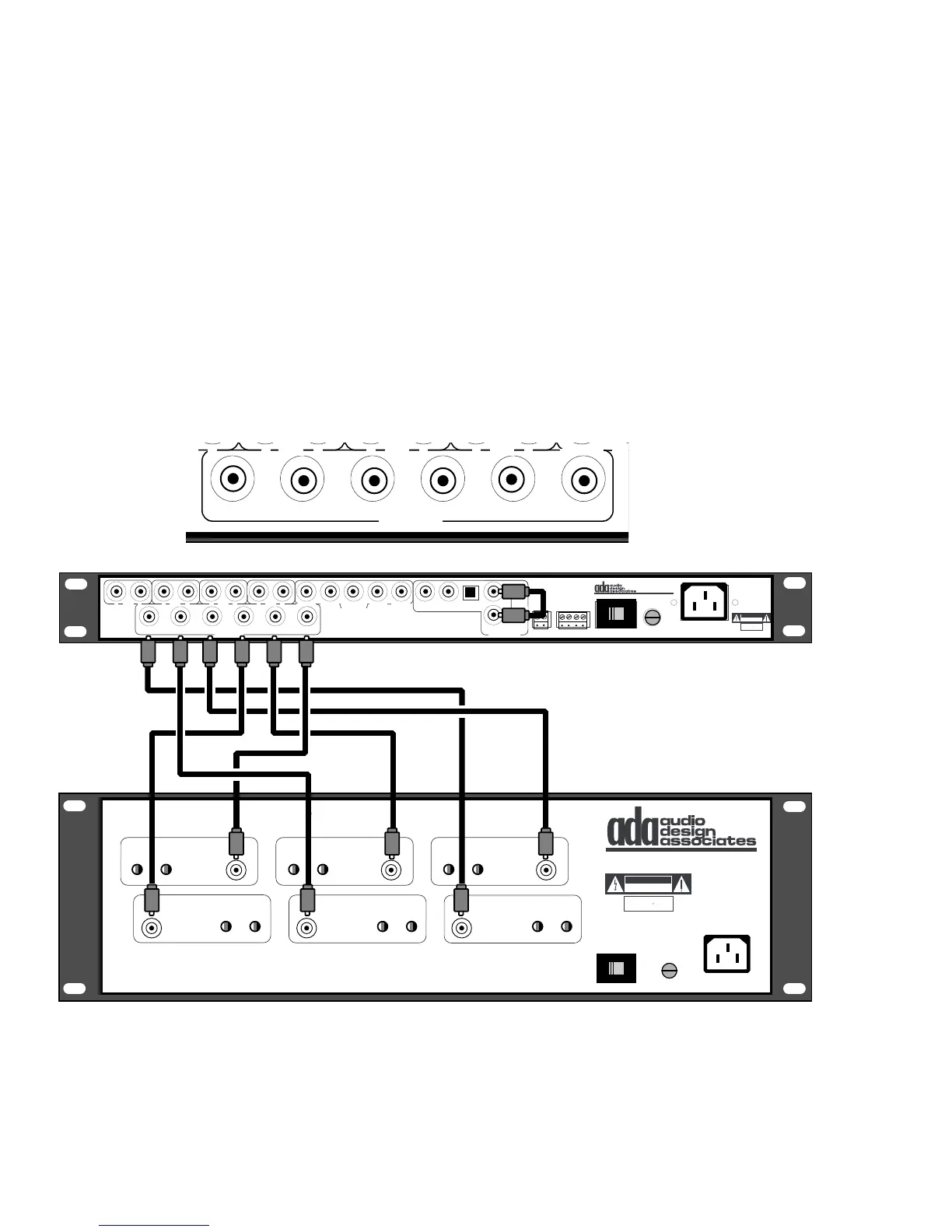

The rear-panel indicates a section called "Outputs". The six RCA type jacks in this area
provide processed (decoded) audio signals to the power amplifier. Using most any type of
RCA (male) cable, connect the "Outputs" to your power amplifier. It is best to RCA cables of
equal length for all six channels. The following list details the "Outputs" and their respective
speaker channel.
SUB Subwoofer Audio Output
LS Left Surround Speaker- Rear Channel
RS Right Surround Speaker- Rear Channel
R Right Front Speaker - Front Channel
C Center Speaker - Front Channel
L Left Front Speaker - Front Channel
Self Powered Subwoofers
If you are using a powered subwoofer, you may need to run a longer audio cable to the
subwoofer. When using more than one powered subwoofer, you can elect to use a "Y" adap-
tor to split the audio signal to both subwoofers. Using "Y" splits might induce line-noise or
cause signal loss. Should this occur, you will require a line-level isolation amplifier (ADA's
ISO-2) or a line-level audio distribution amplifier.
SUB LS RS R C L
LRLRLRL
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
UDIO
P
UT
OUTPUTS
MAN
DOL
B
A
D
PA
T
"AC-
3
SY
M
L
A
VIDEO IN 1 VID
E
+-
OUTPUT 4-16 Ω
INPUT
47K Ω
CH 1
+-
OUTPUT 4-16 Ω
INPUT
47K Ω
CH 2
+-
OUTPUT 4-16 Ω
INPUT
47K Ω
CH 3
-+
OUTPUT 4-16 Ω
CH 4
INPUT
47K Ω
-+
OUTPUT 4-16 Ω
CH 5
INPUT
47K Ω
-+
OUTPUT 4-16 Ω
CH 6
INPUT
47K Ω
POWER
115 V - 230 V
50 Hz - 60 Hz
REPLACE
WITH SAME
VALUE FUSE
10A S.B.
VOLTAGE
SWITCH
115 V - 230 V
PTM-6150 P OWER A MP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
WARNING!
RISK OF HAZARDOUS
ENERGY!
MAKE PROPER SPEAKER
CONNECTIONS.
AVERTISSEMENT! ENERGIE
ELECTRIQUE DANGEREUSE! FAIRE
DES CONNEXIONS PROPRES POUR
L'HAUTPARLEUR. VOIR LA NOTICE
DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD
BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT
LE DEPANNAGE.
Manufactured under license
from Lucasfilm Ltd.
Lucasfilm and THX are registered
trademarks of Lucasfilm Ltd.
CAUTION! DO NOT SHORT OUTPUTS!
115 V
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
G
N
D
T
X
R
X
+
15
V
1 2 3 41 2
G
N
D
+
12
V
AUX DC
OUTPUT
ADA BUS™
DATA PORT
DIGITAL OUT
DIGITAL IN
DSP
LOOP
SUB LS RS R C L
12
4
LRLRLRL
3
R
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT DIGITAL
INPUT 2
DIGITAL
INPUT 1
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
OUTPUTS DIGITAL I/O
MANUFACTURED UNDER LICENSE FROM
DOLBY LABORATORIES LICENSING CORP.
ADDITIONALLY LICENSED CANADIAN
PATENT NUMBER 1,037,877. "DOLBY",
"AC-3", "PROLOGIC" AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
VIDEO IN 1 VIDEO OUTVIDEO IN 2 VIDEO IN 4VIDEO IN 3 DIGITAL
OPTO INPUT
VIDEO I/O
SSD-66 (5.1)
DOLBY SURROUND AC-3 CONTROLLER/PREAMP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
115 V
Channel 1 = Left Front
Channel 2 = Center
Channel 3 = Right Surround
Channel 4 = Right Front
Channel 5 = Left Surround
Channel 6 = Subwoofer
