Ada SSD-66 - DTS-1 DTS Decoder

- 8 -
Connections (continued)
DTS-1 DTS Decoder
The DTS-1 DTS Decoder is used to provide playback of DTS laser discs and CDs. As most
laser disc players have either a digital coax (RCA) or digital optical (TOS-Link) output, no
special laser disc is necessary for playing DTS software. Some CD players offer these out-
puts and they too can be used to provide DTS CD playback. As the SSD-66 (5.1) has only
one "Multi-Pin" input, only one DTS playback device can be connected to the SSD-66 (5.1).

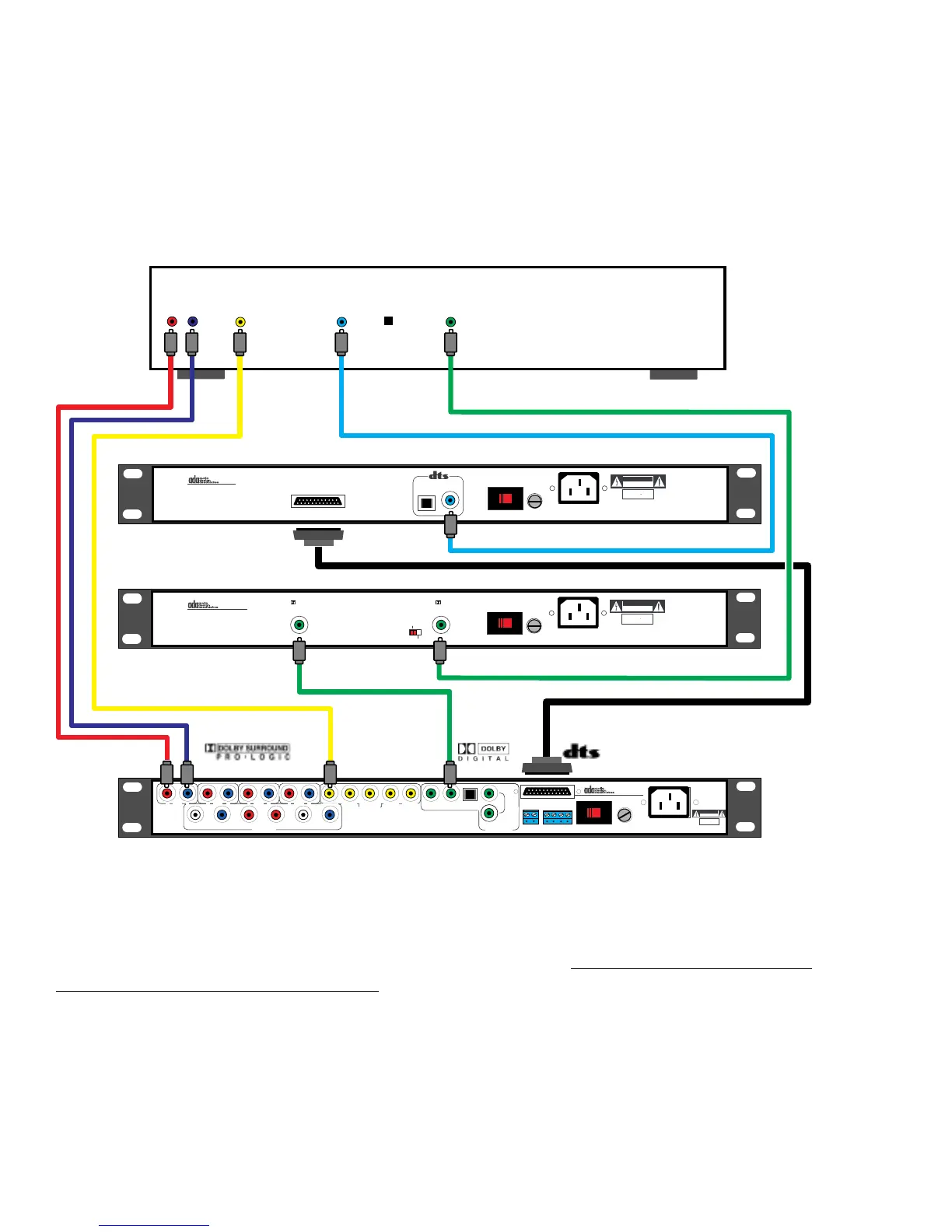

The DTS-1 has two types of inputs for connection to either a CD player or laser disc player, a
digital coax (RCA) input and an optical input (TOS-Link). To provide DTS playback, simply
connect the laser disc or CD player to one of these two inputs. Please note, that both inputs
perform identically and there is no additional benefit when using one or the other. Do not use
both the TOS-Link and the Digital RCA inputs on the DTS-1
at the same time, especially
for two different source components. Since a source with a digital output always pro-
vides some type of sync signal when it is on, connection of two different types of
digital sources to the DTS-1 at the same time, can crash the DTS-1.
If the LOCK indicator is not on:
a. Make certain that the DTS-1 is on and that its Voltage Selector Switch is set to the
appropriate voltage.
b. Make certain that you are connected to the laser disc player's digital PCM output.
c. Check to see if the laser disc or CD you are playing is DTS encoded.
DTS-1
DIGITAL DTS DECODER
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V)
2/10A S.B.
(220V)
1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
OUTPUT TO SSD-66 (5.1)
MULTI-PIN CONNECTOR
INPUT
OPTICAL
INPUT
75
Ω
"DTS" IS THE TRADEMARK OF
DIGITAL THEATER SYSTEMS.
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V)
2/10A S.B.
(220V)
1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
RFD-1
DIGITAL AC-3 RF DEMODULATOR
OFF
ON
DC INPUT MUTE
"DOLBY", "AC-3", AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
DIGITAL
AC-3 OUT
OUTPUT
RF
AC-3 IN
INPUT
SSD-66 (5.1)
DOLBY DIGITAL AC-3 PREAMPLIFIER
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
1 2 3 41 2
DSP
LOOP
SUB LS RS R C L
12
4
LRLRLRL
3
R
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT DIGITAL
INPUT 2
DIGITAL
INPUT 1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
OUTPUTS DIGITAL I/O
MANUFACTURED UNDER LICENSE FROM
DOLBY LABORATORIES LICENSING CORP.
ADDITIONALLY LICENSED CANADIAN
PATENT NUMBER 1,037,877. "DOLBY",
"AC-3", "PROLOGIC" AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
VIDEO IN 1 VIDEO OUTVIDEO IN 2 VIDEO IN 4VIDEO IN 3 DIGITAL
OPTO INPUT
DIGITAL OUT
DIGITAL IN
G
N
T
X
R
X
15
V
G
N
12
V
AUX DC ADA BUS™
MULTI-PIN INPUT (For DTS-1)
VIDEO I/O
115 V
AC-3 LASER DISC PLAYER
COMPOSITE
VIDEO OUT
DIGITAL
AUDIO OUT
DIGITAL 
MULTI-PIN OUT
DIGITAL AUDIO (DTS) IN
AC-3 RF IN
AC-3 INVIDEO INOTHER AUDIO IN DTS IN
DIGITAL AC-3 OUT
AC-3 RF
OUT
RIGHT & LEFT
ANOLOG AUDIO
DTS-1
DIGITAL DTS DECODER
RFD-1
AC-3 RF DEMODULATOR
SSD-66 (5.1)
AC-3 PREAMPLIFIER
ANALOGUE
AUDIO
OUTPUT
R L
DOLBY
DIGITAL
AC-3 RF
OUTPUT

DIGITAL
AUDIO
OUTPUT
OPTICAL
DIGITAL
AUDIO
OUTPUT

COMPOSITE
VIDEO
OUTPUT
115 V
115 V
(For only DTS playback, any Laser Disc
Player with a digital output will do.)
(For DTS playback, use either the digital coax (RCA) output or the optical output)
