Ada SSD-66 - Basic Setup

- 10 -

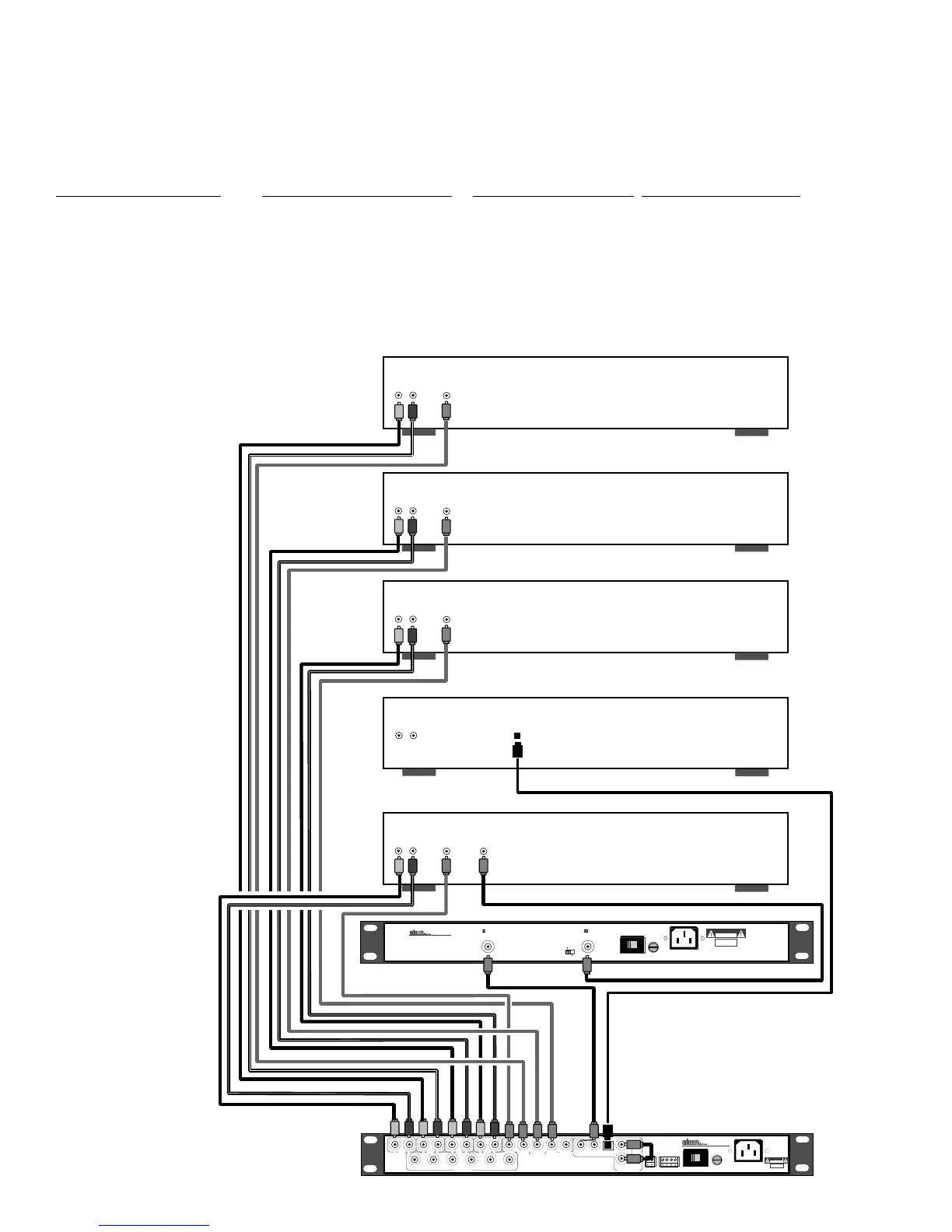

Source Connections - Basic Setup
The SSD-66 (5.1), when new out of the box, will still maintain the settings programmed in at
the factory (Factory Default Settings). These settings permit the quick connection of:
Souce Component Input Label Name & # Audio Conneciton Video Connection
AC-3 Laser Disc LASER AC3 1 Digital Input 1 Video 1
AC-3 Laser Disc LASER PCM 2 Analog Input 1 Video 1
TV or Cable Tuner TV/CABLE 3 Analog Input 2 Video 2
VCR Recorder VCR 4 Analog Input 3 Video 3
Satellite or DSS Receiver SATELLITE 5 Analog Input 4 Video 4
CD Player CD PLAYER 6 OPTICAL Video 1
Note
Please note, that
this setup pre-
sumes that your
CD player has an
Optical TOS-Link
digital audio out-
put
Variations
The SSD-66 (5.1)
is a uniquely de-
signed compo-
nent in which the
ability to connect
components,
change Input La-
bels, link audio to
video inputs, and
much more is
completely flex-
ible and open.
For information
on how to com-
pletely setup the
SSD-66 (5.1) for
alternate source
component con-
figurations,
please see "Ad-
vanced Connec-
tions", beginning
on page 10.
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
G
N
D
T
X
R
X
+
15
V
1 2 3 41 2
G
N
D
+
12
V
AUX DC
OUTPUT
ADA BUS™
DATA PORT
DIGITAL OUT
DIGITAL IN
DSP
LOOP
SUB LS RS R C L
12
4
LRLRLRL
3
R
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT DIGITAL
INPUT 2
DIGITAL
INPUT 1
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
OUTPUTS DIGITAL I/O
MANUFACTURED UNDER LICENSE FROM
DOLBY LABORATORIES LICENSING CORP.
ADDITIONALLY LICENSED CANADIAN
PATENT NUMBER 1,037,877. "DOLBY",
"AC-3", "PROLOGIC" AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
VIDEO IN 1 VIDEO OUTVIDEO IN 2 VIDEO IN 4VIDEO IN 3 DIGITAL
OPTO INPUT
VIDEO I/O
SSD-66 (5.1)
DOLBY SURROUND AC-3 CONTROLLER/PREAMP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
115 V
AC-3 LASER DISC PLAYER
ANALOGUE
AUDIO
OUTPUT
R L
DOLBY
DIGITAL
AC-3 RF
OUTPUT

COMPOSITE
VIDEO
OUTPUT
TV/CABLE
ANALOGUE
AUDIO
OUTPUT
R L

COMPOSITE
VIDEO
OUTPUT
SATELLITE
ANALOGUE
AUDIO
OUTPUT
R L

COMPOSITE
VIDEO
OUTPUT
115 V
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V)
2/10A S.B.
(220V)
1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
RFD-1
DIGITAL AC-3 RF DEMODULATOR
OFF
ON
DC INPUT MUTE
"DOLBY", "AC-3", AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
DIGITAL
AC-3 OUT
OUTPUT
RF
AC-3 IN
INPUT
VCR
ANALOGUE
AUDIO
OUTPUT
R L

COMPOSITE
VIDEO
OUTPUT
OPTICAL
DIGITAL
AUDIO
OUTPUT
CD
ANALOGUE
AUDIO
OUTPUT
R L
