- 22 -

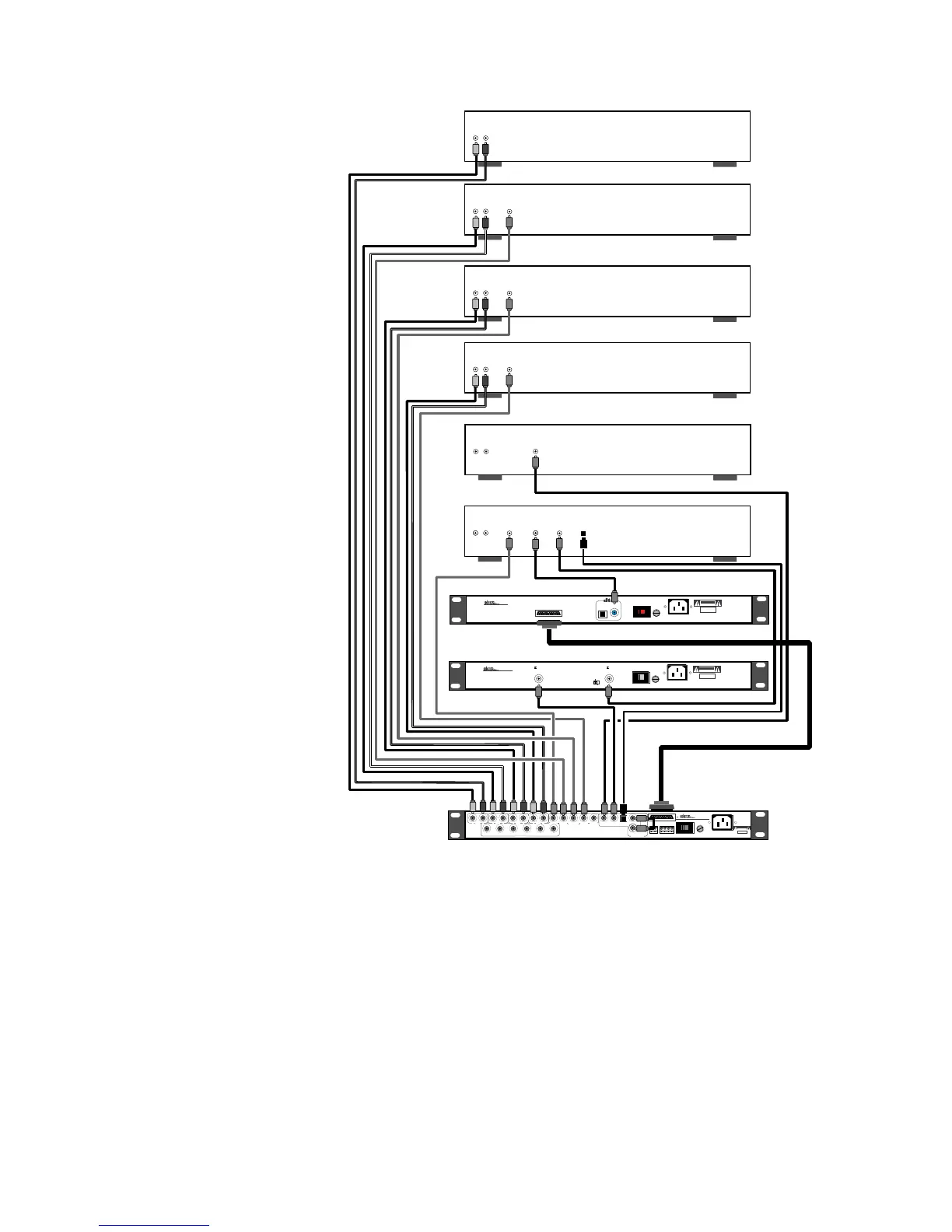

Example A/V Input Linking • Six Source Installation w/DTS
Using the example source configu-
ration as discussed in previous
pages, we will program the audio
and video links for the system as
layed out in the diagram were six
sources are connected with DTS.
Step 1 Repeatedly press the INPUT
SELECT button until the dis-
play reads "LASER AC3 1".
Step 2 Repeatedly press the
SETUP MODE button until
the display reads either "OP-
TICAL/V#", "DIGITAL#/V#",
or "ANALOG#/V#". The "#"
refers to either Digital Audio
Input number, Analog Audio
Input number, and the Com-
posite Video Input number.
It should already read "DIGI-
TAL 1/V1".
Step 3 Press the VOL UP or VOL
DN buttons to advance
through the SSD-66 (5.1)'s
available audio and video
links until the display reads
"DIGITAL1/V1".
Step 4 Press the INPUT SELECT
button to lock in this A/V Link
and exit the Setup Mode.
Step 5 Press the INPUT SELECT
button again to advance to
the SSD-66 (5.1) to the next
Input Label, "LASER PCM
2".
Step 6 Press the SETUP MODE button and the SSD-66 (5.1) should automatically come back up with an
AV Link. If the display does not read as described in Step 2, repeatedly press the SETUP MODE
button until an AV Link does appear.
Step 7 Press the VOL UP or VOL DN buttons to advance through the SSD-66 (5.1)'s available audio and
video links until the display reads "OPTICAL/V1".
Step 8 Press the INPUT SELECT button twice, once to exit the Setup Mode and once to advance the
display to read "TV/CABLE 3". This Input Label will be used for the DTS Decoder and will need to
be reset for both an A/V Link and its label.
Step 9 Again, press the SETUP MODE buton and the display sould read an A/V Link.
Step 10 Use the VOL UP or VOL DN buttons until the display reads "MUTI PIN/V1"
Step 11 Repeatedly press the SETUP MODE button until display reads "LABEL INPUTS".
DTS-1
DIGITAL DTS DECODER
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V)
2/10A S.B.
(220V)
1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
OUTPUT TO SSD-66 (5.1)
MULTI-PIN CONNECTOR
INPUT
OPTICAL
INPUT
75
Ω
"DTS" IS THE TRADEMARK OF
DIGITAL THEATER SYSTEMS.
115 V
SSD-66 (5.1)
DOLBY DIGITAL AC-3 PREAMPLIFIER
110/220 VAC SWITCHED
50-60 Hz, 50 WATT
VOLTAGE SELECTOR
(110V)
1/2A S.B.
(220V)
3/8A S.B.
1 2 3 41 2
DSP
LOOP
SUB LS RS R C L
12
4
LRLRLRL
3
R
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT
AUDIO
INPUT DIGITAL
INPUT 2
DIGITAL
INPUT 1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
OUTPUTS DIGITAL I/O
MANUFACTURED UNDER LICENSE FROM
DOLBY LABORATORIES LICENSING CORP.
ADDITIONALLY LICENSED CANADIAN
PATENT NUMBER 1,037,877. "DOLBY",
"AC-3", "PROLOGIC" AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
VIDEO IN 1 VIDEO OUTVIDEO IN 2 VIDEO IN 4VIDEO IN 3 DIGITAL
OPTO INPUT
DIGITAL OUT
DIGITAL IN
G
N
T
X
R
X
15
V
G
N
12
V
AUX DC ADA BUS™
MULTI-PIN INPUT (For DTS-1)
VIDEO I/O
115 V
AC-3 LASER DISC PLAYER
ANALOGUE
AUDIO
OUTPUT
R L
DOLBY
DIGITAL
AC-3 RF
OUTPUT

DIGITAL
AUDIO
OUTPUT

COMPOSITE
VIDEO
OUTPUT
TV/CABLE
ANALOGUE
AUDIO
OUTPUT
R L

COMPOSITE
VIDEO
OUTPUT
SATELLITE
ANALOGUE
AUDIO
OUTPUT
R L

COMPOSITE
VIDEO
OUTPUT
115 V
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V)
2/10A S.B.
(220V)
1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
FUSE WARNING:
Risk of Fire! Replace Fuse
With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS.
AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT.
CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
RFD-1
DIGITAL AC-3 RF DEMODULATOR
OFF
ON
DC INPUT MUTE
"DOLBY", "AC-3", AND THE DOUBLE-D
SYMBOL ARE TRADEMARKS OF DOLBY
LABORATORIES LICENSING CORP.
DIGITAL
AC-3 OUT
OUTPUT
RF
AC-3 IN
INPUT
VCR
ANALOGUE
AUDIO
OUTPUT
R L

COMPOSITE
VIDEO
OUTPUT
CASSETTE
ANALOGUE
AUDIO
OUTPUT
R L
OPTICAL
DIGITAL
AUDIO
OUTPUT
CD
ANALOGUE
AUDIO
OUTPUT
R L

DIGITAL
AUDIO
OUTPUT
