23
1)
Illustration No. 1
a) FORWARD INDICATOR - this indicator dot is functional for dryer models with the Reversing
Action Option ONLY. This indicator dot will be on when the basket (tumbler) is in the forward
(clockwise [CW]) direction. Additionally, when the Anti-Wrinkle Program is active, this indicator
dot will be on whenever the Phase 6 OPL microprocessor controller (computer) is in the Guard
On Time Program (Mode).
2) Illustration No. 2 (refer to illustration below)
a) REVERSING INDICATOR - this indicator dot is functional for dryer models with the
Reversing Action Option ONLY. This indicator dot
will be on when the basket (tumbler) is in
the reverse (counterclockwise [CCW]) direction.
3)
Illustration No. 3 (refer to illustration below)
a) HEAT INDICATOR - this indicator dot is on whenever the Phase 6 OPL microprocessor
controller (computer) is calling for the heating unit to be active (on).
4) Illustration No. 4 (refer to illustration below)
a) ON INDICATOR - this indicator dot is on whenever a cycle is in progress. Additionally, when
the Anti-Wrinkle Program is active, this indicator dot will be on whenever the Phase 6 OPL
microprocessor controller (computer) is in the Guard On Time Program.
5) Illustration No. 5 (refer to illustration below) OPTIONAL
a) AIR JET CIRCUIT INDICATOR - this indicator dot is on at the end of the drying cycle for
approximately 60-seconds.

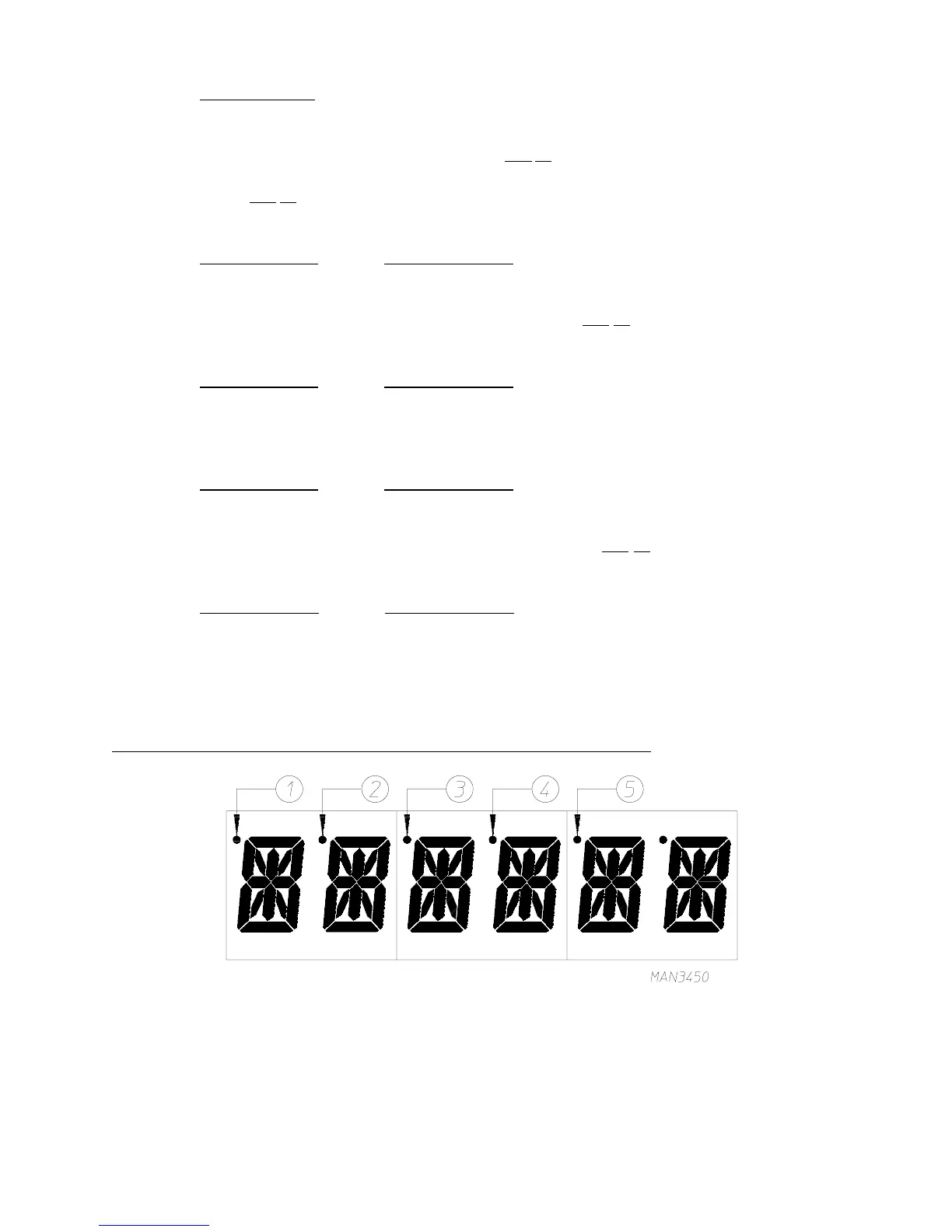

B. PHASE 6 OPL MICROPROCESSOR L.E.D. DISPLAYS
1. Basket (tumbler) in FORWARD MODE (clockwise [CW]) INDICATOR
2. Basket (tumbler) in REVERSE MODE (counterclockwise [CCW]) INDICATOR
3. HEAT ON INDICATOR
4. ON INDICATOR (dryer is in operation mode)
5. AIR JET INDICATOR - OPTIONAL
