4. Light Emitting Diode (L.E.D.) DISPLAY INDICATOR NUMBER 4
a. On Indicator
1) This indicator dot is on whenever a cycle is in progress. Additionally, when the Anti-Wrinkle
program is active, the indicator dot
will be on whenever the Phase 6 OPL microprocessor controller
(computer) is in the Guard On Time program.
5. L.E.D. DISPLAY INDICATOR NUMBER 5
a. Air Jet Circuit Indicator - OPTIONAL
1) This indicator dot is on at the end of the dryer cycle for approximately 60-seconds.
C. PHASE 6 OPL MICROPROCESSOR CONTROLLER (COMPUTER) RELAY
OUTPUT L.E.D. INDICATORS

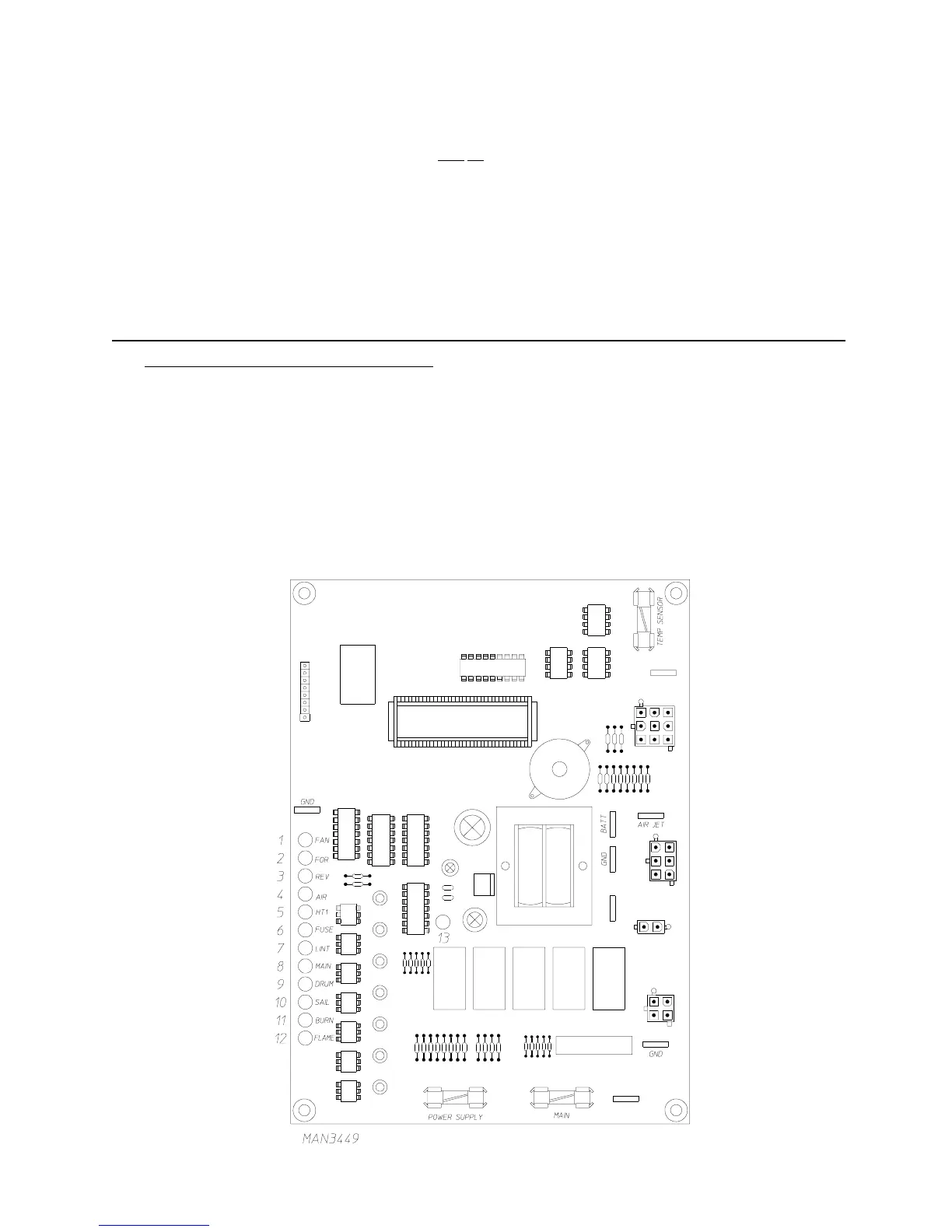

There are a series of five (5) L.E.D. indicators (ORANGE LIGHTS) located at the backside are of the Phase
6 OPL microprocessor controller (computer). These are identified or labeled (from top to bottom in the illustration
below as: FAN-BLOWER, FOR-FORWARD, REV-REVERSE, AIR-AIR-JET, HT1-HEAT OUTPUT. There
are a series of seven (7) L.E.D. Indicators (RED LIGHTS) FUSE-MAIN FUSE, LINT-LINT DOOR,
MAIN-MAIN DOOR, DRUM-TUMBLER HI-LIMIT, SAIL-SAIL SWITCH, BURN-BURNER HI-LIMIT,
FLAME-FLAME PROBE). The L.E.D. in the center of the board (RED LIGHT) indicates power supplied to
the Phase 6 OPL microprocessor controller (computer). These L.E.D.’s indicate the inputs and outputs of the
Phase 6 OPL microprocessor controller (computer) as it monitors the safety circuits.
