60
NOTE: RPM - This routine monitors the timing response from the existing rotational sensor input and
derives a RPM measurement. To display this RPM measurement (press the “ENTER/START”
Key once and release, then press the “ENTER/START” Key a second time and
hold...this will display the RPM measurement). The rotational sensor must be active for
operation of this feature.
12. CHECK MAIN FUSE - indicates that the circuit fuse protection which is located on the back side of the
Phase 6 microprocessor controller (computer) the display would read “CHECK MAIN FUSE.” If the
display continues after the fuse has been replaced then it is the fault of the Phase 6 microprocessor
controller (computer).
13. “Hot” - indicates a possible overheating condition. The Phase 6 OPL microprocessor controller (computer)
monitors the temperature in the dryer at ALL times. If the Phase 6 OPL microprocessor controller (computer)
detects that the temperature in the dryer has exceeded 220º F, it will disable ALL outputs (shut the dryer
down), the Tone (buzzer) will sound for approximately 5-seconds, and the light emitting diode (L.E.D.)
display will read “Hot.” The L.E.D. display will continue to read “Hot” until the temperature sensed has
dropped below 220º F or lower and the Phase 6 OPL microprocessor controller (computer) is manually
reset by pressing the “CLEAR/STOP” Key.

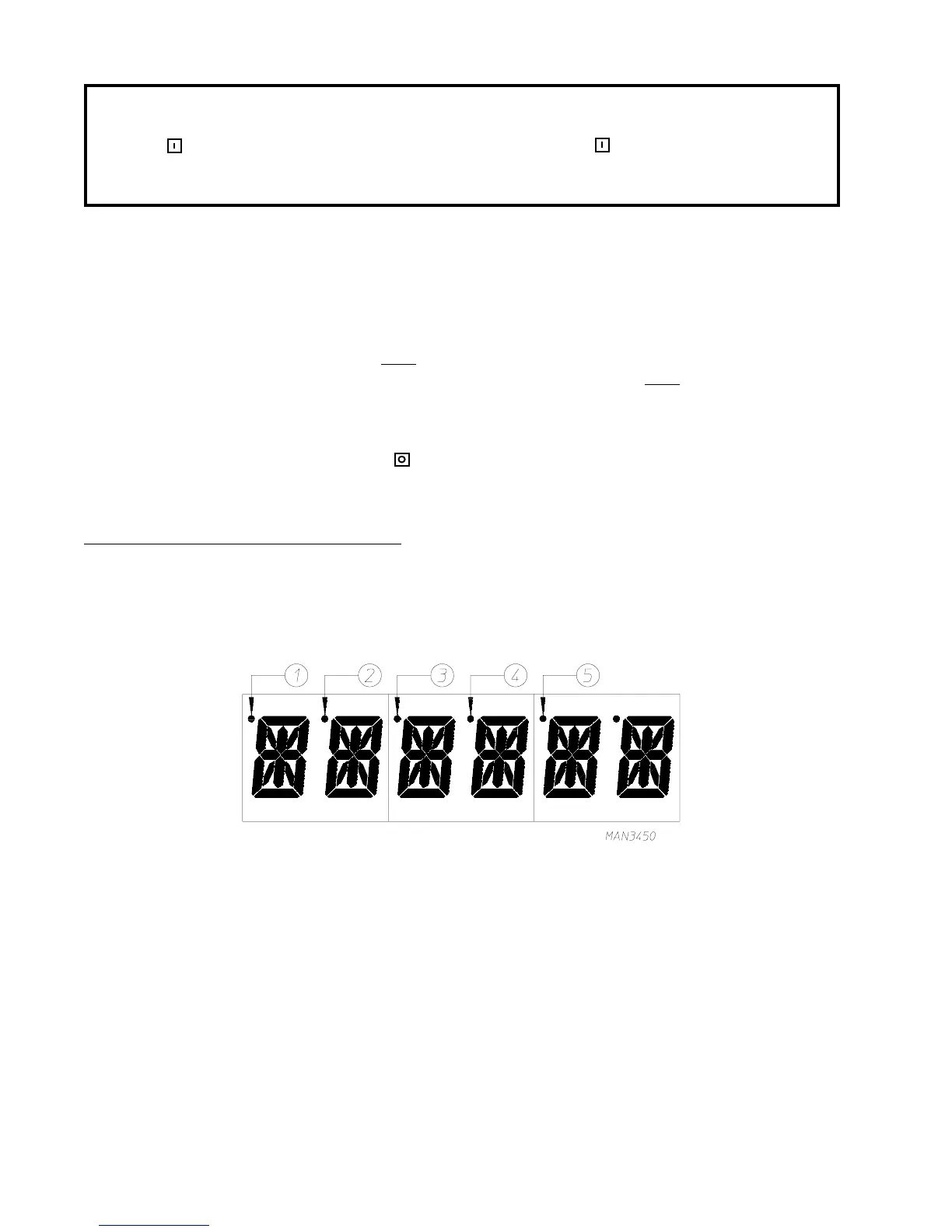

B. L.E.D. DISPLAY INDICATORS
The L.E.D. indicator dots located on the top portion if the display indicate the various Phase 6 OPL computer
output functions while a cycle is in progress. These indicator dots (as shown in the illustration below) DO
NOT necessarily mean that the outputs are functioning. They are only indicating that the function output
should be active (on).
1. L.E.D. DISPLAY INDICATOR NUMBER 1
a. For Optional Reversing Models:
1) This indicator dot is on when the drive (basket [tumbler]) motor is operating in the forward mode
(clockwise [CW] direction).
2. L.E.D. DISPLAY INDICATOR NUMBER 2
a. For Optional Reversing Models:
1) This indicator dot is on when the drive (basket [tumbler]) motor is operating in the reverse mode
(counterclockwise [CCW] direction).
3. L.E.D. DISPLAY INDICATOR NUMBER 3
a. Heat Circuit Indicator:
1) This indicator dot is on whenever the Phase 6 OPL microprocessor controller (computer) is calling
for the heating circuit to be active (on).
