RX video display
Standard ALIF (1002) units support one
Single Link video display at pixel clocks
up to 165MHz (equivalent to a maximum
resolution of 1920 x 1200 at 60Hz).
All ALIF dual units can simultaneously
support up to two Single Link high
resolution video displays at pixel
clocks up to 165MHz (1920 x 1200 at
60Hz maximum). ALIF2000 units can
alternatively support a single Dual Link very high Resolution video display at pixel clocks
up to 330MHz (equating to an example display mode of 2560 x 1600 at 60Hz).
2 (ALIF dual only) If required, connect the lead from the second video display to the DVI-D-2 socket on the RX unit rear panel.

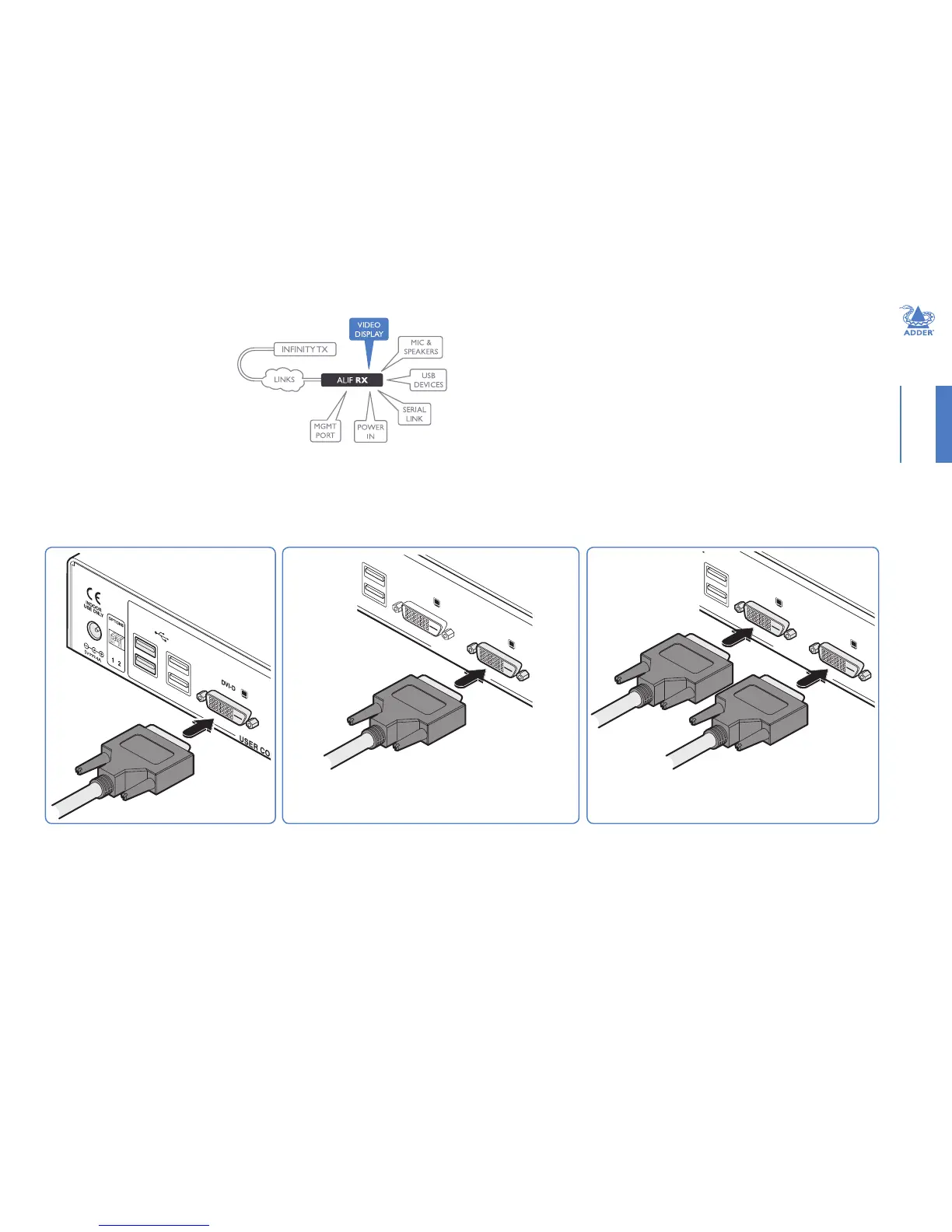

To connect video displays
1 Connect the lead from the primary video display to the DVI-D-1 (DVI-D on ALIF 1002 models) socket on the RX unit rear panel:
VSCD3 cable
to primary
video display
When using two single link DVI-D displays, connect an
additional video cable to the DVI-D-2 port of the RX unit.
To
secondary
video display
To primary
video display
ALIF (1002) ALIF dual ALIF dual
To video
display
Note: When using dual link on DVI-D-1 (not ALIF2020), the DVI-D-2
port will be disabled. If DVI-D-2 is already being used, then it must
be disconnected before dual link operation can occur on DVI-D-1.
