In operation, many ALIF installations require no intervention once congured. The TX and
RX units take care of all connection control behind the scenes so that you can continue
to work unhindered.
FRONT PANEL INDICATORS

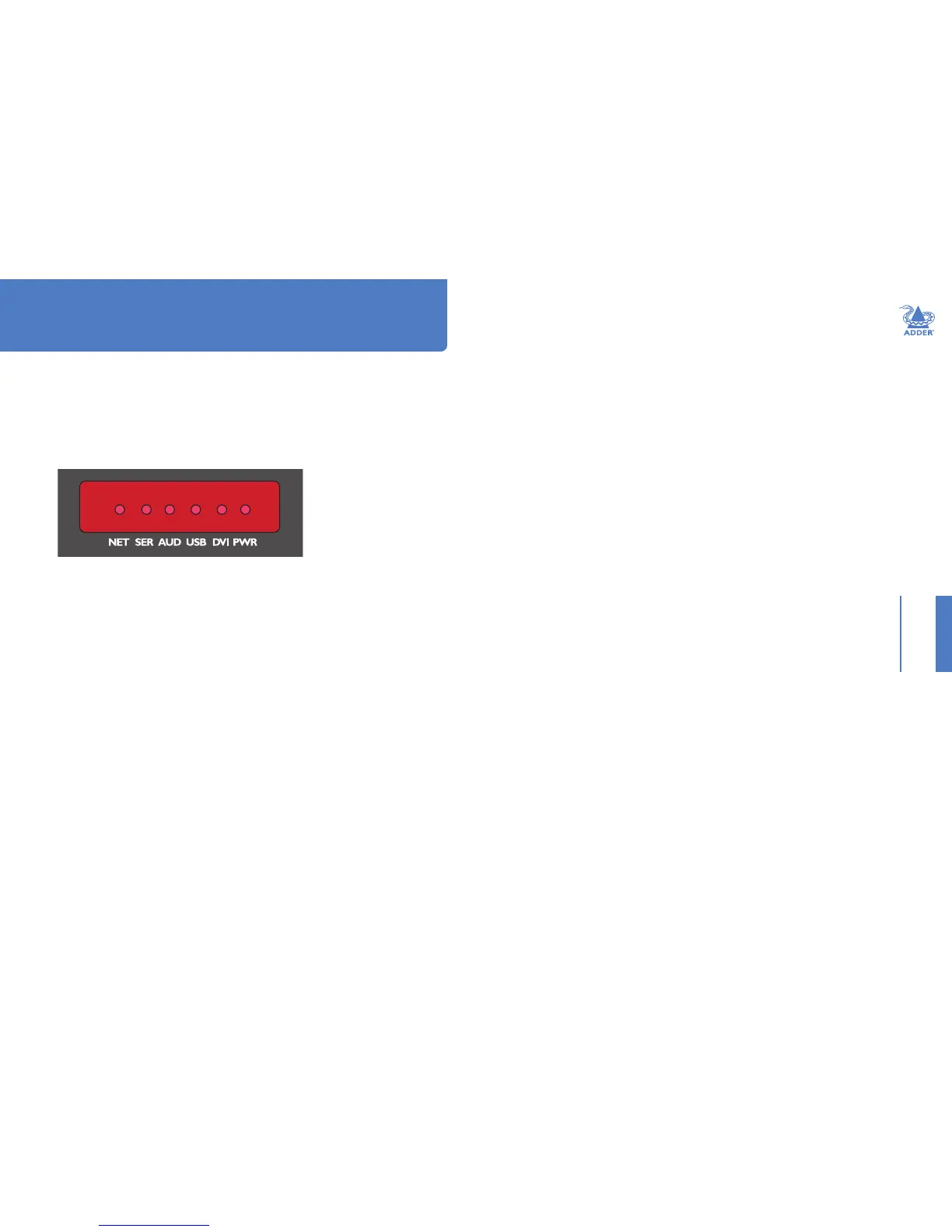

The six front panel indicators on each unit provide a useful guide to operation:
Operation
Indicators
These six indicators clearly show the key aspects of operation:
• NET On when valid network link is present.
• SER On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when USB is enabled and active.
• DVI On when the DVI Video channel is enabled and active.
• PWR Power indicator.
