General specications
Casing (w x h x d): 198mm (7.92”) x 44mm (1.76”) x 150mm (6.0”)
Construction: 1U compact case, robust metal design
Weight: 1.1kg (2.4lbs)
Mount kits: Rack mount - single or dual units per 1U slot.
VESA monitor / wall mount chassis.
Power to adapter: 100-240VAC 50/60Hz, 0.8A,
Power to unit: 5VDC 20W
Operating temp: 0ºC to 40ºC (32ºF to 104ºF)
Approvals: CE, FCC
9pin D-type
female
9pin D-type
female
Supported video modes
ALIF units support all VESA and CEA video modes.

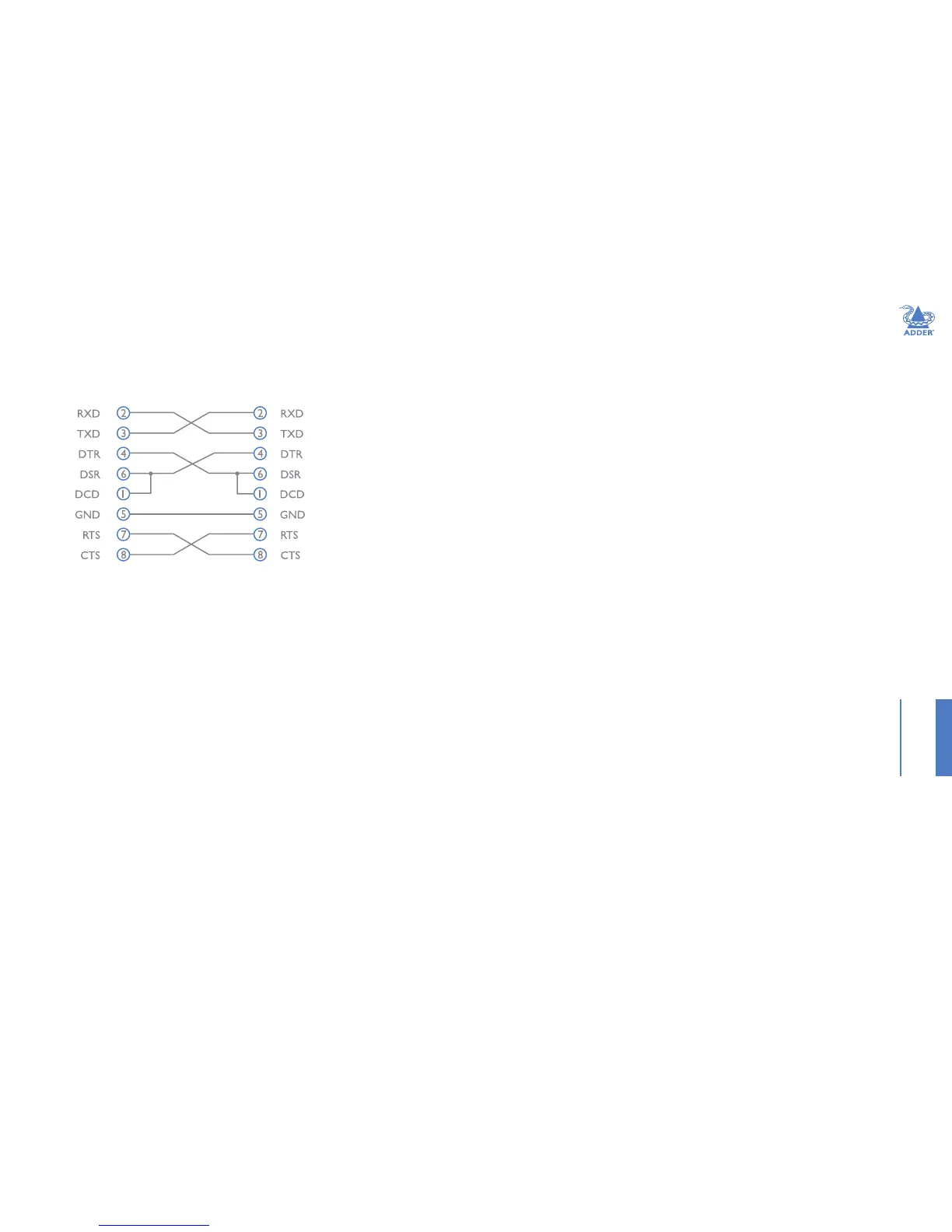

RS232 ‘null-modem’ cable pin-out
APPENDIX F - Cable pinouts, video modes and general specications
