Indicators
These six indicators clearly show the key aspects of operation:
• NET On when valid network link is present.
• SER On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when USB is enabled and active.
• DVI On when DVI video is enabled and active.
• PWR Power indicator.
Indicators
These six indicators clearly show the key aspects of operation:
• NET On when valid network link is present.
• SER On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when the USB link with the connected PC is active.
• DVI On when a video input signal from the PC is detected.
• PWR Power indicator.

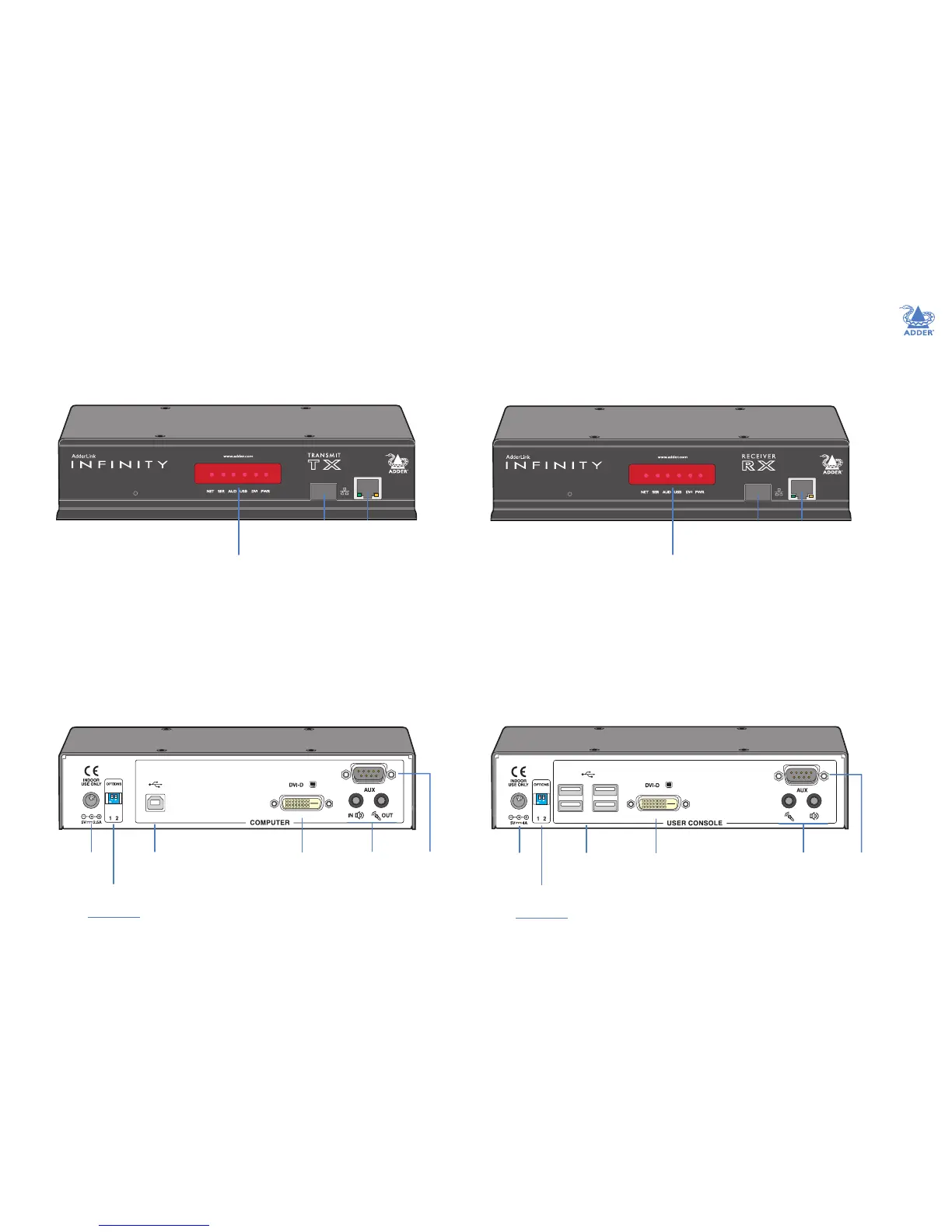

ADDERLINK INFINITY (1002) UNIT FEATURES
The ALIF 1002 units are housed within durable, metallic enclosures with most connectors situated at the rear panel -
the Ethernet ports are situated on the front panels. The smart front faces also feature the operation indicators.
ALIF 1002 transmitter - front ALIF 1002 receiver - front
System
(Gigabit
Ethernet)
port
ALIF 1002 receiver - rearALIF 1002 transmitter - rear
Audio
line
in/out
AUX
(serial)
port
USB
port
Options
switches
(further details)
Power
input
Video
input
Audio
line
in/out
USB
ports
Power
input
Video
output
AUX
(serial)
port
Teaming
port
Teaming
port
System
(Gigabit
Ethernet)
port
Options
switches
(further details)
