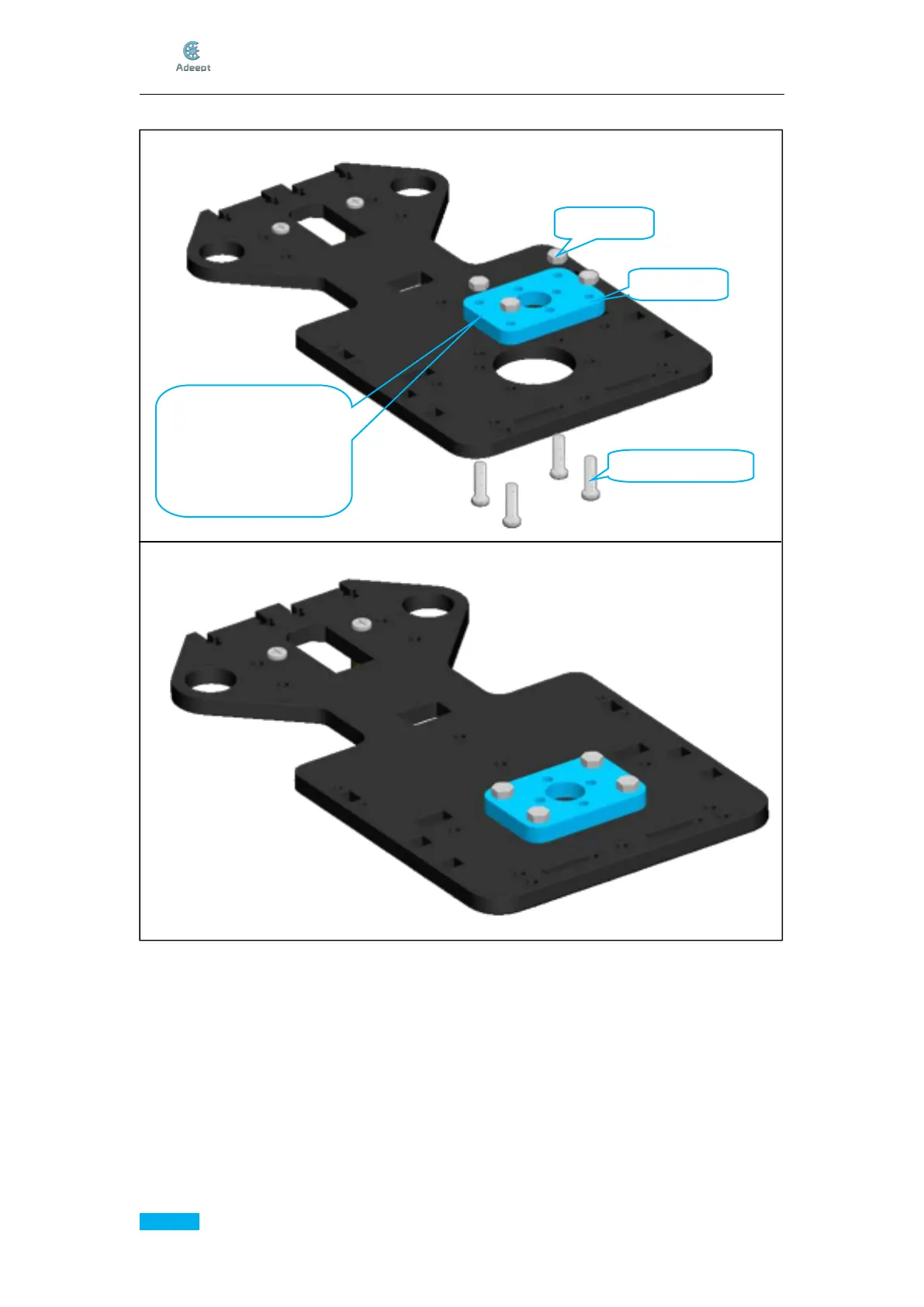

Effect diagram after assembling
2. Fix A06 on A01.
Assemble the following components
M3 Nut x4
A06 x1
For the convenience of
reading, some modules of
the manual will display
other colors; the actual
color shall prevail.
M3*12 Screw x4
