2.4. Front wheel assembly
1. Fix 3-CH Line Tracking Module on A03.

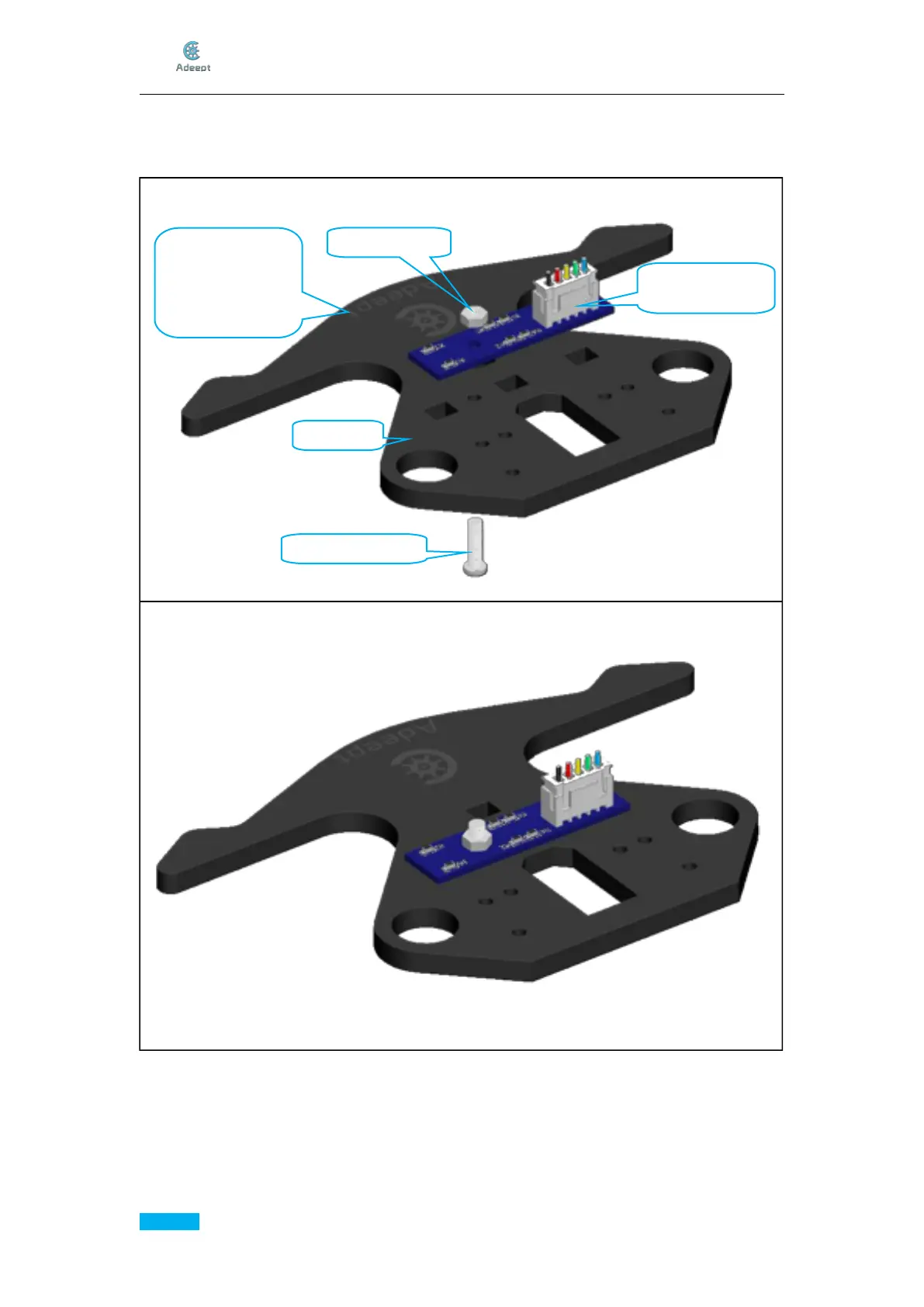

Assemble the following components
3-CH Line Tracking
Module should be
fixed on the side
with the logo.
M3 Nut X1
3-CH Line Tracking
Module X1
A03 X1
M3*12 Screw X1
Effect diagram after assembling
