2.3. Rear wheel assembly

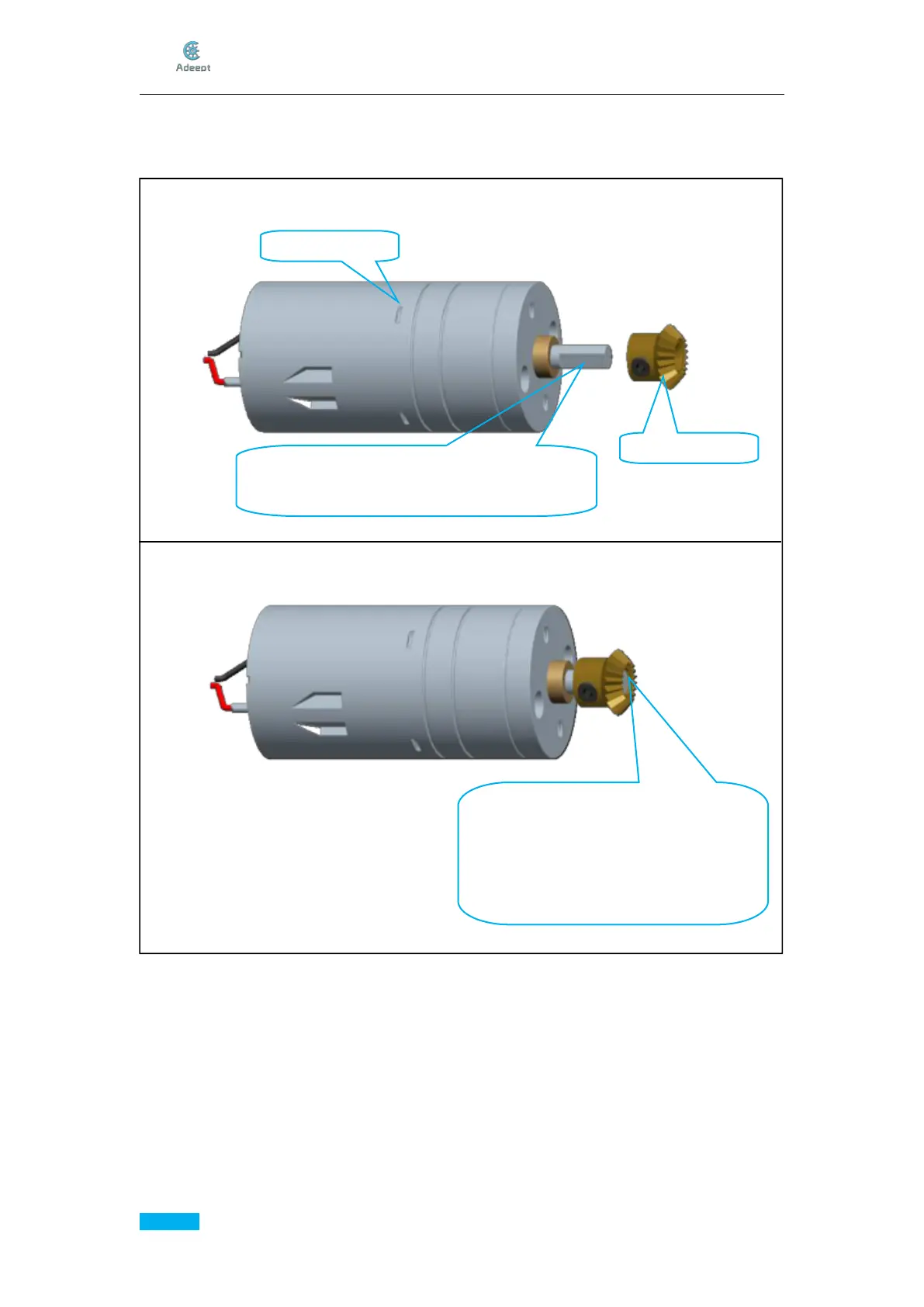

1. Fix the bevel gear on the Motor.
Assemble the following components
Motor x1
Bevel gear
The M3*3 Locking Screw on the bevel gear
should be fixed at this plane of the Motor's
rotating shaft
Effect diagram after assembling
Keep the gear tooth of the bevel gear
flush with the end face of the rotating
shaft of the Motor, tighten the the
M3*3 Locking Screw and make sure
the bevel gear won’t fall off.
