2.8. Circuit Connection

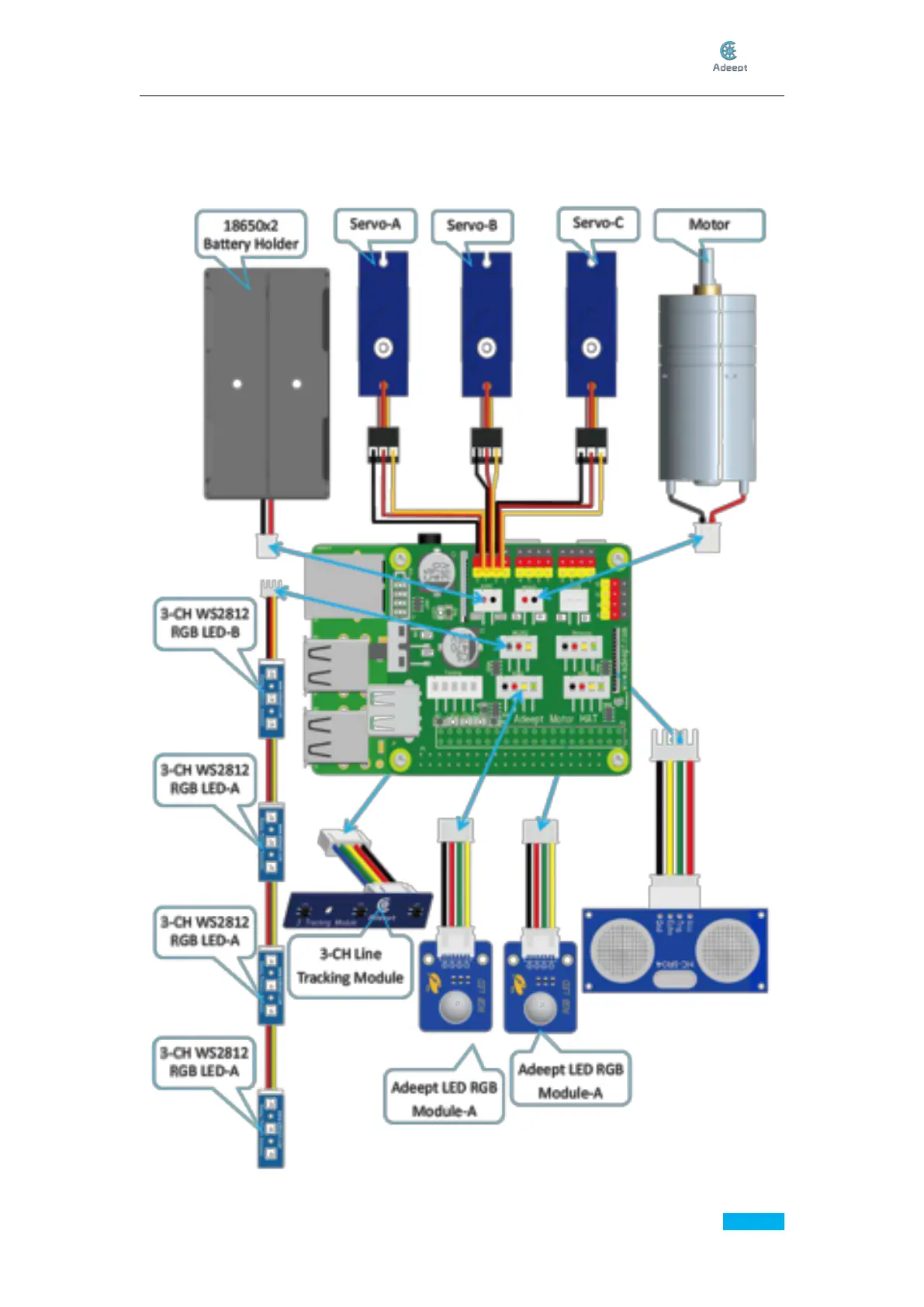

Connect components based on the figure.
Pay attention to match the wire and port and not connect inversely.
