9. In the same way, fix another S12D4 Coupling to a tire..
10. Fix the bevel gear on the D3.9L120 Axle.

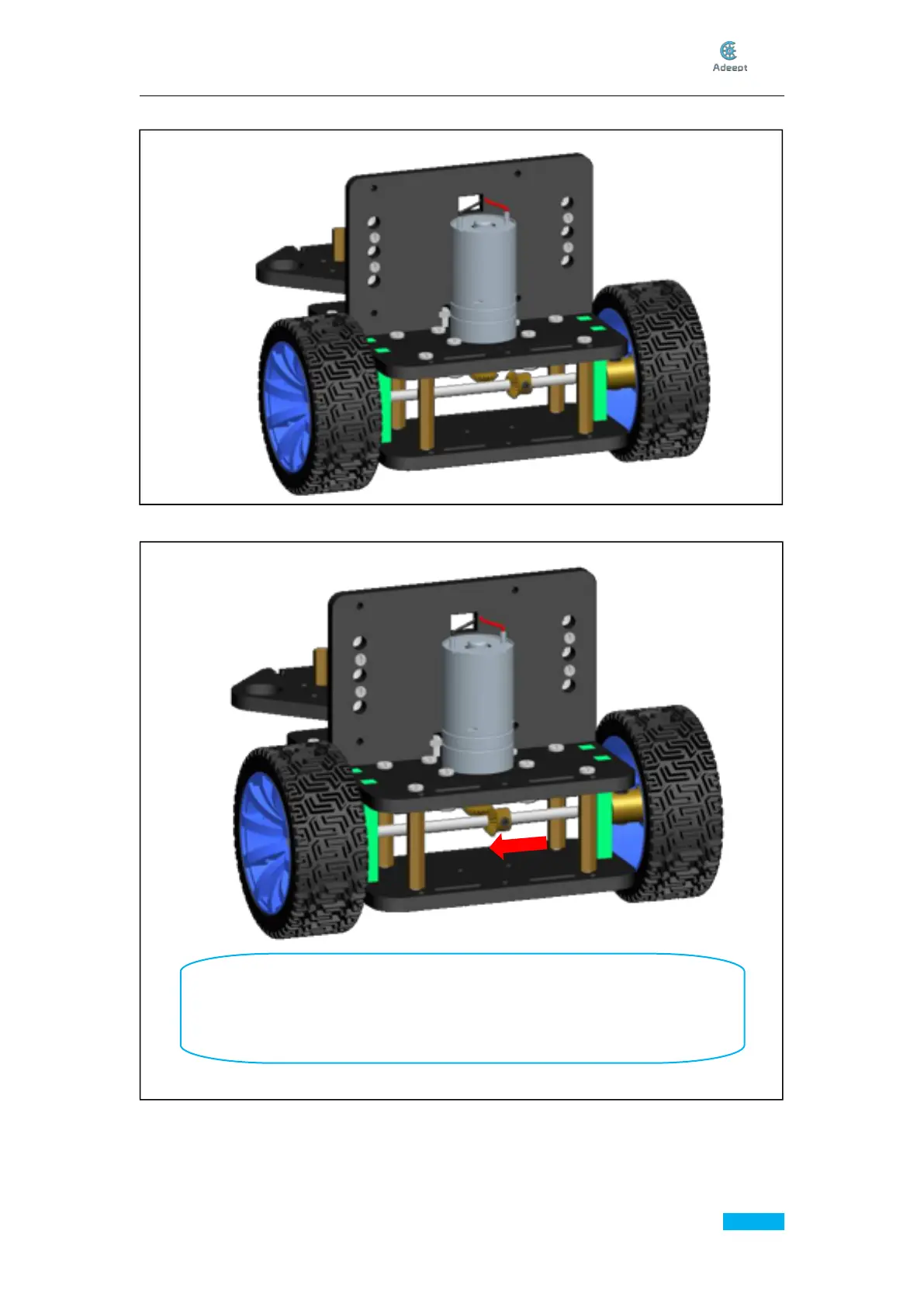

Effect diagram after assembling
Effect diagram after assembling
Push the bevel gear on the D3.9L120 Axle from right to left withonehand
until it engages with the bevel gear on the Motor, and then tighten the M3*3
Locking Screw of the bevel gear on the D3.9L120 Axle with the other hand to
fix the bevel gear.
