ADEEPT PiCar-B - Page 26

www.adeept.com
22

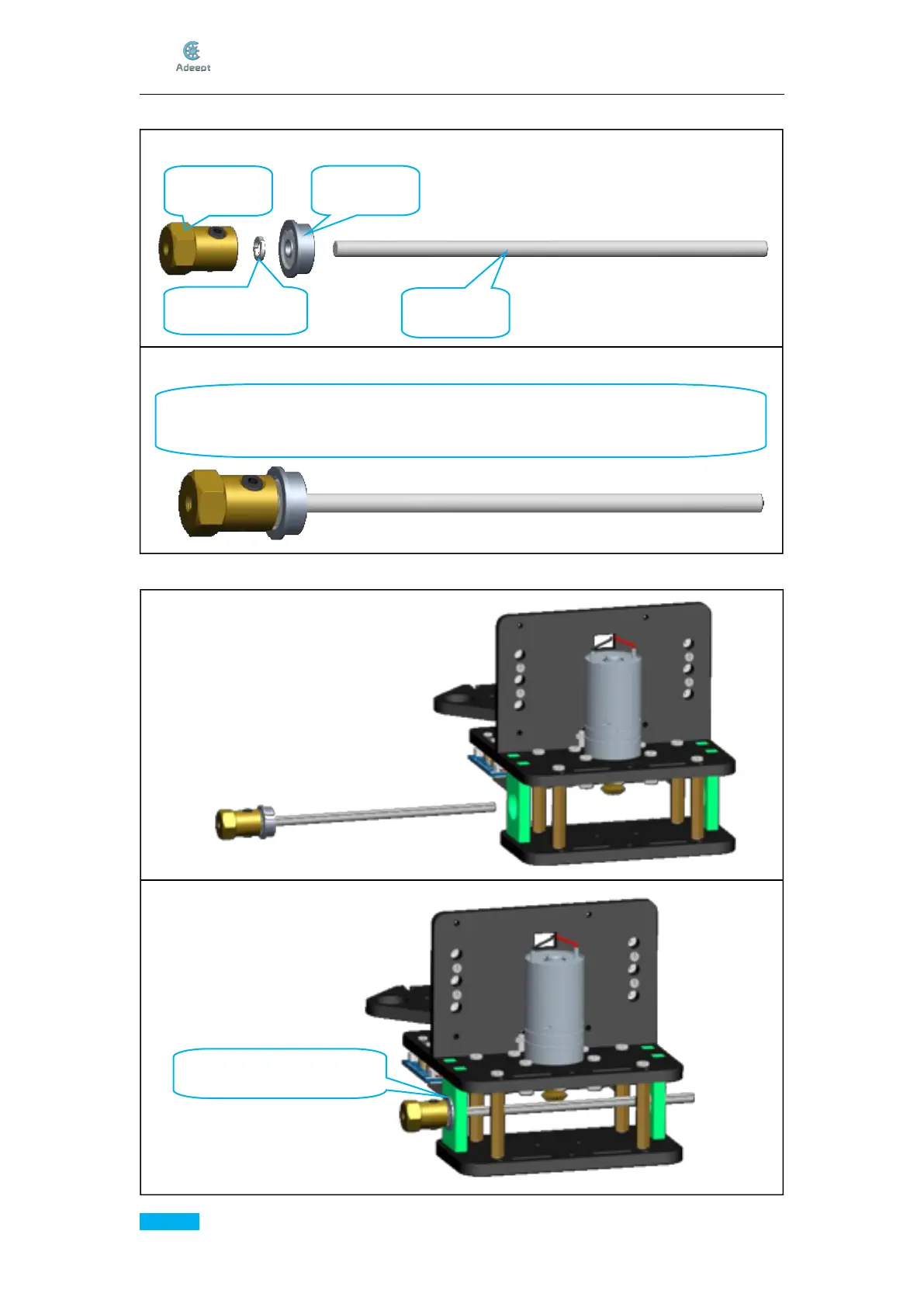

5. Take one S12D4 Coupling and fix it on the D3.9L120 Axle.
6. Then pass the D3.9L120 Axle through the A10.
Assemble the following components
F624ZZ
Bearing x1
S12D4
Coupling x1
D3.9L120 Axle
x1
M4 Spring Washer
X1
Effect diagram after assembling
Insert D3.9L120 Axle to the bottom end of the S12D4 Coupling shaft hole and
tighten the M4*4 Locking Screw on the S12D4 Coupling
Assemble the following components
Effect diagram after assembling
F624ZZ Bearing should be
embedded in the A10
