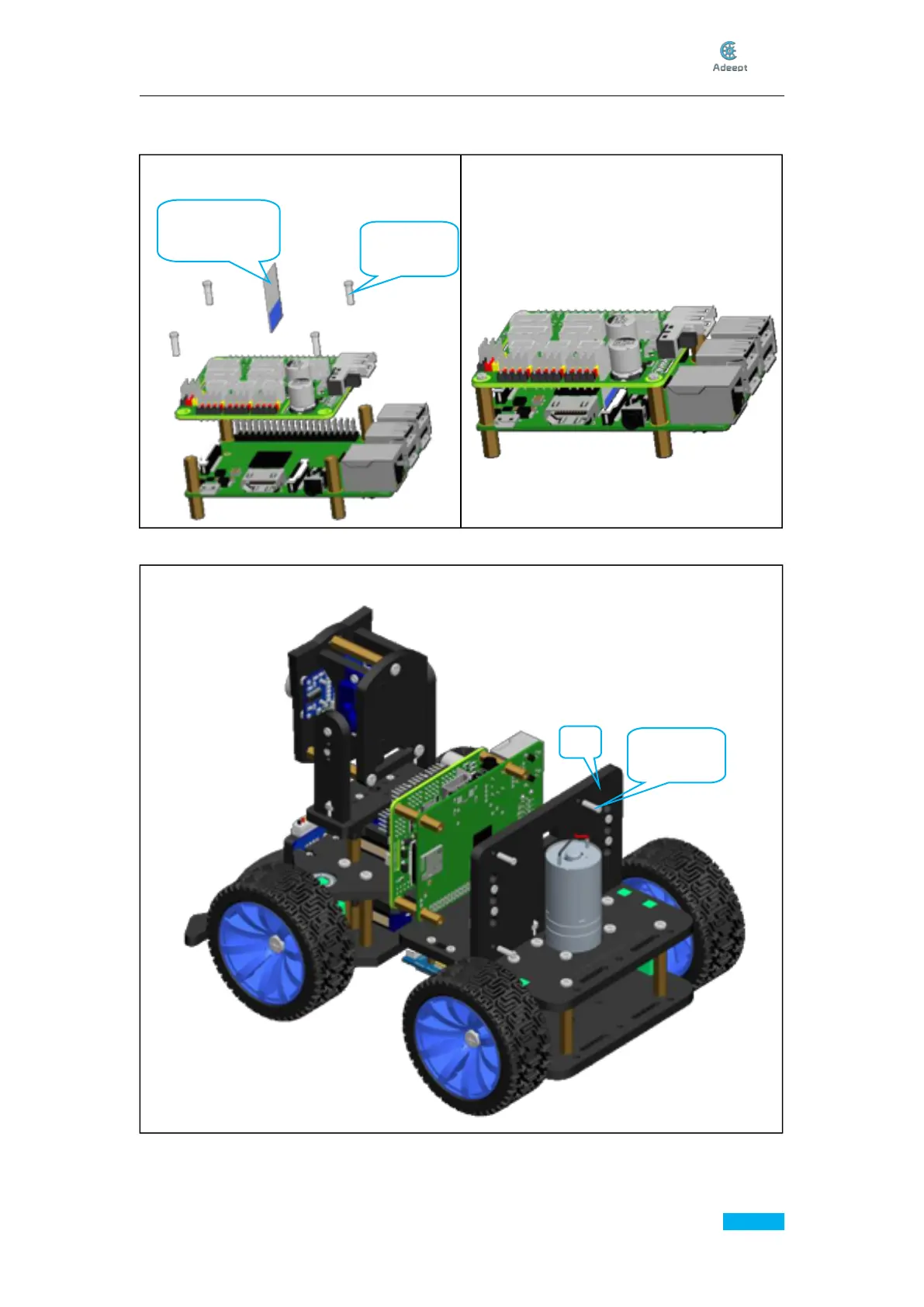

2. Connect the other end of the Raspberry P1 Camera Ribbon to the Raspberry Pi via Adeept
Motor HAT and fix the Adeept Motor HAT to the Raspberry Pi.
3. Fix the Raspberry Pi on the A02.
Effect diagram after assembling
Assemble the following components
Raspberry P1
Camera Ribbon
M2.5*8
Screw X4
Assemble the following components
A02
M2.5*8
Screw X4
