INSTALLATION
16

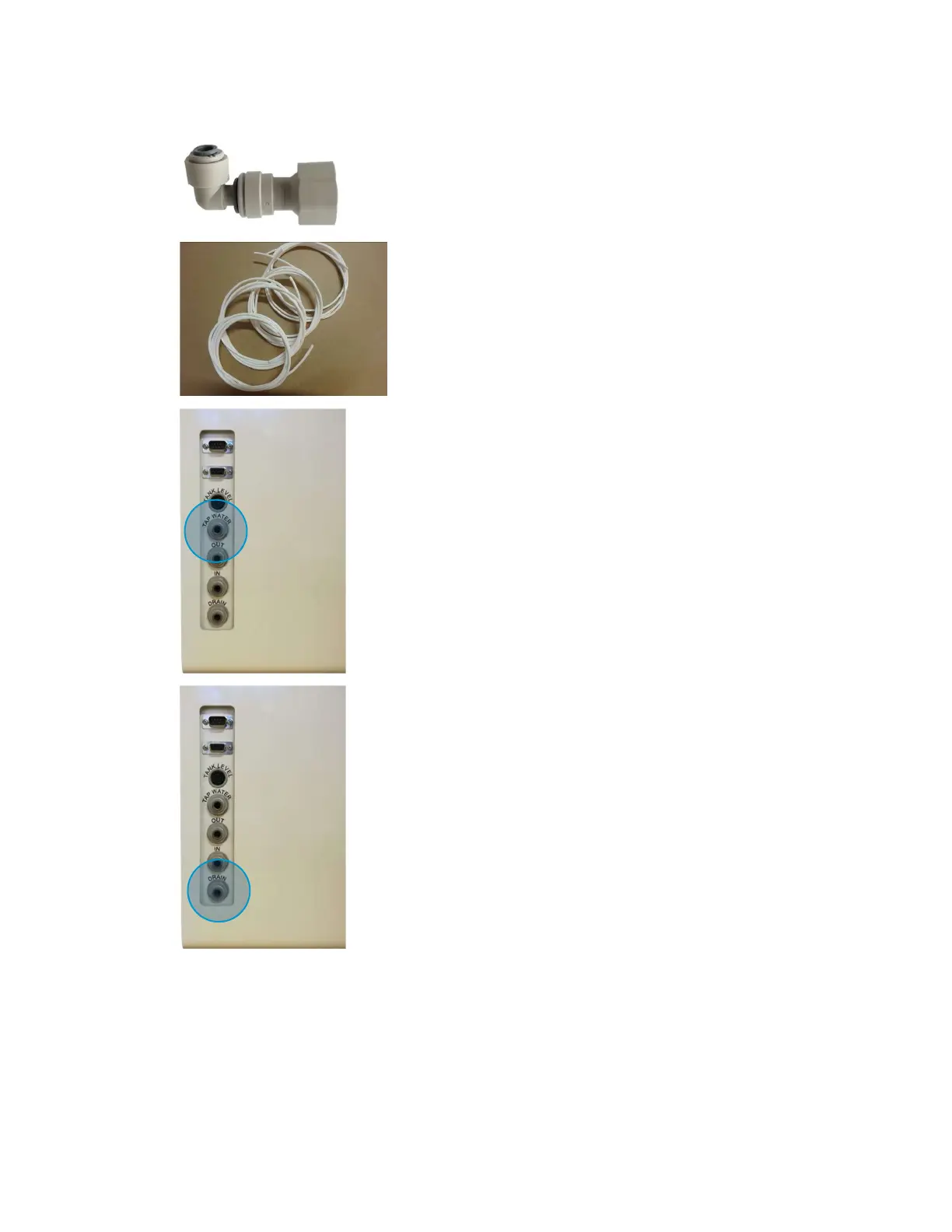

Connection of tubing
[1]
Locate the 1/2” NPT thread adapter
[2]
There are overall four 1/4” JG tubes in the set.
You should connect one 1/4” JG tube to the
1/2” NPT thread adapter
[3]
Connect the feed water to the
1/4” JG connection marked TAP WATER
[4]
Connect 1/4” JG connection marked DRAIN to
the local drain using 1/4” JG plastic tube
