NCT-04/03/02 Punch CNC System (Commissioning Manual)
3) Mold pin output clamping effective level: P1.090;
4) Mold pin insertion detection effective level: P1.086;
5) Mold pin unplug detect effective level: P1.087;
2.5.3 T-axis Home Debugging
1) Install the home detection switch;
2) Set T-axis offset; related parameter: P1.039 T-axis zero point offset;
3) Set T-axis direction clearance compensation; related parameter: P1.030;
4) Set T-axis home speed: related parameter: P1.050;
5) Set T-axis home acceleration: related parameter: P2.069;

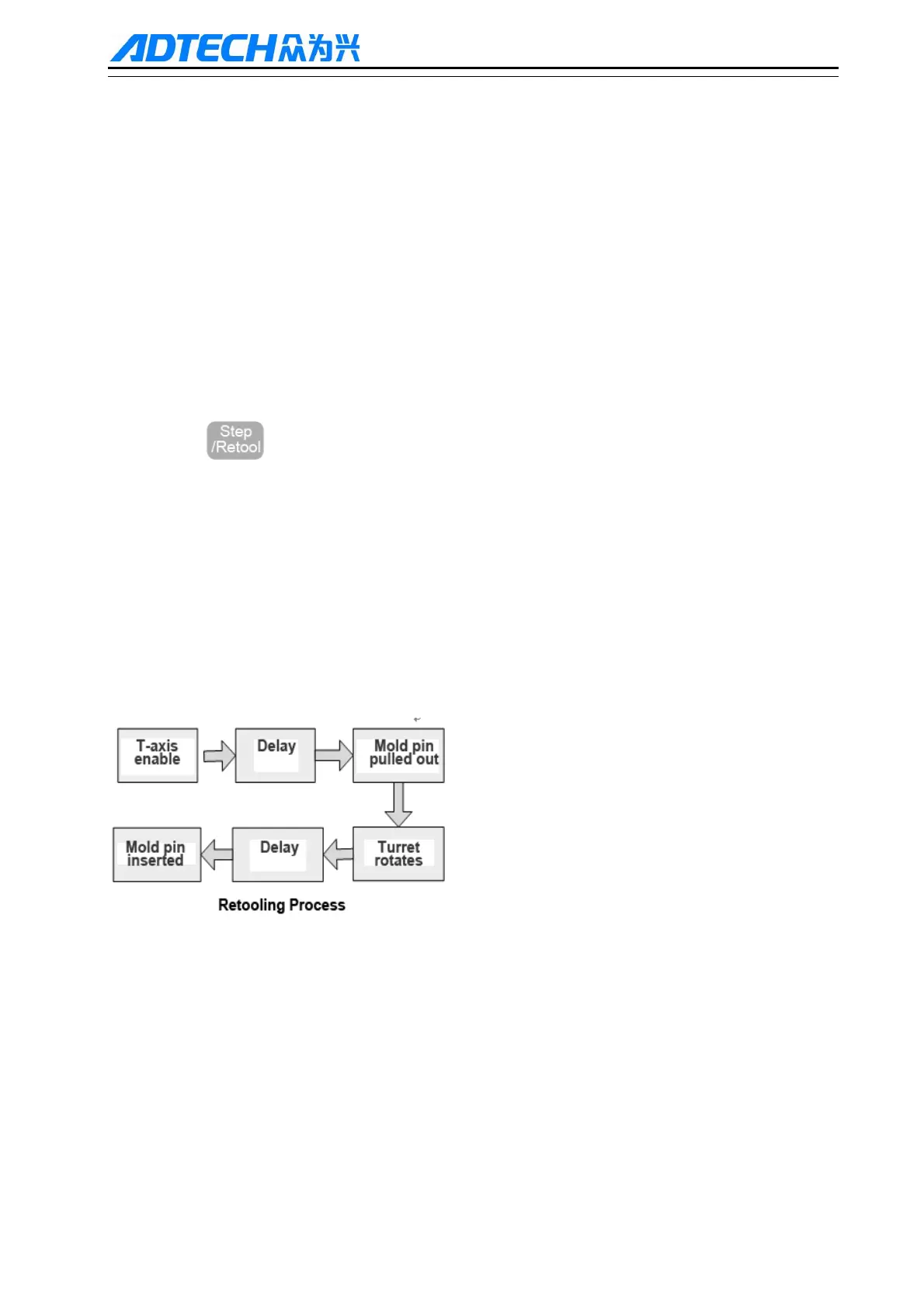

2.5.4 Turret Trial Run
1) Press the button to switch the work mode to "Retool";
2) Press T+/T- to move the turret for a station;
3) In MDI, enter the code to test retooling
0 Note:
1) The system integrates turret retooling debugging function; P1.1 10 Turret retooling debugging enabled;
1: When the turret is in position, the mold pin is not inserted; it can be inserted manually;
0: When the turret is in position, the mold pin is automatically inserted;
2) P2.099 servo T-axis enable control is 1; the retooling process is
2.5.5 Retooling Speed Adjustment
T-axis parameters
Speed: P1.011 T-axis rapid traverse rate;
Initial speed: P1.015 T axis starting rate;
Acceleration: P1.019 T-axis acceleration;
