NCT-04/03/02 Punch CNC System (Commissioning Manual)
Punching mode Single Mechanical, see P1.078 for details
Time Mechanical, see P1.078 for details
Hydraulic Hydraulic, see P1.078 for details
Distance Mechanical, see P1.078 for details
Punching lock Off Feeding & punching
ON Feeding only
3.7.2 When to start feeding? When to off the clutch?

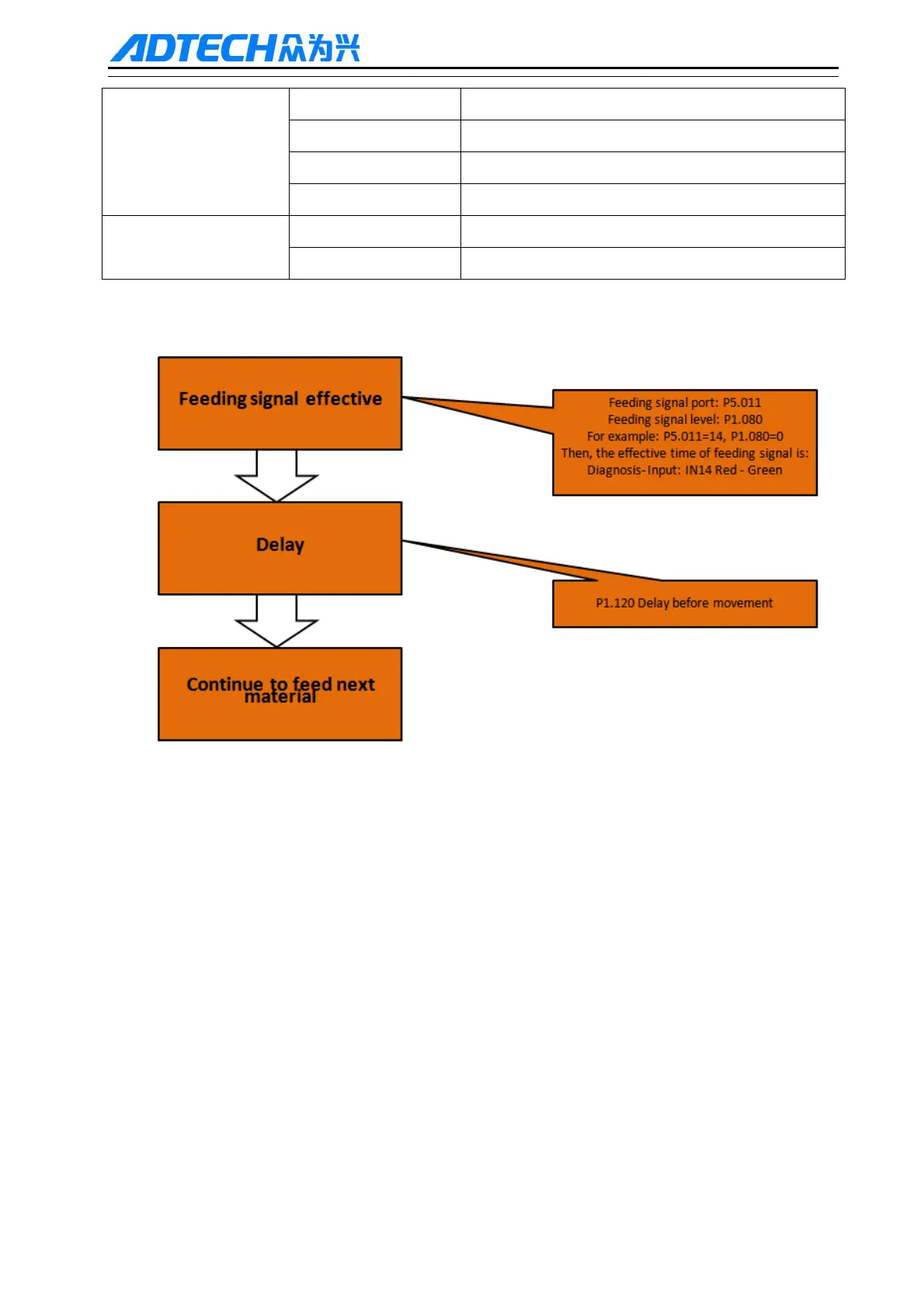

Fig. 3-2 is mechanical feeding flow chart, and Fig. 3-3 is mechanical off clutch flow chart.
Mechanical feeding flow chart
Fig. 3-2
To Next Page
