Advanced Control C220 Series - Page 73

Parameter Description
C220/C420G General Flux Vector Control Inverter User Manual
72
F1-09
F1-10
F1-11
F1-12
Fmax

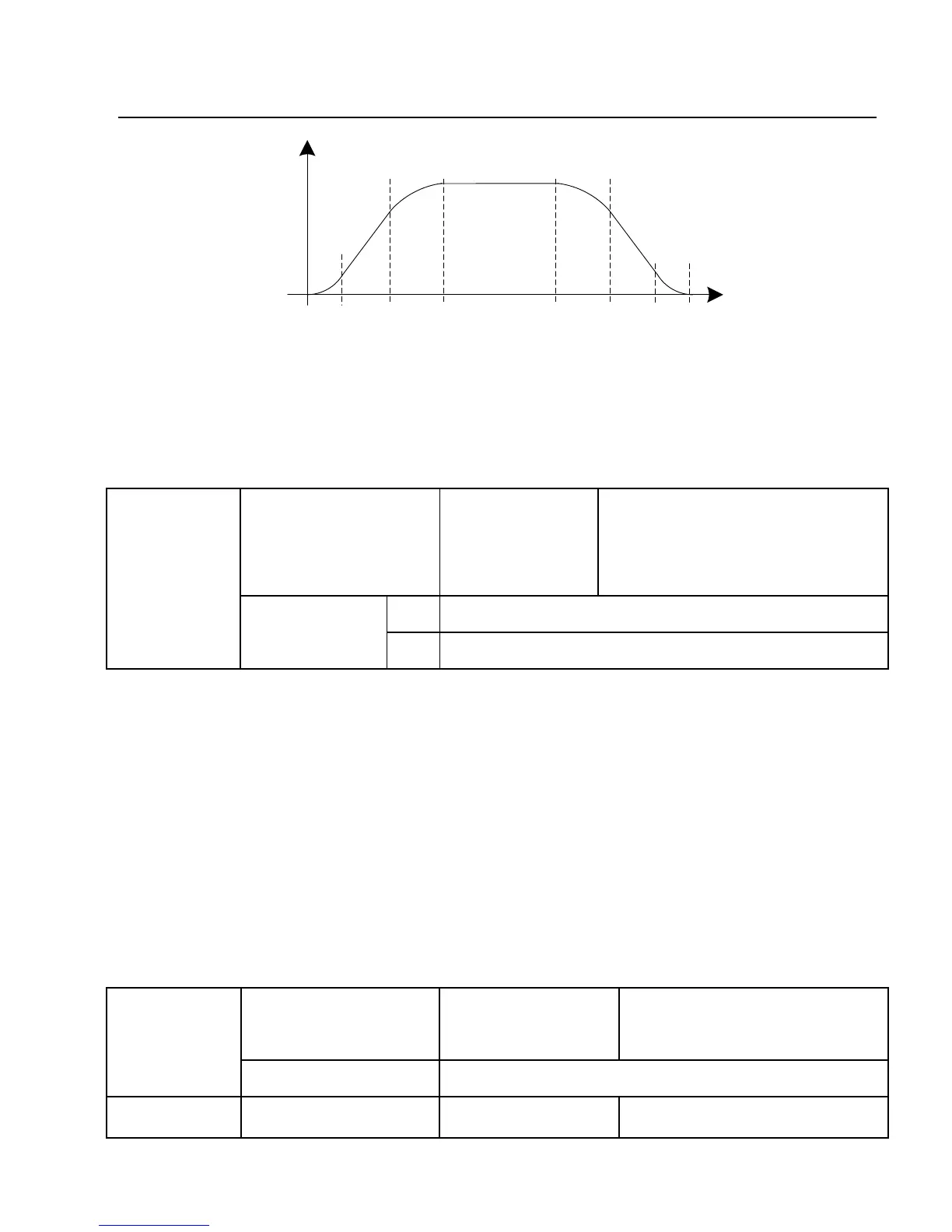

Fig.5-2 Schematic Diagram for S-curve Acceleration/deceleration
F1-13
Stop model
factory
default
value
0
setup range
0
Decelerate stop
1
free stop
0: Deceleration stop
After the stop command, the inverter reduces the output frequency according to
deceleration mode and the defined acceleration /deceleration time ,and will stop
after the frequency drops to zero
1: free stop
After the stop command, the inverter will end the output immediately. The load will
is free to stop according to the mechanical inertia.
F1-14
Brake beginning
frequency at stop
factory default
value
0.00Hz
setup range
0.00Hz
～
maximum frequency
F1-16
DC brake
factory default
0%
