Saddle
ORIGINAL INSTRUCTIONS | ADVANCED | 01.2022 | 1002021-01
Clamp with quick release
1
2
4
3

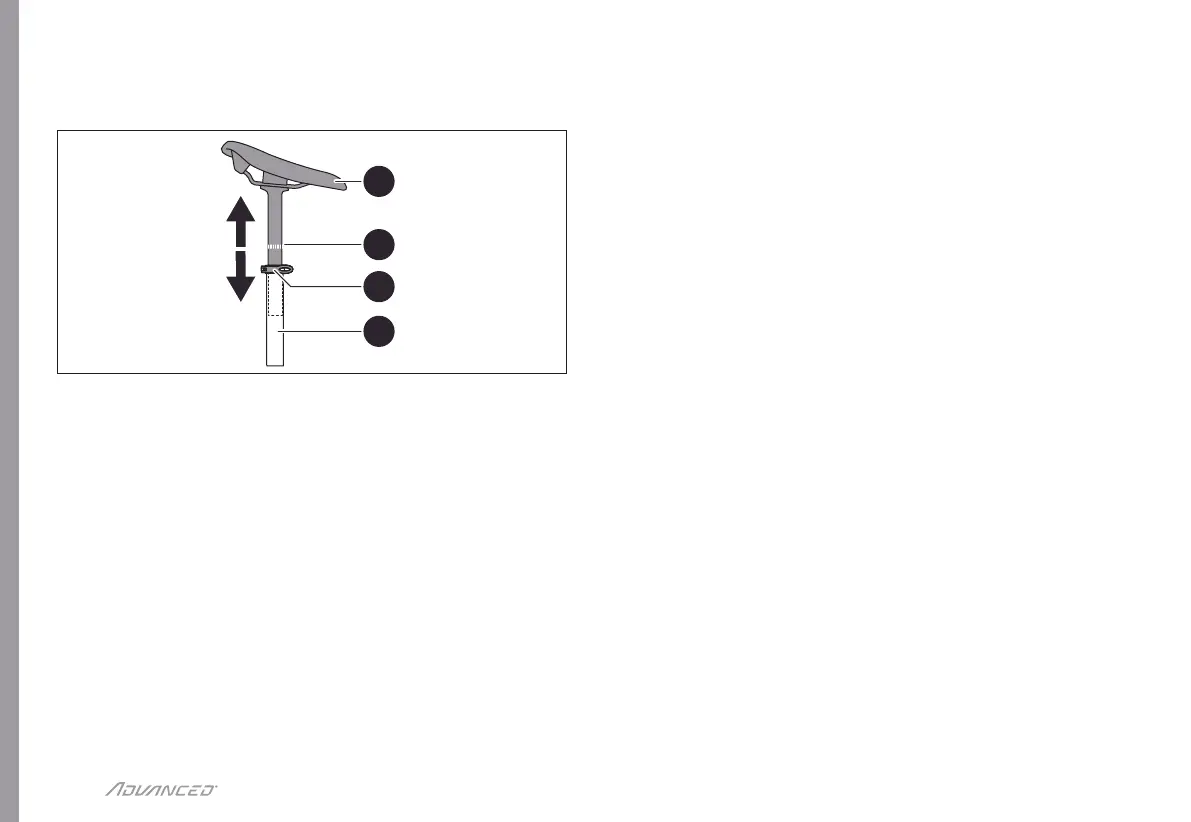

Abb.: 18 Adjusting the saddle height (clamping with quick release)
1. Saddle
2. Seat post with marking
(minimum insertion depth)
3. Clamp with quick release
4. Seat tube
f Swing the quick release outwards.
f Adjust the saddle to the desired height.
f Observe the minimum insertion depth of the seat
post.
f Align the saddle with the frame when the saddle is at
the correct height.
f To fix the adjustment, swing the quick release inwards
until it rests against the seat tube.
f If the quick-release lever cannot be swivelled up
to the seat tube, reduce the pretension and turn
the adjustment screw anti-clockwise.
f Swing the quick-release lever back inwards until
it rests against the seat tube to close the seat
post clamp.
f Check whether the saddle can be twisted.
f If the saddle can be twisted, increase the
pretension of the quick release and turn the
adjustment screw clockwise.
