ADAM-4000 Series User Manual 28

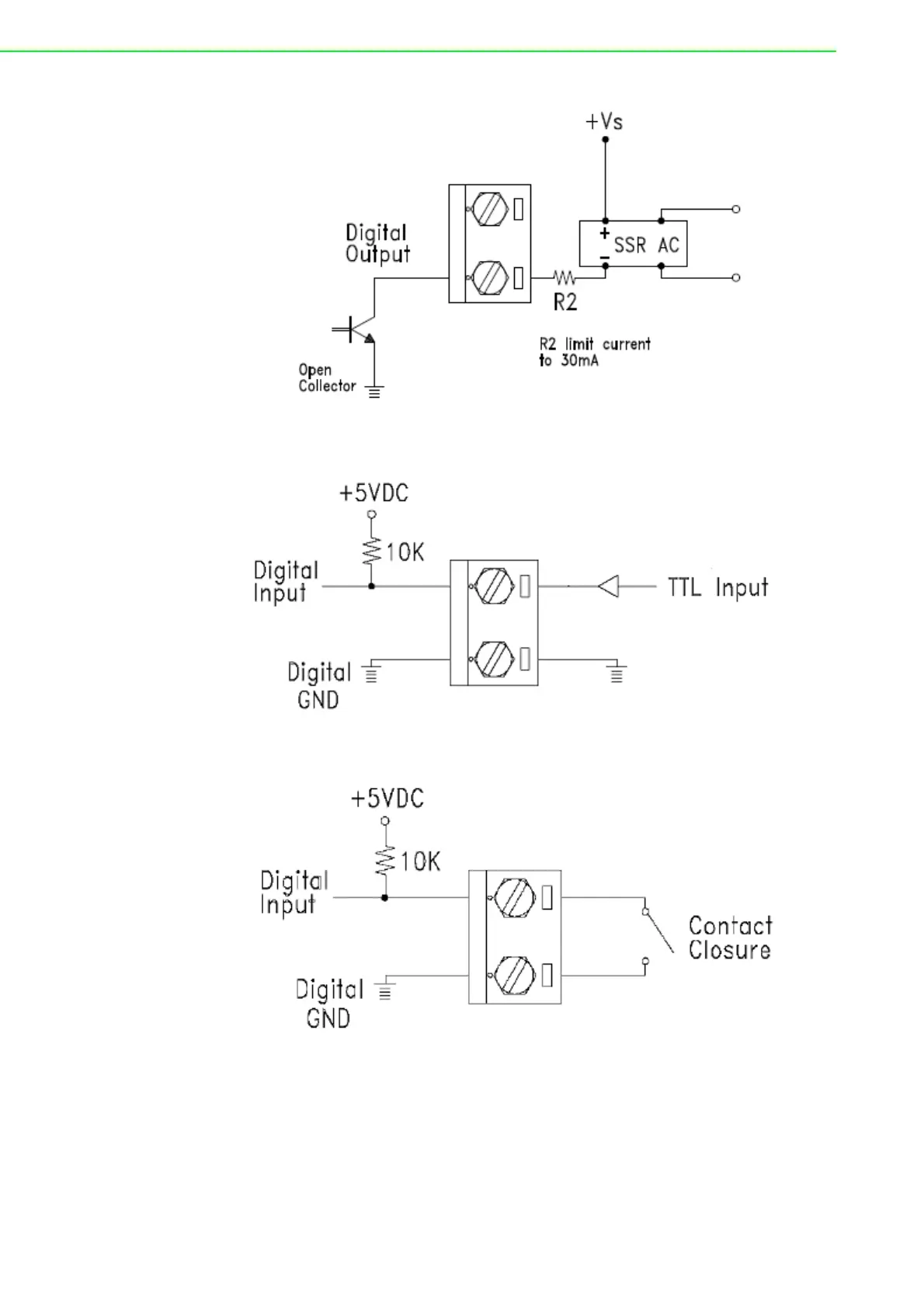

Figure 3.6 ADAM-4011/4011D Digital Output Wiring Diagram Used with SSR (HI-
LO alarm)
Figure 3.7 ADAM-4011/4011D Digital Input Wiring Diagram Used with TTL
Figure 3.8 ADAM-4011/4011D Digital Input Wiring Diagram Used with Dry
contact
