3.20.1 Specification
Number of Relay Output Channel: 8
Digital Output: (Source)
– 4 Form A, 4 Form C
– AC 5A@250V
– DC 5A@30V
– ON/OFF: 5ms/ 5.6ms
Power Consumption: 2.6 W
Supports Modbus/RTU protocol
I/O Connector Type: 13-pin plug-terminal * 2
Supports Safety Value: Force the DO channels to safety status when communi-
cation is in time-out and over pre-defined period.
3.20.2 Wiring

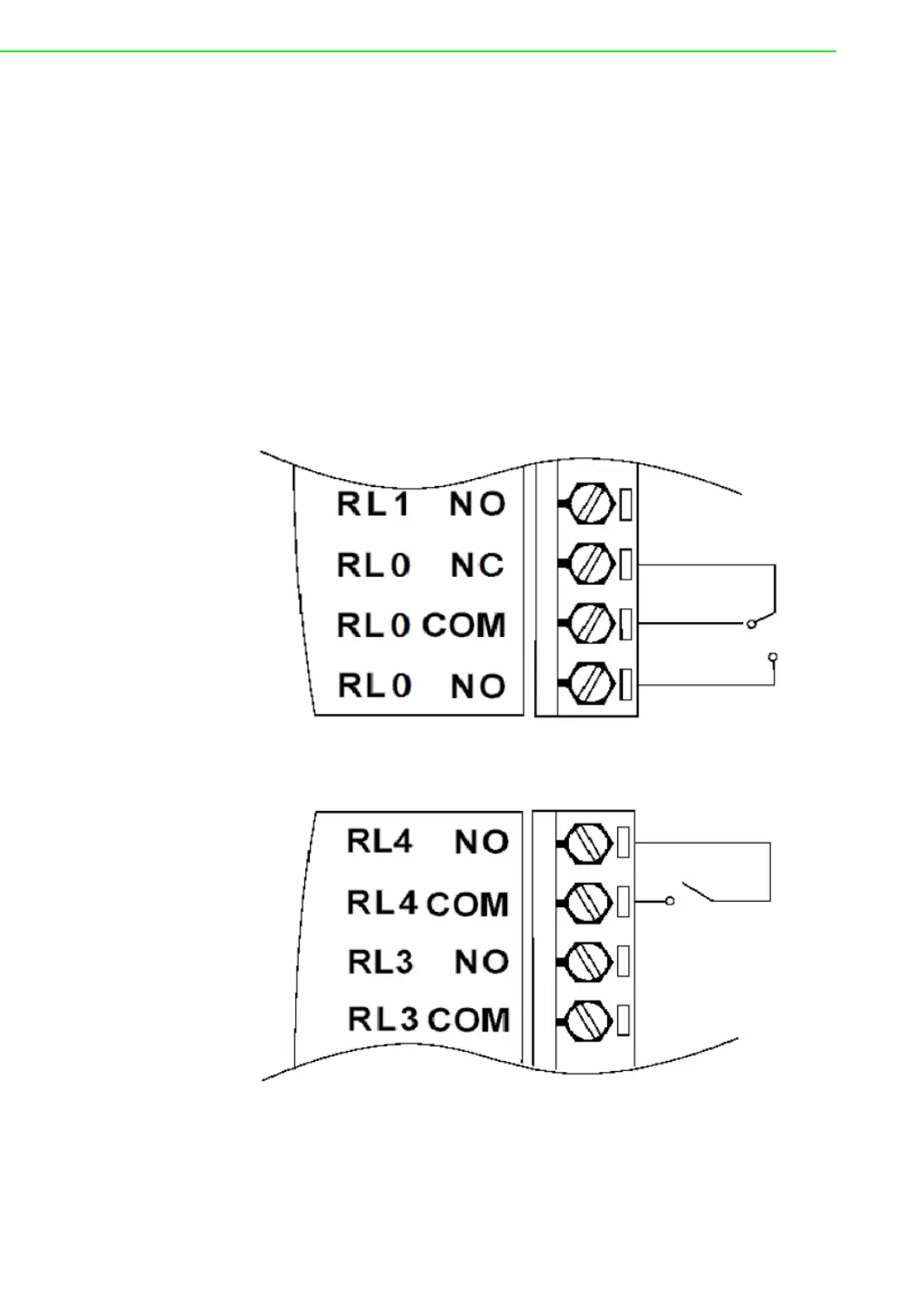

Figure 3.73 ADAM-4069 Form C Relay Output
Figure 3.74 ADAM-4069 Form A Relay Output
