ADAM-4000 Series User Manual 38
3.6 ADAM-4015T 6-channel Thermistor Input
Module
A Thermistor Module is popularly used for temperature measurement. Unlike the tra-
ditional design, the ADAM-4015T provides six thermistor input channels for thermis-
tor signal. It is an effective solution in industrial & building automation. Normally,
broken external wires will lead to an inaccurate current value. The ADAM-4015T pro-
vides a broken wire detection function so users can easily fix the problems.

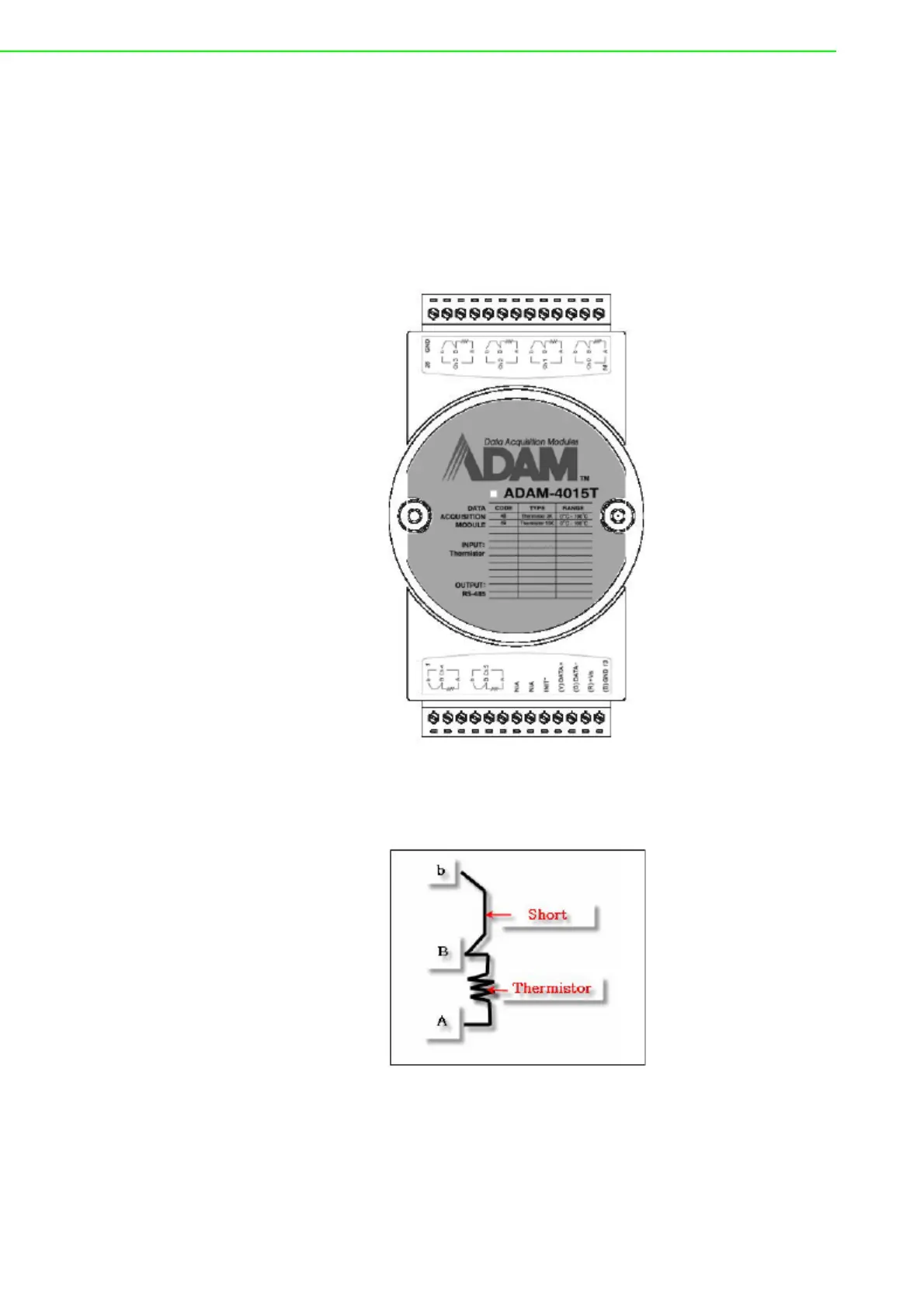

Figure 3.19 ADAM-4015T 6-channel Thermistor Input Module
3.6.1 Application Wiring
Figure 3.20 ADAM-4015T Thermistor Input Module Wiring Diagram
