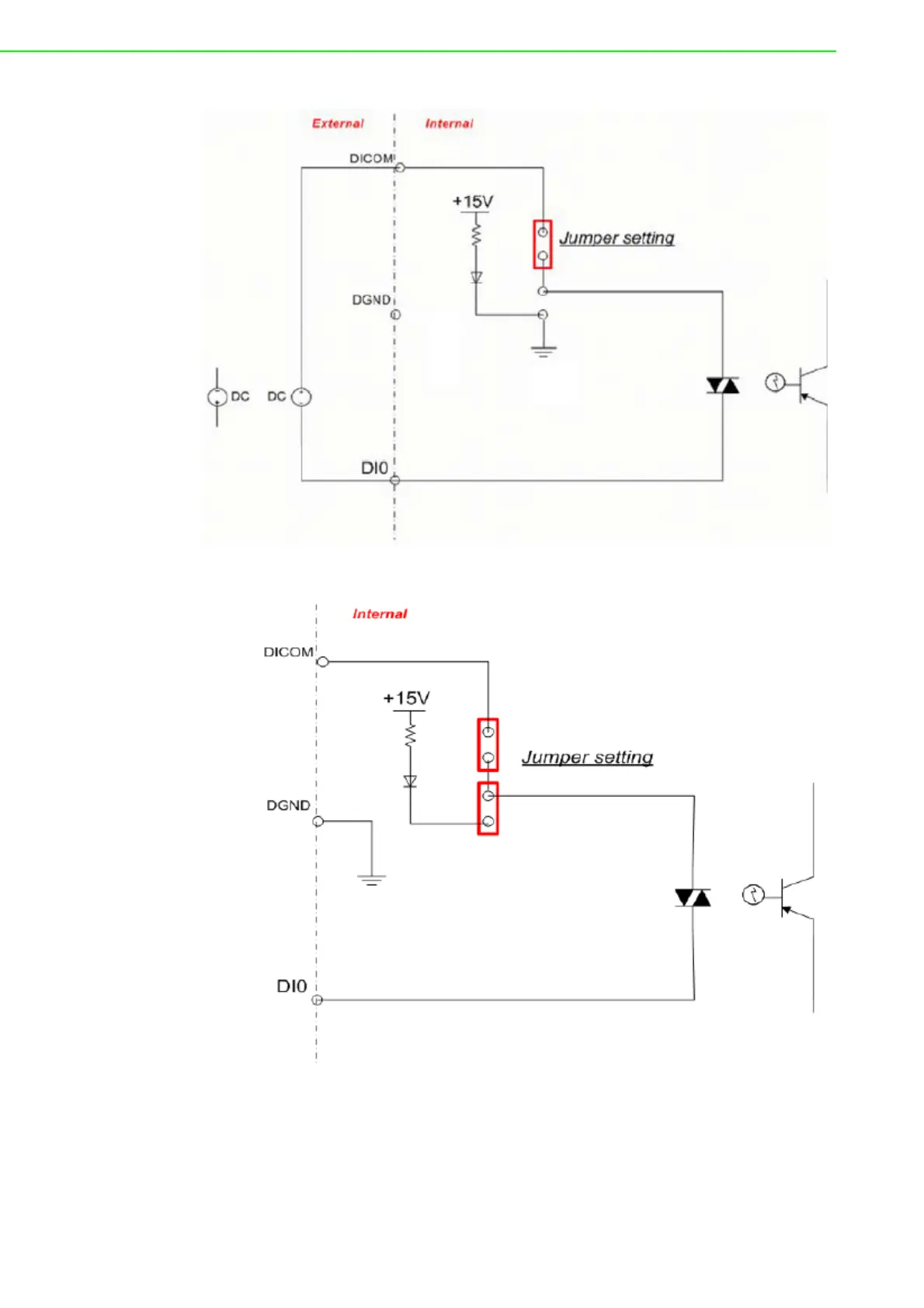

Figure 3.59 ADAM-4055 Digital Input Wet Contact Diagram (Internal)
Figure 3.60 ADAM-4055 Default Jumper Setting for the Digital Input Wiring
(Supports dry and wet contact digital inputs at the same time)
