19 ADAM-6300 User Manual
Chapter 3 Introduction to Digital I/O
Figure 3.2 Application Wiring (Side View)

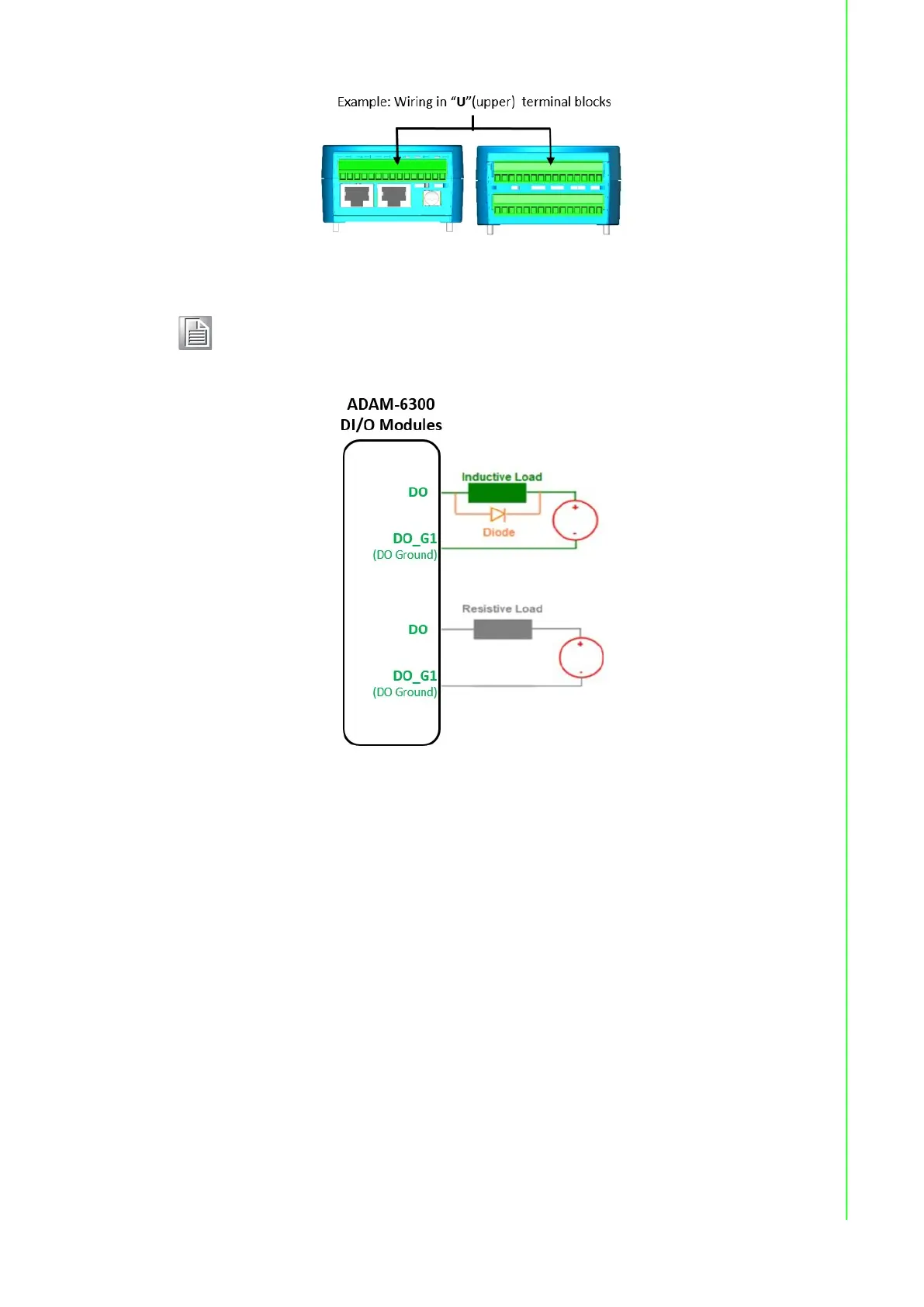

Figure 3.3 DO Output Wiring (Resistive and inductive load)
Note! It suggest that user use fly-diode when customer use inductive load.
