4.6.2 Digital input

Please see the below table for I/O channel of ADAM-6300 series.

4.6.2.1 DI mode introduction

There are two type of DI channels in ADAM-6300. The first type of DI channel is only

to support DI mode, the second type of DI channel is to support DI, counter, fre-

quency mode. The latter channel supports 3 kHz counter input and 3 kHz frequency

input.

4.6.2.2 DI configuration in OPC UA tab

1. DI mode:

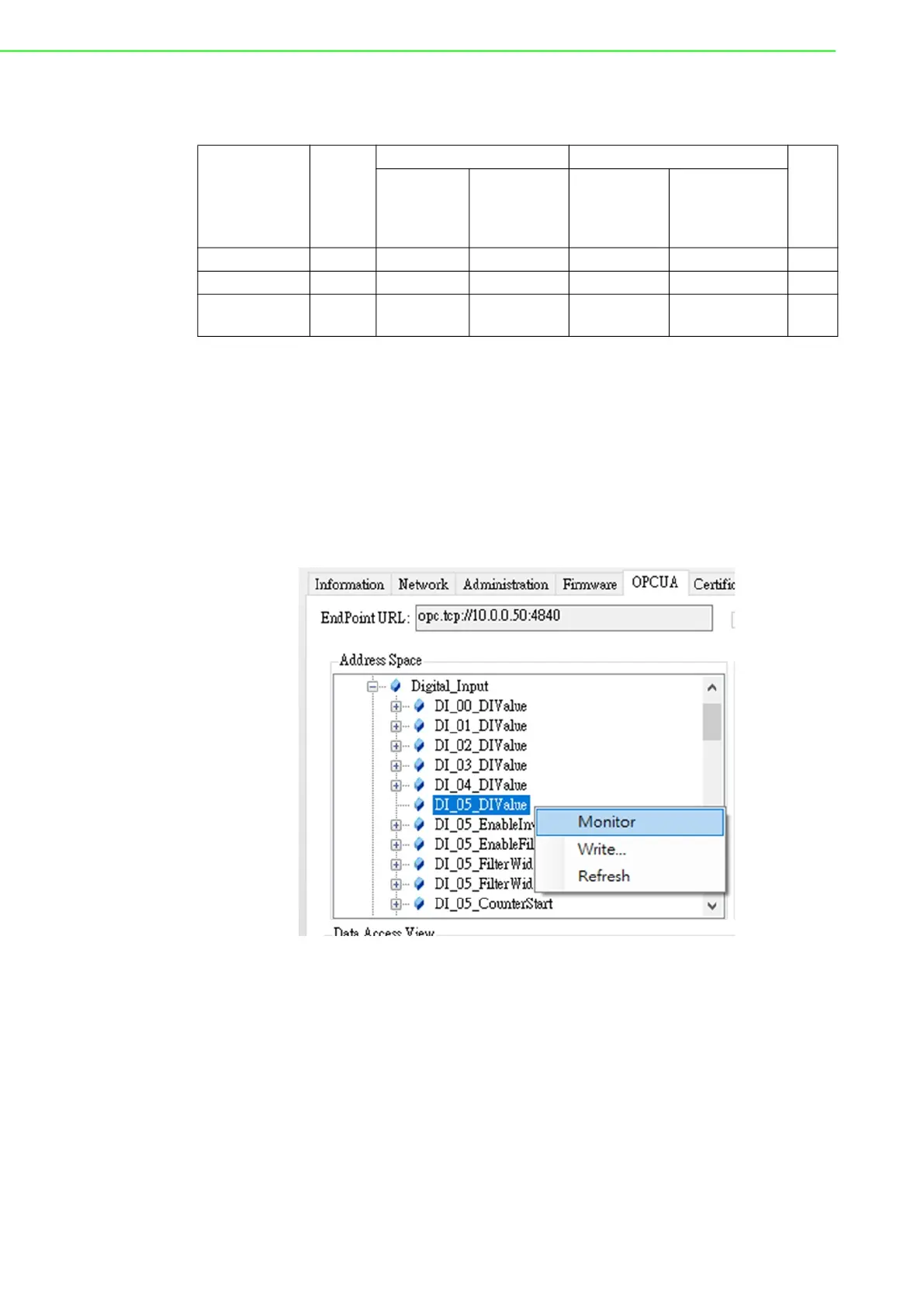

A. Select DI_(channel)_DIValue and right click Monitor to monitor this DI sta-

tus.

Model

Analog

Input

Digital Input Digital Output

SSR

Relay

(VDC)

Support DI

mode

Support DI,

counter and

frequency

mode

Support DO

mode

Support DO,

pulse output,

pulse output

continue mode

ADAM-6317 AI0~AI7 DI0~DI4 DI5~DI10 DO0~DO3 DO4~DO9 N/A

ADAM-6350 N/A DI0~DI11 DI12~DI17 DO0~DO11 DO12~DO17 N/A

ADAM-6360D N/A DI0~DI7 DI8~DI13 N/A DO0~DO5

Relay

0~7
