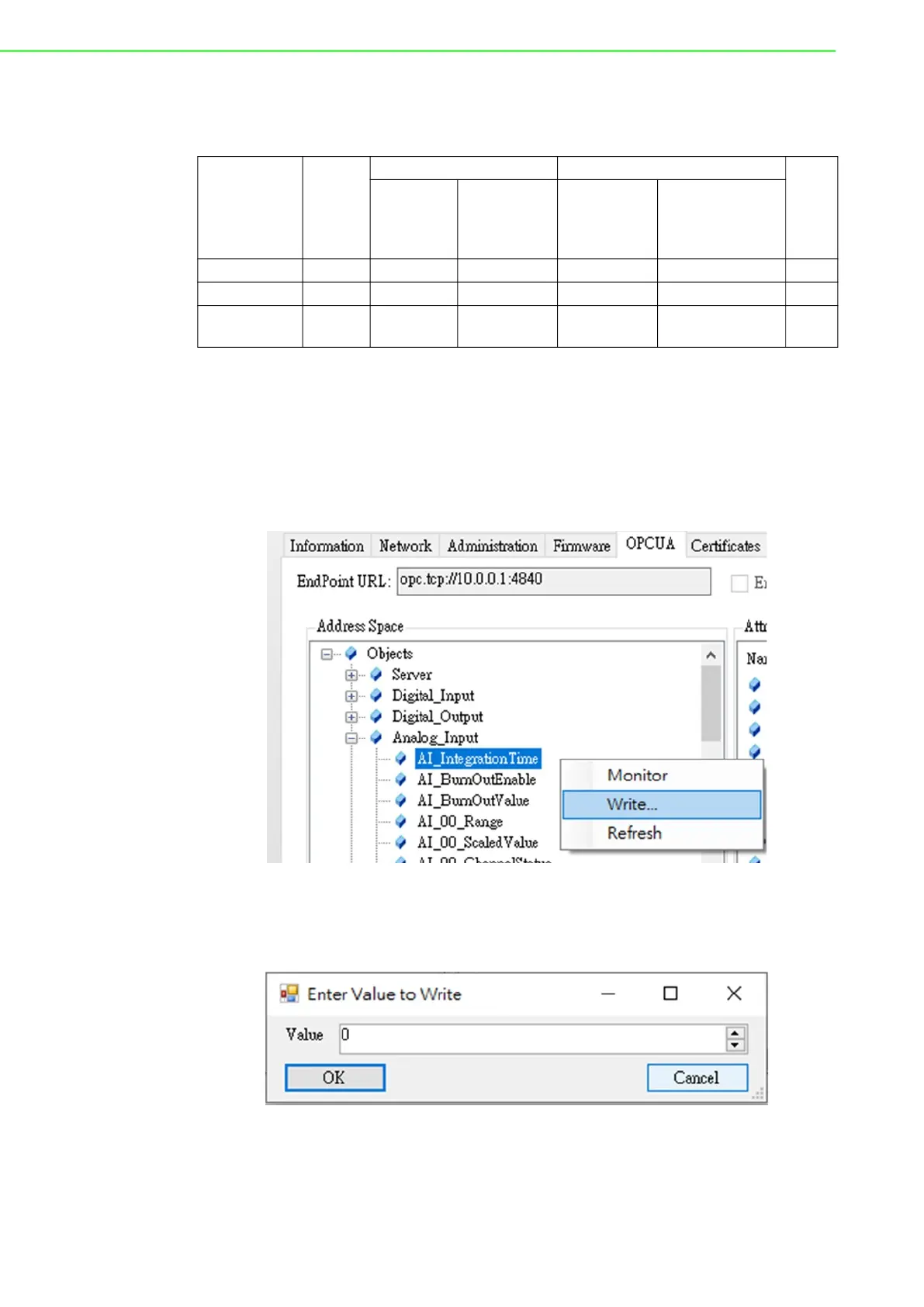

4.6 I/O Configuration
Please see the below table for I/O channel of ADAM-6300 series.
4.6.1 Analog Input
4.6.1.1 All Channel Configuration
1. Integration Time:
To remove noise from the power supply, analog input modules of ADAM-6300
series feature a built-in filter (50 and 60 Hz). Please follow below steps.
A. Select AI_IntegrationTime and right click Write
B. Enter below value to choose 50/60Hz or High speed.
a. 0: 50,60Hz
b. 1: High speed
Model
Analog
Input
Digital Input Digital Output
SSR
Relay
(VDC)
Support DI
mode
Support DI,
counter and
frequency
mode
Support DO
mode
Support DO,
pulse output,
pulse output
continue mode
ADAM-6317 AI0~AI7 DI0~DI4 DI5~DI10 DO0~DO3 DO4~DO9 N/A
ADAM-6350 N/A DI0~DI11 DI12~DI17 DO0~DO11 DO12~DO17 N/A
ADAM-6360D N/A DI0~DI7 DI8~DI13 N/A DO0~DO5
Relay
0~7
