33 ADAM-6300 User Manual
Chapter 4 System Configuration

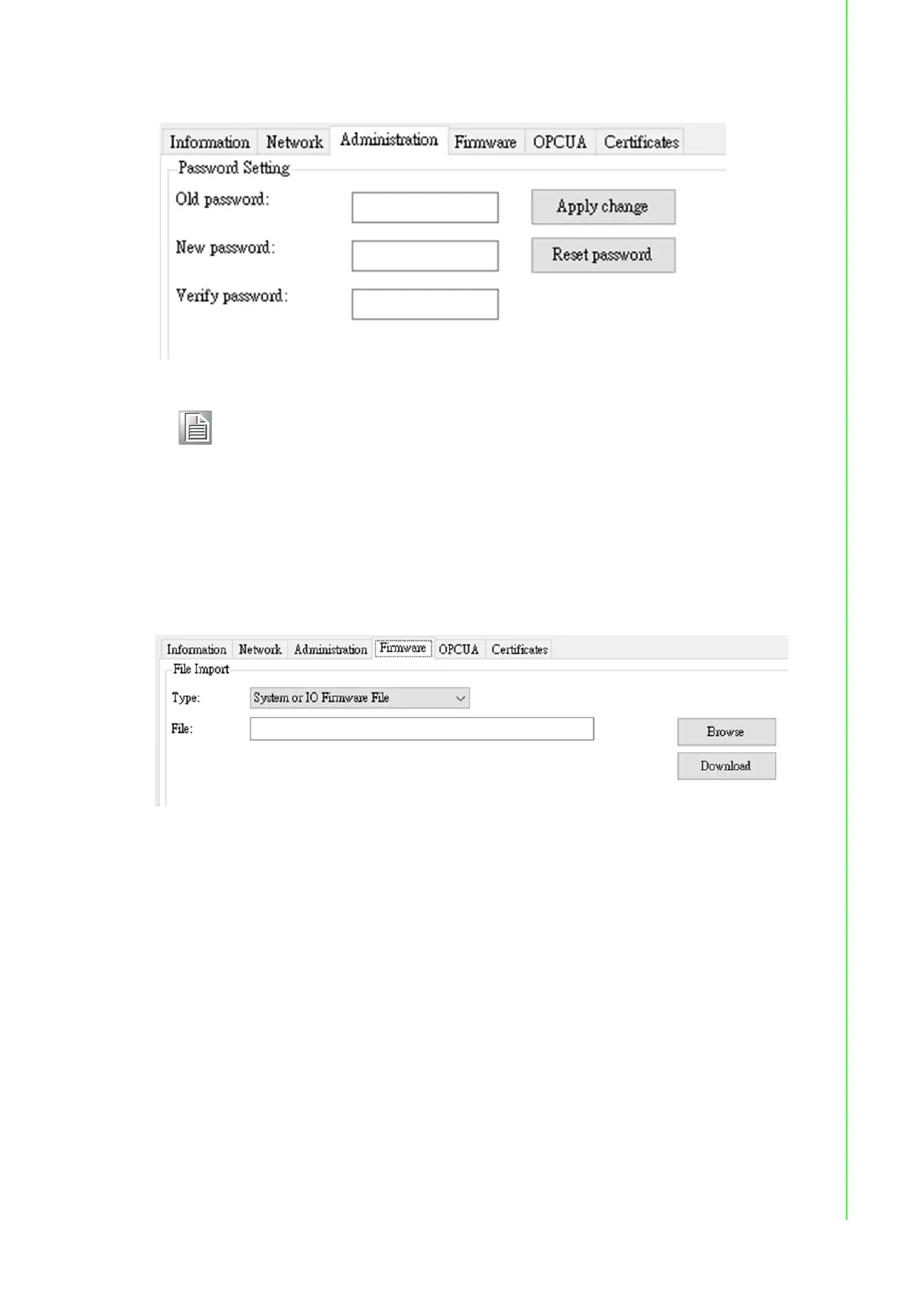

4.4.3 The Administration Tab
The Administration tab allows you to set the password for the selected ADAM-6300
modules. To change the password, you will need to enter the current password in the
Old password box and then enter the new password in the New password and Verify
password boxes. The password is required for many configurations and operations,
so setting your own password can help ensure system security.
4.4.4 The Firmware Tab
Advantech will occasionally release new firmware versions to add or improve the
functionality of ADAM-6300 modules. Visit http://www.advantech.com to check for
the latest firmware downloads. User can download System or IO Firmware file(Bin).
This is where you can import firmware to your ADAM-6000 module. Click Browse to
select the firmware file on your computer. Then, click Download to install the new
firmware on the ADAM-6300 module.
Note! The default password is "00000000".
