ADAM-6300 User Manual 56
3. Frequency mode:
When Frequency is selected, the module will calculate the frequency of the dig-
ital input signal for the selected channel.

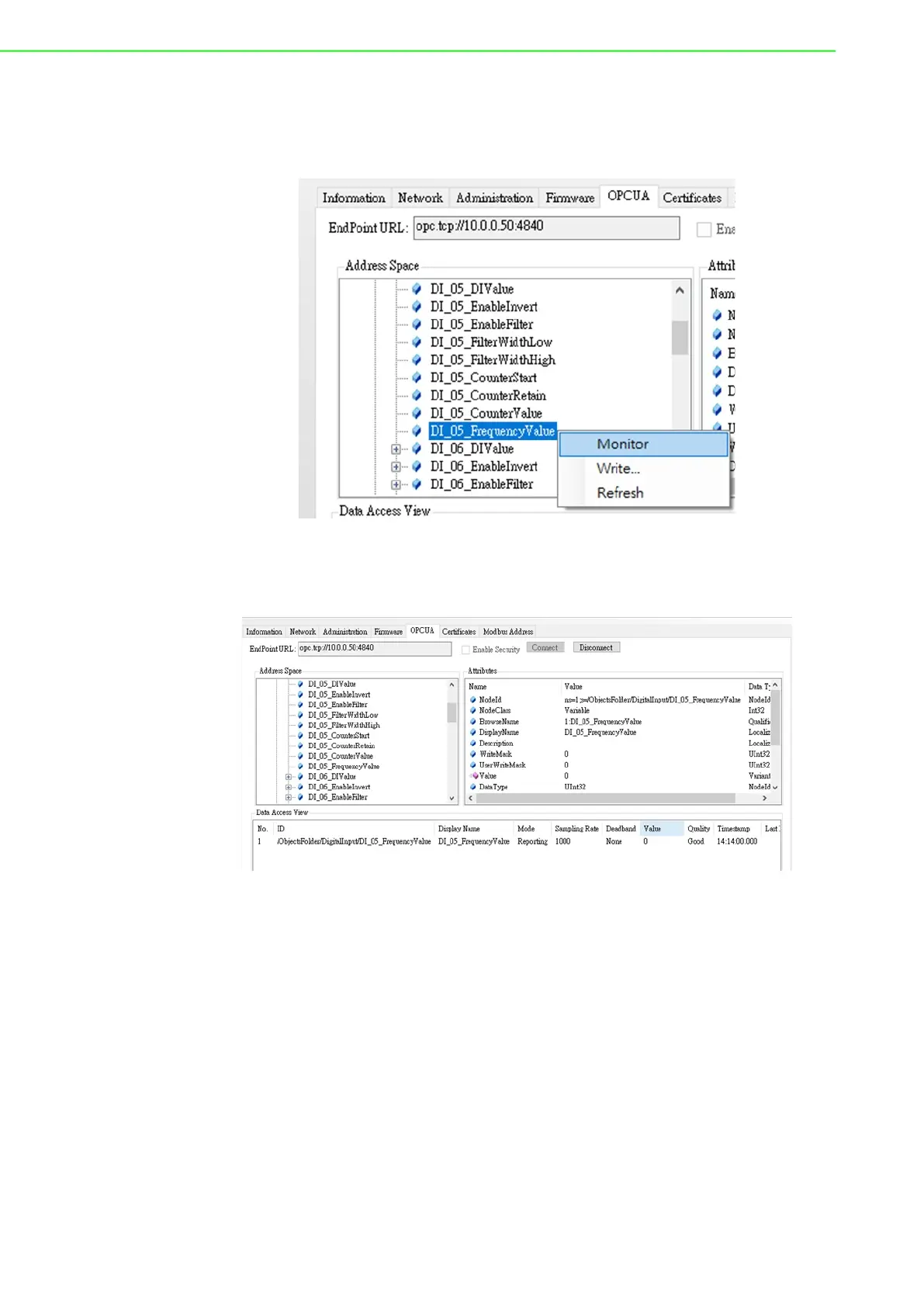

A. Select DI_(channel)_FrequencyValue and right click Monitor
B. The current frequency value of the selected channel will be displayed in the
Value of Attributes of this DI_(channel)_ FrequencyValue in Data Access
View.
C. You can add the nodes of EnableInvert, EnableFilter, FilterWidthLow, Fil-
terWidthHigh functions in Counter mode if user need these functions.
