59 ADAM-6300 User Manual
Chapter 4 System Configuration

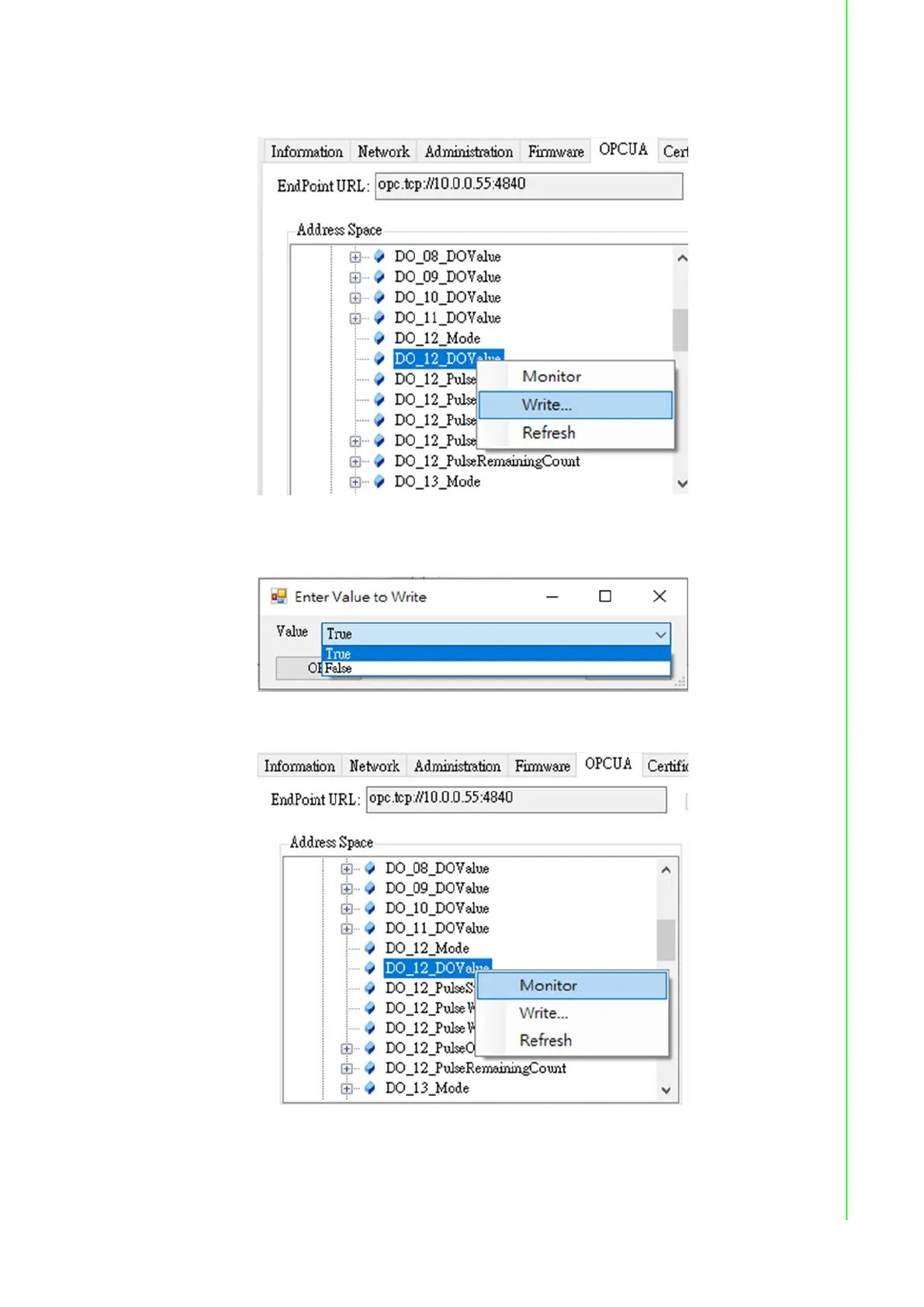

2. DO mode:
A. Select DO_(channel)_DOValue and right click to select Write
B. And select True to turn on the DO. The default setting is false, which means
DO off.
C. Right click to select Monitor to monitor this DO status.
3. Pulse output mode:
Pulse output is for a finite number of pulses. Please follow below steps to imple-
ment pulse out function.
