1.2 System Outlook
1.2.1 FRONT VIEW
At front side, FWA-1112VC ALL SKU features Power button, 2x TypeA USB3.0 port, 1x RJ45
consol port. For 2core/4core SKU, 6xetheret interfaces are ALL RJ45, LED indicator includes
HDD LED, 1
ST
LTE LED, Wifi/2
nd
LTE LED, SW defined 1 LED, SW defined 2 LED. For 8core
SKU, 6xetheret interfaces includes 4xRJ45 and 2x 10G/1G SFP+. LED indicaor includes
HDD LED, 1
ST
LTE LED, Wifi/2
nd
LTE LED, SFP1 LED, SFP2 LED. 1x extra antenna hole has
reserved in the fron side as well.

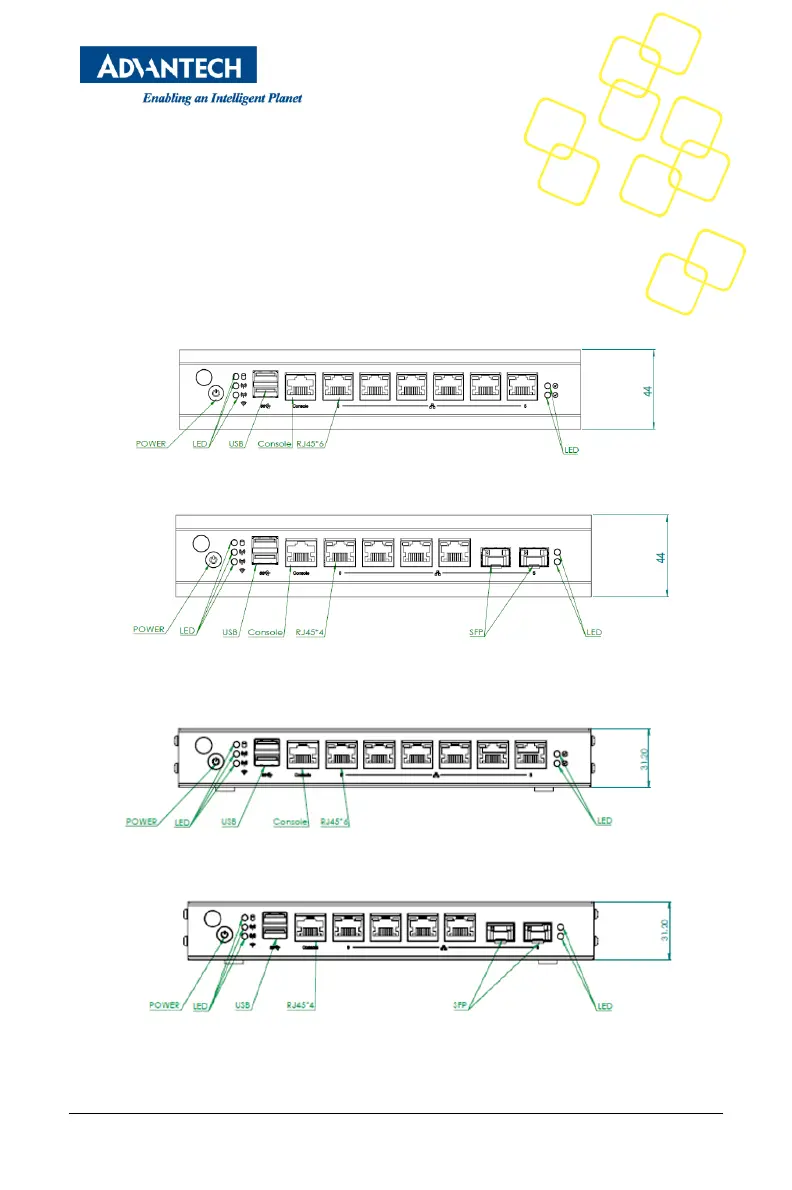

Figure 1 Front View 6xRJ45 (Wide Temp SKU)
Figure 2 Front View 4xRJ45+ 2SFP+ (Wide Temp SKU)
Figure 3 Front View 6xRJ45 (Normal Temp SKU)
Figure 4 Front View 4xRJ45+ 2SFP+ (Normal Temp SKU)
