1.6.3 WIFI
FWA-1112VC features 1x M.2 E-key slot for M.2 3042 Wifi module. Install module as
schematic diagram below :
Wide Temp SKU
Normal Temp SKU

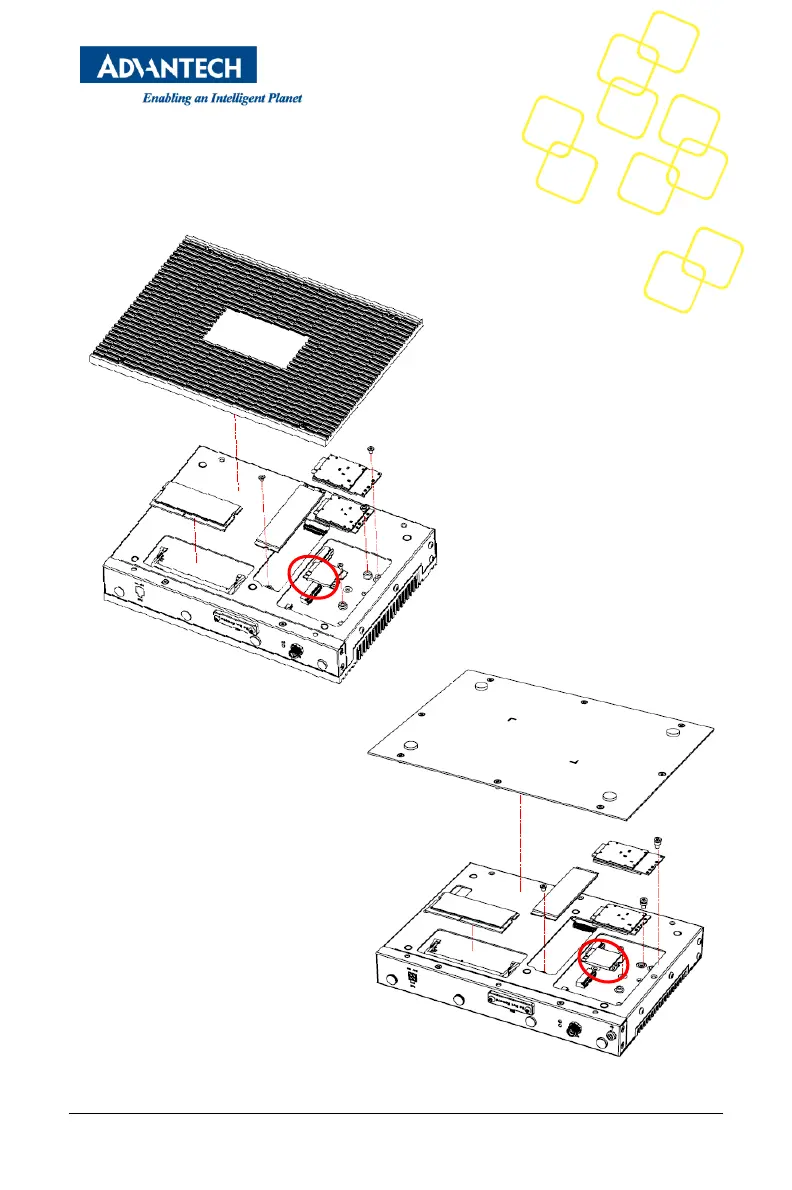

Figure 28 Wifi module Installation
