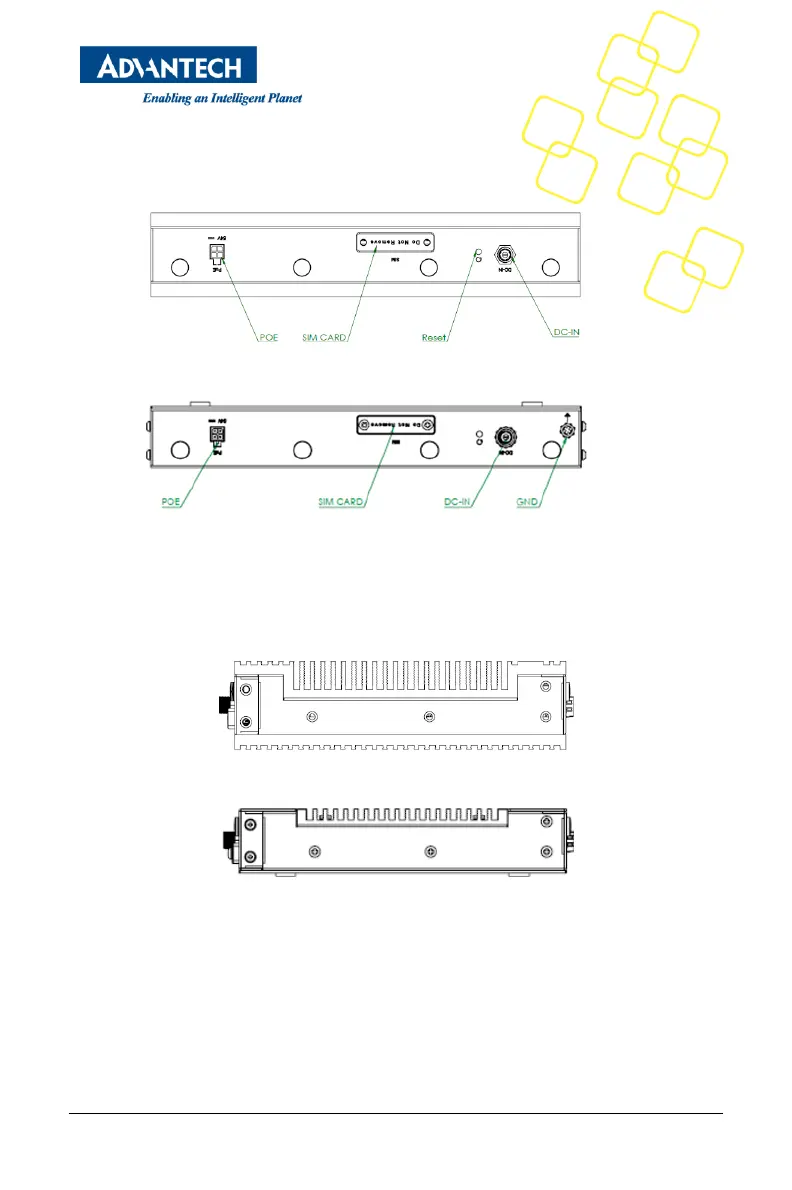

1.2.2 REAR VIEW
At rear side, FWA-1112VC features 12V DC power jack, 1x SW defined/reset button, SIM
slot , and optional PoE power connector.Totally 4x antenna hole has reserved.
Figure 5 Rear View (Wide Temp SKU)
Figure 6 Rear View (Normal Temp SKU)
1.2.3 SIDE VIEW (LEFT)
Figure 7 Side View(LEFT. Wide Temp SKU)
Figure 8 Side View(LEFT. Normal Temp SKU)
