1.8 Mounting Instructions
1.8.1 WALL MOUNT KIT
FWA-1112VC also comes with the wall mount kit. Install wall mount kit as schematic
diagram below :

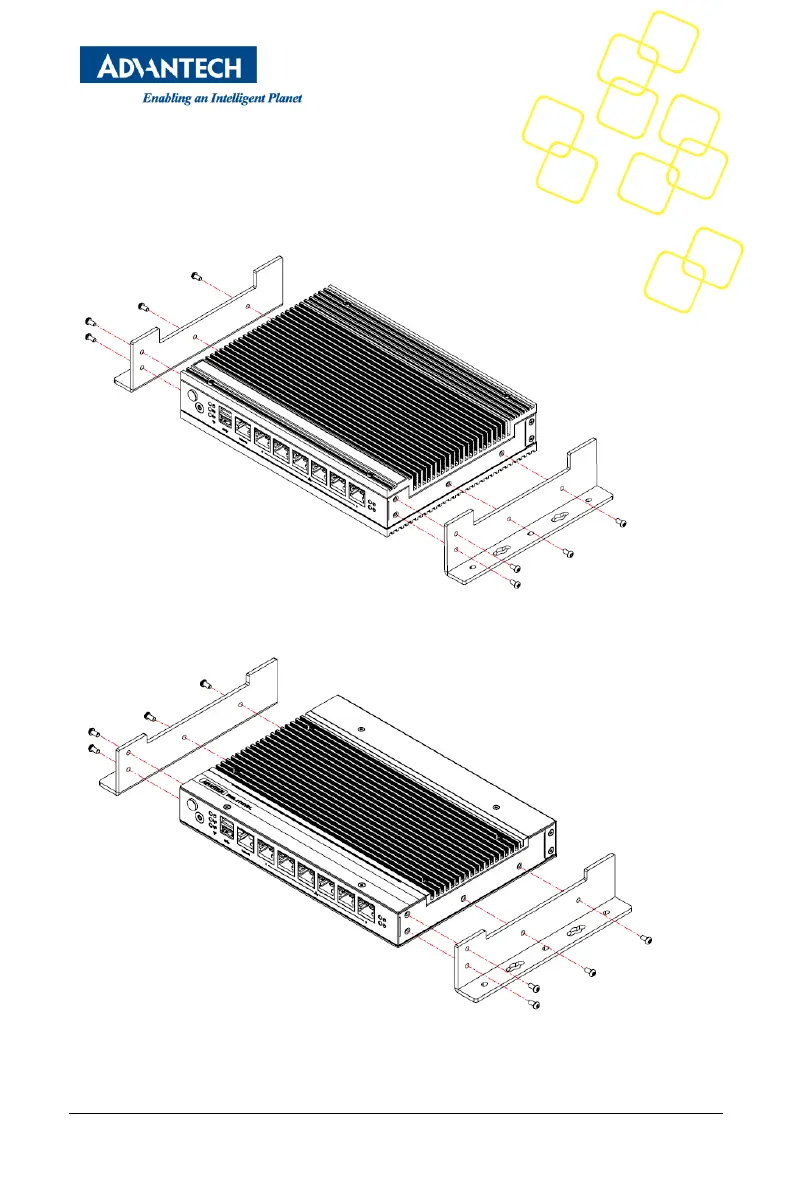

Figure 30 Wall Mounting Kit(Wide Temp SKU)
Figure 31 Wall Mounting Kit(Wide Temp SKU)
